- Page 1 HE101-U Owner’s Manual HDMI 2.0 Ultra HD/4K Cable Repeater PureLink E-mail: info@purelinkav.com 535 East Crescent Avenue www.purelinkav.com Ramsey, NJ 07446, USA Tel: 201.488.3232 For technical support, contact: Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Table Of Contents
Table of Contents 1-1 Package Contents 1-2 General Specification 1-3 Operation and Reliability Specifications 1-4 Main Features 1-5 Operation Guide & Mechanical Specification 1-6 Warranty Information Manual version Release date 1/16/2017... -
Page 3: Package Contents

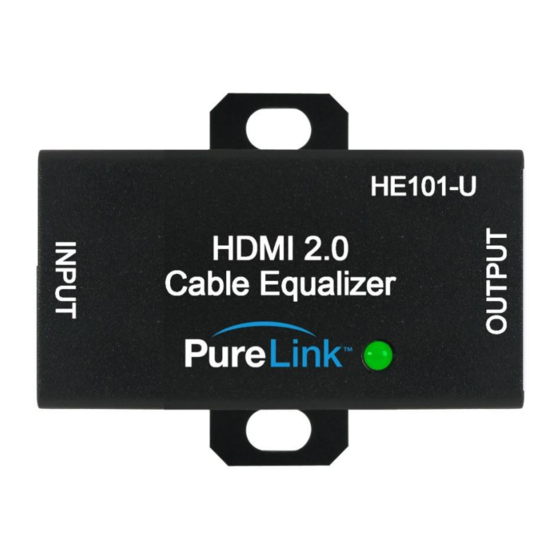

This manual contains information that will assist you in installing and operating the product. PureLink HE101-U is a HDMI cable repeater that actively monitors incoming HDMI signal to compensate for signal loss when using a long HDMI cable, lower quality HDMI cable, or source device with poor HDMI signal output. - Page 4 PureLink by Dtrovision Multi-channel Audio Yes, Pass thru HDR support Yes, Pass thru CEC support Yes, Pass thru EDID Pass thru HDMI (via HDMI pin# 18) or Micro USB DC +5V , 2A, Max 10W Power * Micro USB is an optional, does not come with the unit Dimension (WxDxH) 1.1”...
-
Page 5: Operation And Reliability Specification
PureLink by Dtrovision 1-3 Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 104F (0℃~ 40℃) Humidity : 20% ~ 90% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 6: Main Features
Range extension up to 33 ft (10 m) for 4K60Hz 4:4:4 Ultra HDTV resolution, (5 m on the input to the HE101-U and 5 m on the output) Range extension up to 66 ft (20 m) for 4K60Hz 4:2:0 Ultra HDTV resolution, (10 m on the input to the HE101-U and 10 m on the output) ... - Page 7 4K60 4:4:4 4K60 4:2:0 4K30 4:4:4 20m< 20m< 1080P 20m< 20m< 720P 20m< 20m< 1024x768 20m< 20m< * To achieve signal travel distance shown in above table, PureLink recommends the use of PureLink’s HDMI cables (PI, ULS, and PLH series)
- Page 8 PureLink or its authorized resellers. If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and expense, execute one of the following as necessary: 1. Repair the defective product or part 2.
