PureLink HOF III User Manual v1.2
4K60 HDMI over Optical Fiber
Extender with Audio Extractio n
PureLink™
22-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail: sales@purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at support@purelinkav.com.
Advertisement
Related Manuals for PureLink HOF III
Summary of Contents for PureLink HOF III

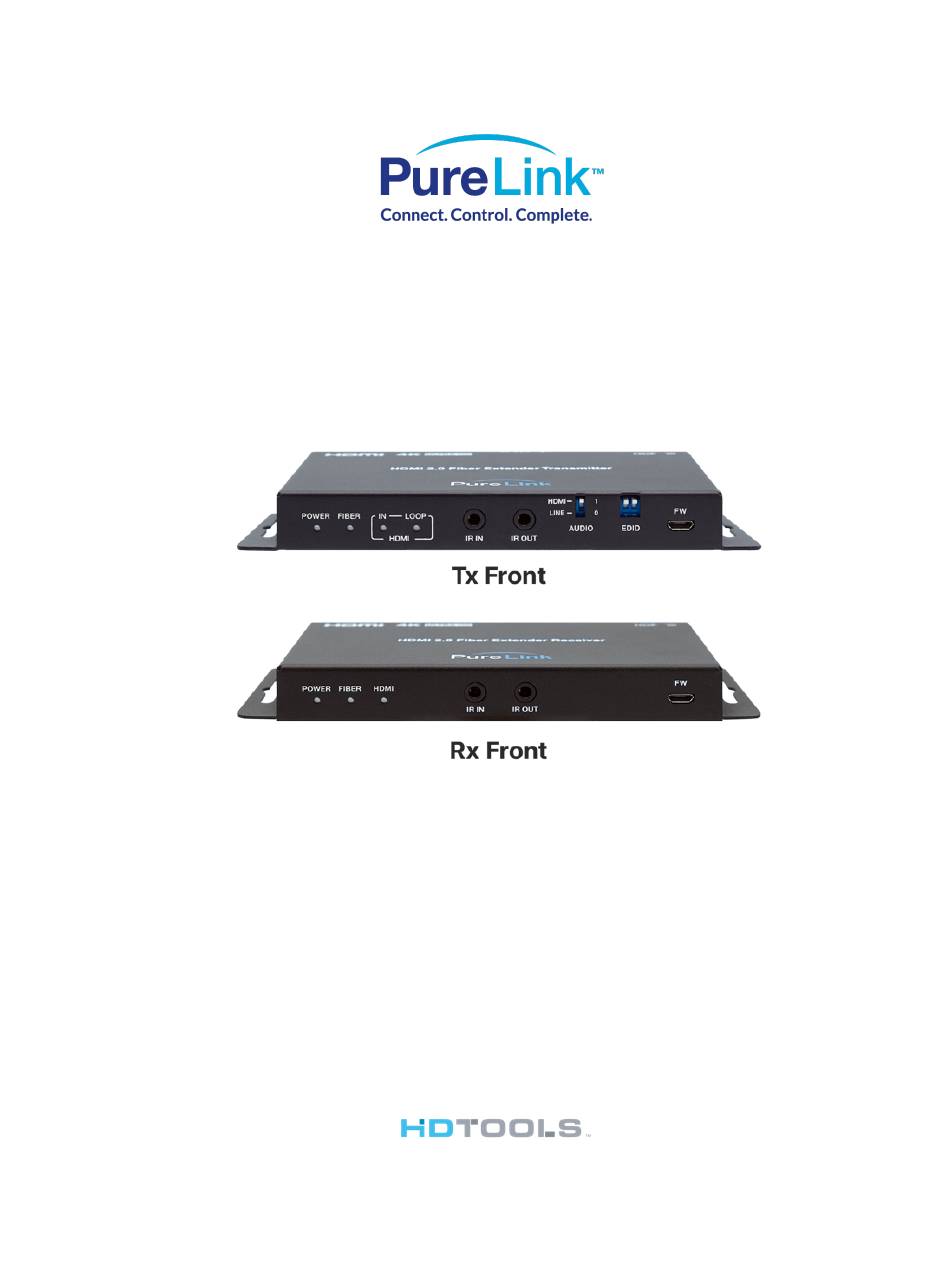

- Page 1 PureLink HOF III User Manual v1.2 4K60 HDMI over Optical Fiber Extender with Audio Extractio n PureLink™ 22-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer.
- Page 2 PureLink HOF III User Manual v1.2 Table of Contents Introduction .................. 1 Features ..................1 Package Contents ................ 2 Specifications ................2 Operation Controls and Functions ..........4 5.1. Transmitter Panel ..............4 5.2. Receiver Panel ..............6 5.3. IR Pin Definition ..............7 Application Example ..............
- Page 3 PureLink HOF III User Manual v1.2 Introduction This HOF III 4K60 Fiber Extender can extend HDMI signal up to 33000 feet (10 km) (over single-mode fiber cable). It supports video resolution up to 4K2K@60Hz 4:4:4. The transmitter supports loop output, audio embedding and EDID management function.
- Page 4 PureLink HOF III User Manual v1.2 Package Contents ① 1× 18Gbps HDMI over Optical Fiber Extender (Transmitter) ② 1× 18Gbps HDMI over Optical Fiber Extender (Receiver) ③ 1× IR Blaster cable (1.5 meters) ④ 1× IR Receiver cable (1.5 meters) ⑤...
- Page 5 PureLink HOF III User Manual v1.2 Input: 1 x Optical Fiber In [LC female] 1 x IR IN [3.5mm Stereo Mini-jack] 1 x SERVICE [Micro USB, Update port] Receiver Output: 1 x HDMI OUT [Type A 19-pin female] 1 x RS-232 [3.81mm Phoenix connector] 1 x IR OUT [3.5mm Stereo Mini-jack]...
- Page 6 PureLink HOF III User Manual v1.2 Operation Controls and Functions Transmitter Panel Name Function Description The power indicator is always on when the Transmitter is 1 Power LED powered on. The optical fiber connection indicator is always on when the...
- Page 7 PureLink HOF III User Manual v1.2 DC 5V/1A power supply port 9 DC 5V Connect the Transmitter optical fiber module, and 10 FIBER transmit signals to the Receiver via an optical fiber cable. HDMI video loop output port, connect to HDMI display 11 HDMI OUT device such as TV or Projector with an HDMI cable.
- Page 8 PureLink HOF III User Manual v1.2 Receiver Panel Name Function Description The power indicator is always on when the Receiver is 1 Power LED powered on. The optical fiber connection indicator is always on when the FIBER LED Transmitter and Receiver establish a normal optical fiber signal connection.
- Page 9 PureLink HOF III User Manual v1.2 IR Pin Definition IR Receiver and Blaster pin’s definition as below: 5.3 Optical Fiber Module ① SFP-BL32TG-10DC is the optical fiber module of the Transmitter. ② SFP-BL23TG-10DC is the optical fiber module of the Receiver.
- Page 10 PureLink HOF III User Manual v1.2 Application Example...
- Page 11 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. If you have further questions, please contact your PureLink dealer, call PureLink at 201-488-3232, or visit www.purelinkav.com...
- Page 12 Product or the failure of Product to perform, including incidental or consequential damages. PureLink shall not be liable for any claim made by a third party or made by the purchaser for a third party. Except as expressly set forth in this warranty, PureLink makes no other warranties, expressed or implied, including any implied warranties of merchantability and fitness for a particular purpose.
- Page 13 Any warranty service on Products must be arranged through Dealer. Authorized returns must be shipped freight prepaid and fully insured to PureLink, Fair Lawn, NJ USA, with the RMA number clearly marked on the outside of all shipping boxes and containers. PureLink reserves the right at its sole discretion to refuse any shipments arriving freight collect or without an RMA number.
- Page 14 Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
