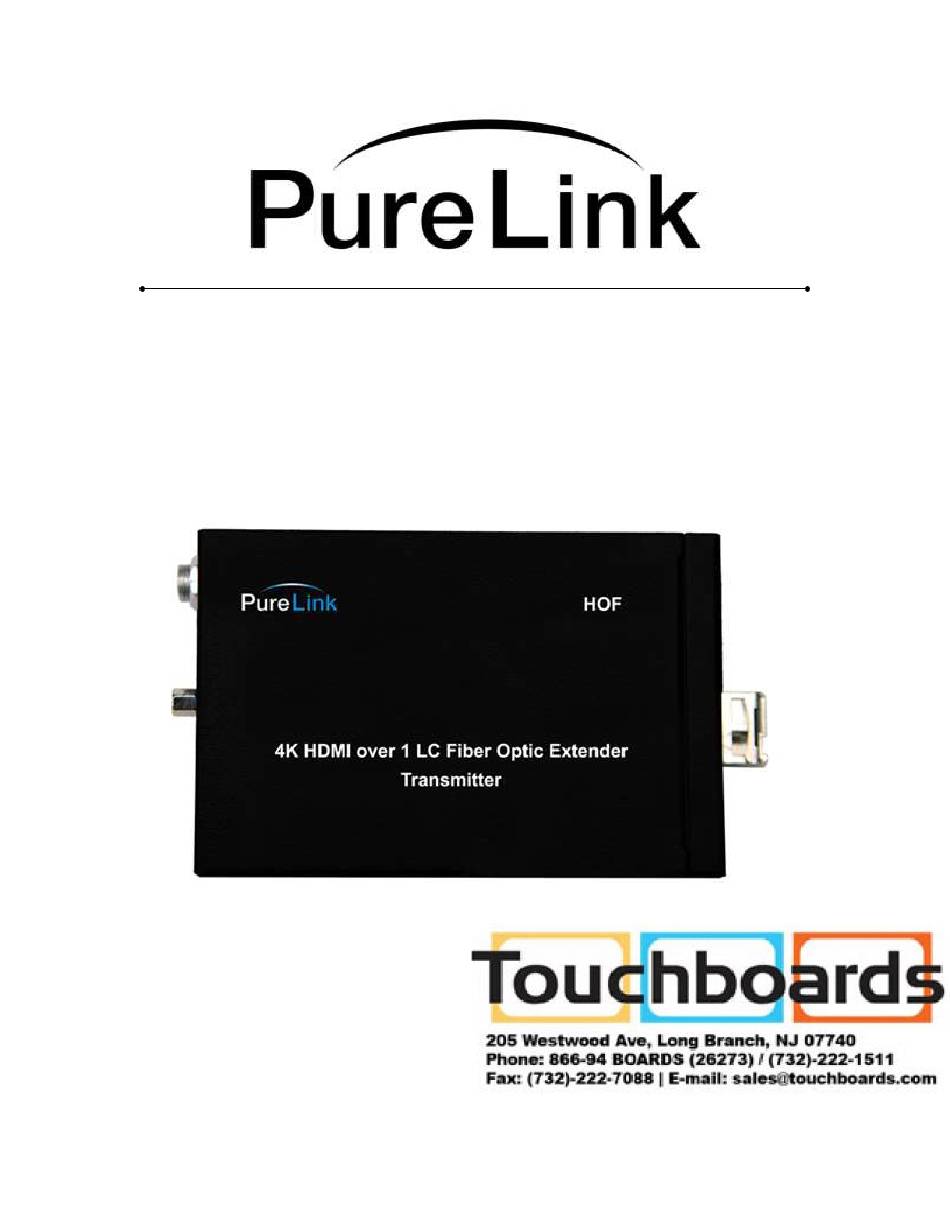

- Page 1 HOF1 Owner’s Manual Modular Fiber Optic 4K HDMI Extender E MAIL : sales@purelinkav.com PURELINK www.purelinkav.com 535 E CRECENT AVE RAMSEY, NJ, 07446 For technical support, contact: Tel: 201.488.3232 support@purelinkav.com Fax: 201.621.6118...
-
Page 2: Package Contents
Package Contents Please make sure all of the following items are included in the package: 1) 1 x HOF1 Fiber Optic Transmitter Module 2) 1 x HOF1 Fiber Optic Receiver Module 3) 2 x IR Cables (Tx and Rx) 4) 2 x DC 5V Power Supply Unit... -
Page 3: General Specification
PureLink by Dtrovision General Specification HOF1 is a 4K HDMI extension system over pure fiber optic cable for long distance up to 3,300 ft (1,000 m). Compact & durable design and low power consumption makes it an ideal solution for connection for high definition video/audio signal of digital displays such as LCD/Plasma displays and projectors. -
Page 4: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 5: Main Features
HDMI video and audio signals over long distance 4. Built-in signal repeater to support longer distance between the source and the H OF1 transmitter & HOF1 receiver and the display. This Signal Repeater logic supp orts up to 30ft copper based HDMI cables. -
Page 6: Installation And Connection Instructions
Installation and Connection Instructions 1. Turn off both the video source and the display before connecting any cables. 2. Connect HDMI cable between the source and HOF1 transmitter AND between th e HOF1 receiver and the display. 3. Connect LC terminated fiber optic cables according to the picture below;... - Page 7 PureLink by Dtrovision HOF1 Transmitter and Receiver Specification Transmitter Module Connection Ports; HDMI In: HDMI Input DC 5V: power connector Power: power LED indicator RS232: 3 pins phoenix connector Optical : Fiber status LED indicator HDMI : HDMI status LED indicator...
- Page 8 PureLink by Dtrovision Receiver Module Connection Ports; HDMI Out: HDMI Output DC 5V: power connector Power: power LED indicator RS232: 3 pins phoenix connector Optical : Fiber status LED indicator HDMI : HDMI status LED indicator Optical In: Optical input receptacle...
- Page 9 PureLink by Dtrovision Application Example...
-
Page 10: Warranty
Warranty Manufacturer’s Warranty (3-Years) PureLink warrants this HOF1 fiber optic extender to be free from defects in workmanship and materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or its authorized resellers.
