H3C-100-ARC V1.3
H3C-100-ARC

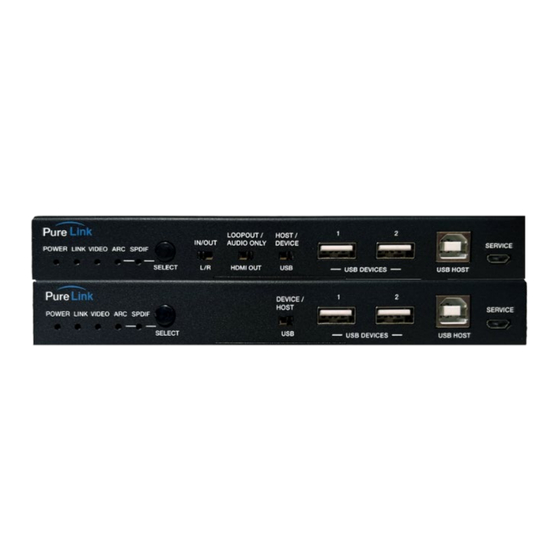

HDBaseT 3.0 4K60 CAT HDMI Ex tender with ARC
PureLink™
220-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PureLink H3C-100-ARC
Summary of Contents for PureLink H3C-100-ARC
- Page 1 H3C-100-ARC V1.3 H3C-100-ARC HDBaseT 3.0 4K60 CAT HDMI Ex tender with ARC PureLink™ 220-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
-
Page 2: Table Of Contents
H3C-100-ARC V1.3 Contents Introduction ............................3 Features.............................3 Package Contents ..........................3 Specifications .............................4 Operation Controls and Functions .......................5 Transmiter Panel ........................... 5 Receiver Panel ..........................6 Input and Output Switching.........................7 Audio Embedding and De-Embedding ....................9 USB Mode Applications ........................9 IR Pin Definition..........................10 Application Example ......................... -
Page 3: Introduction
H3C-100-ARC V1.3 Introduc�on HDBaseT 3.0 Extender can extend uncompressed UHD video and audio signals, eARC/ARC, RS-232, bi- direc�onal IR, 1GbE Ethernet and USB 2.0 signals up to 100m (328�) via a single CAT6A/7 Features • HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth •... -
Page 4: Specifications
H3C-100-ARC V1.3 Specifica�ons Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 HDBaseT 16Gbps on main and 2Gbps on return link Bandwidth HDR, HDR10, HDR10+, Dolby Vision, HLG Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0... -
Page 5: Operation Controls And Functions
H3C-100-ARC V1.3 Opera�on Controls and Func�ons Transmiter Panel Name Function Description Power LED Red LED indicates that the Transmitter is powered on. ▪ Light on: Transmitter and Receiver are in good connection status. LINK LED ▪ Light flashing: Transmitter and Receiver are in Low Power Mode. -
Page 6: Receiver Panel
H3C-100-ARC V1.3 Receiver Panel Name Function Description Power LED Red LED indicates that the Receiver is powered on. ▪ Light on: Transmitter and Receiver are in good connection status. ▪ Light flashing: Transmitter and Receiver are in Low Power Mode. -
Page 7: Input And Output Switching
H3C-100-ARC V1.3 Input and Output Switching The extender can switch to ARC/SPDIF mode by pressing the SELECT buton on the front of the panel of both the transmiter and receiver. The HDMI OUT port of the transmiter can turn to LOOP OUT or AUDIO ONLY through the LOOP OUT/AUDIO ONLY switch. - Page 8 H3C-100-ARC V1.3 Scene 4: Set the Extender to ARC Mode. Then switch the LOOP OUT/ AUDIO ONLY switch to le�, the HDMI OUT port of the transmiter is set to LOOP OUT. Scene 5: Set the Extender to eARC Mode. Then switch the LOOP OUT/ AUDIO ONLY switch to right, the HDMI OUT port of the transmiter is set to AUDIO ONLY.
-
Page 9: Audio Embedding And De-Embedding
H3C-100-ARC V1.3 Audio Embedding and De-Embedding The transmiter supports both audio embedding and de-embedding. The L/R IN/OUT PORT can be used for audio embedding or de-embedding via the L/R IN/OUT switch. TX Audio Embedding • When the L/R IN/OUT switch is switched to le�, the audio from external audio device will be embedded to the L/R IN/OUT port. -
Page 10: Ir Pin Definition
H3C-100-ARC V1.3 Mode 2: USB reverse from RX to TX Switch the HOST/DEVICE USB switch to right, then power off and reboot the transmiter to set to USB Device mode. Meanwhile, switch the DEVICE/HOST USB switch to right, then power off and reboot the receiver to set to USB Host mode. -
Page 11: Application Example
H3C-100-ARC V1.3 Applica�on Example H3C-100-ARC Tx H3C-100-ARC Rx... -
Page 12: Warranty
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 13 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
