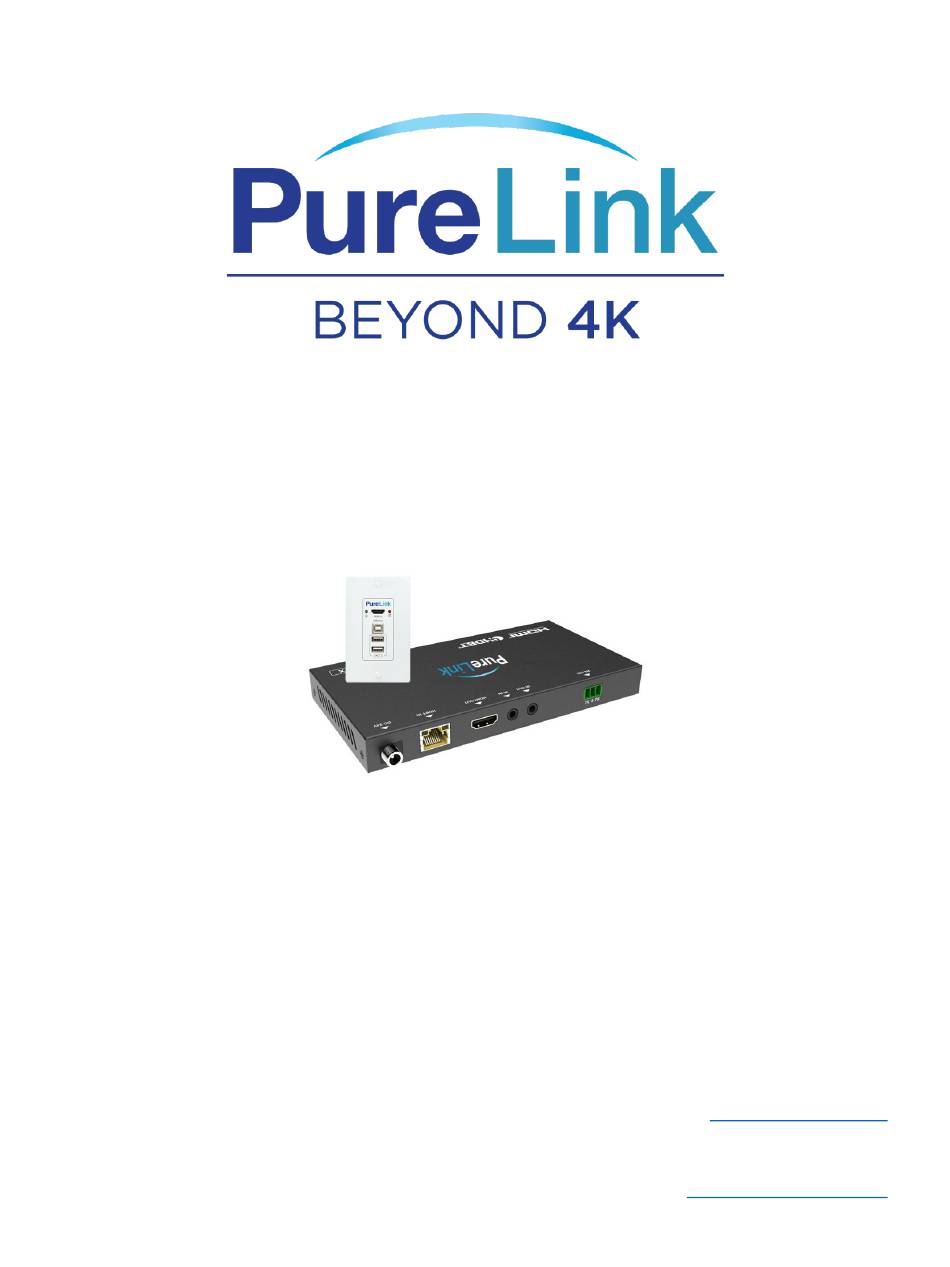

Purelink HW-100 User Manual V1.1
HW-100
4K and USB 2.0 Wall Plate Extender Switching System
PureLink™
220-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PureLink HW-100
Summary of Contents for PureLink HW-100
- Page 1 Purelink HW-100 User Manual V1.1 HW-100 4K and USB 2.0 Wall Plate Extender Switching System PureLink™ 220-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
-
Page 2: Table Of Contents
Purelink HW-100 User Manual V1.1 Contents Introduction ..............................3 Features ..............................3 Specifications ............................4 Product Description ..........................5 Transmitter Panel............................5 Receiver Panel ............................6 Warranty ............................... 7... -
Page 3: Introduction
Purelink HW-100 User Manual V1.1 Introduction Features • HDMI and USB inputs on a single-gang wall plate • HDBaseT 2.0 • Extends 4K60 (4:2:0) video up to 130ft (40 meters) • Extends 1080p videos up to 230ft (70 meters) •... -
Page 4: Specifications
Purelink HW-100 User Manual V1.1 Specifications Transmitter Ports: HDMI In (x1) USB Type-B (x1) USB Type-A charge ports (x2) HDBaseT OUT RJ45 (x1) RS-232 (screw terminal) (x1) HDBaseT (RJ45) (x1) Max Video Resolution: 1080P 230 feet/70 meters 4Kx2K@60Hz 4:2:0 or 4Kx2K@30Hz 4:4:4 (40m) Dimensions: 4.13”... -
Page 5: Product Description
Purelink HW-100 User Manual V1.1 Product Description The HW-100 HDBaseT extender system provides up to 130 feet of 4K60 (4:2:0) or 4K30 4:4:4 and USB 1.1/2.0. The HW-100 can also extend 1080P60 4:4:4 up to 230 feet (70 meters). There are two USB-A ports on the transmitter that provide charging only functionality. -
Page 6: Receiver Panel
Purelink HW-100 User Manual V1.1 Receiver Panel 1. DC 24V: DC 24V power supply port 2. HDBT In: Connect to the HDBaseT OUT port 3. HDMI Out: HDMI outport port, connect to HDMI display device 4. IR IN: **Future Feature 5. -
Page 7: Warranty
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 8 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
