Purelink HCE II User Manual V2.1
HCE II Owner's Manual
HDMI, and IR Extender over HDBaseT
with 3D, 4K Support
PureLink™
22-10 State Route 208
For order support, please contact your local
Fair Lawn, NJ 07410 USA
dealer.
Tel: +1.201.488.3232
For technical support, please contact us at
Fax: +1.201.621.6118
support@purelinkav.com.
E-mail:
sales@purelinkav.com
1
Advertisement
Related Manuals for PureLink HCE II
Summary of Contents for PureLink HCE II

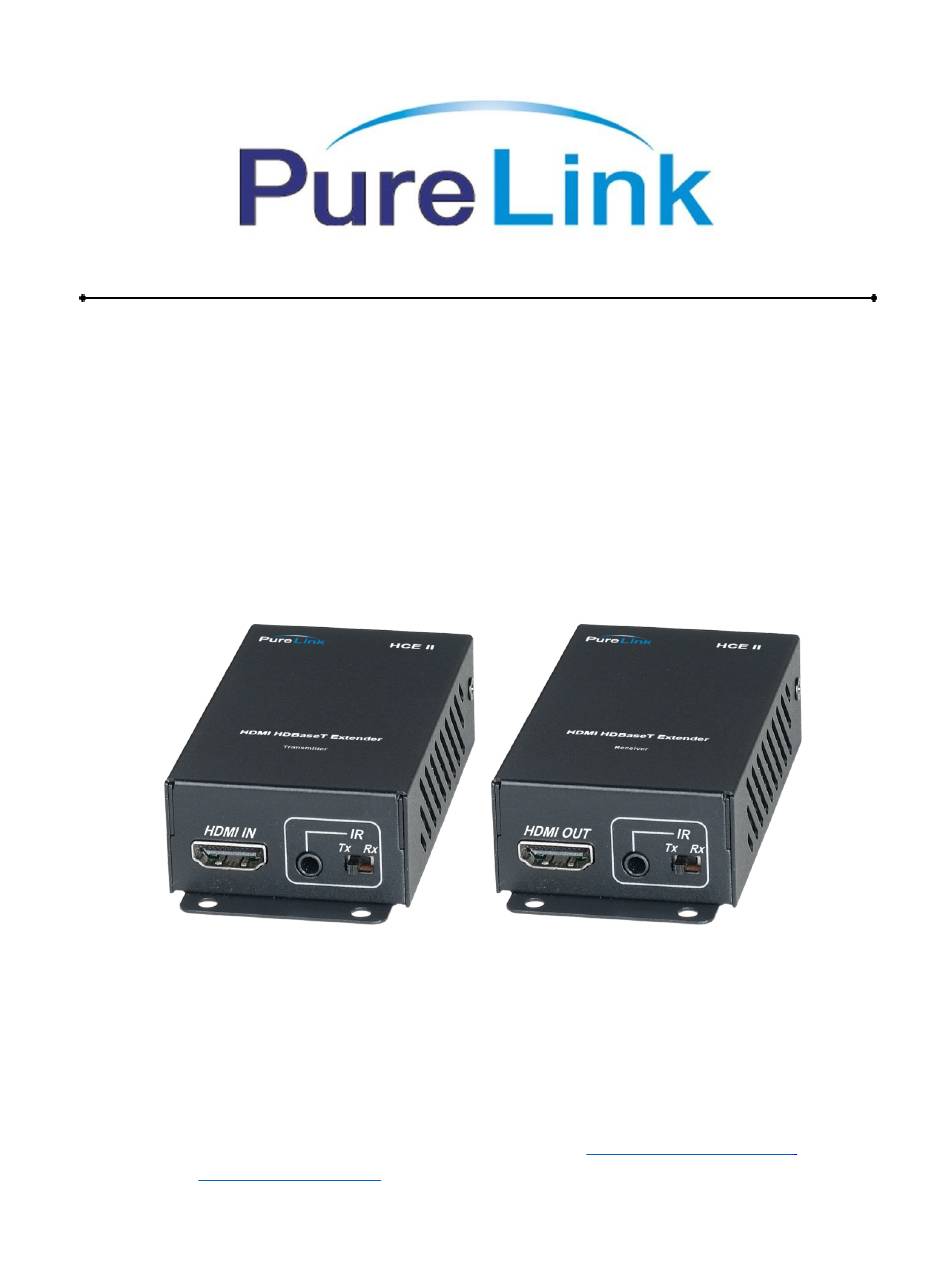

- Page 1 Purelink HCE II User Manual V2.1 HCE II Owner’s Manual HDMI, and IR Extender over HDBaseT with 3D, 4K Support PureLink™ 22-10 State Route 208 For order support, please contact your local Fair Lawn, NJ 07410 USA dealer. Tel: +1.201.488.3232 For technical support, please contact us at Fax: +1.201.621.6118...
-
Page 2: Package Contents
● 1 x User Manual Description The PureLink HCE II is a transmitter and receiver set for long distance extension of HDMI video and embedded audio with bi-directional control signal (IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which allows full 3D support with up to 230ft (70m) at 1080P@60Hz, and 130ft (40m) at 4K2K (UHD) resolution. - Page 3 PureLink by Dtrovision ● Zero loss & Zero noise delivery of digital high definition video and audio signal using UTP connection, HCE II delivers HD signals over CAT5/6/7-type cables without loss or digital interference maintaining the clarity and colors. Noise cancellation and error correction logic enhances HDMI video and audio signals over long distance.
- Page 4 PureLink by Dtrovision Weight 0.61lbs (0.28Kg) each *Please use CAT6a/CAT7 cable for maximum distance transmission. * Travel Range Specification Cable Type Range Pixel clock rate Video Data Rate Supported Video CAT5e/CAT6 60 m <= 225 MHz <= 5.3 Gbps Up to 1080p, 60Hz, 36bpp (Data (HD Video) rates lower than 5.3 Gbps or...
-
Page 5: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 131F (0℃~ 55℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 6: Installation And Connection Instructions
1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the HCE II transmitter and the HCE II receiver. 3. Connect HDMI cable between the source and the HCE II transmitter AND the HCE II receiver and the display. -
Page 7: Transmission Distance
HCE II was designed to conform to TIA/EIA-568-B standard. Please ensure that each PIN layout of HCE II transmitter and HCE II receiver are corresponding with the picture below before connecting the cable. Please note that CAT5e or above level cable enables to deliver better video quality and longer distance. - Page 8 HCE II Transmitter and Receiver Specification [ HCE II Transmitter ] Module Dimensions: 1.93x3.6x0.98 ( inches) | 48.6 x 92.3 x24.8 (mm) Connection Ports: HDMI IN: HDMI Input RJ-45(CAT) receptacle 5V DC Power Supply Unit Input Green LED: Power On/Off Indication...
- Page 9 [ HCE II Receiver ] Module Dimensions: 1.93x3.6x0.98 ( inches) | 48.6 x 92.3 x24.8 (mm) Connection Ports: HDMI OUT: HDMI Output RJ-45 (CAT) receptacle 5V DC Power Supply Unit Input Green LED: Power On/Off Indication Blue LED: IR Receive...
- Page 10 IR Information - IR Blaster is always on the end point (display) - The unit that will be connected to the IR blaster should be on TX dip switch mode. - The other unit with IR receiver connected should be on RX dip switch mode. - Use the remote control of the end point device facing the IR receiver.
-
Page 11: Technical Specification
PureLink by Dtrovision Technical Specification Frequency Range: 25 ~ 165 MHz Supporting Resolutions: Up to 4K2K / 30Hz / 48 bit I/O Signal Standard: HDMI 1.4 Max Distance: Max 230ft (70m) at 1080P@60Hz / Max 230ft (70m) at 1920x1200@60Hz /... -
Page 12: Warranty
You may also have other rights which vary from state to state. TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use... -
Page 13: Customer Service
To make a warranty claim, promptly notify PureLink within the warranty periods described above by calling PureLink’s Technical Support Department at 1-201-488-3232. PureLink, in its sole discretion, will determine what action, if any, is required under this warranty. Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. - Page 14 PureLink by Dtrovision Caution The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines. This device is not network equipment, do not connect with Network to avoid damage.
-
Page 15: Fcc/Ce Statement
PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
