DTS50R/DRS50R
Stand Alone DVI CAT5 Extension System
DVI + Stereo Audio + RS-232 + IR over two CAT5
Owner's Manual
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
Email: support@dtrovision.com
www.dtrovision.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@dtrovision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureLink DTS50R and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PureLink DTS50R

Summary of Contents for PureLink PureLink DTS50R

  • Page 1 DTS50R/DRS50R Stand Alone DVI CAT5 Extension System DVI + Stereo Audio + RS-232 + IR over two CAT5 Owner’s Manual Dtrovision LLC 9A Bergen Turnpike Little Ferry, NJ 07643 Tel: +1.201.488.3232 Fax: +1.201.621.6118 Email: support@dtrovision.com www.dtrovision.com For order support, please contact your local dealer.
  • Page 2 DTS50R/DRS50R Package Contents Please make sure all of the following items are included in the package; 1) DTS50R/DRS50R x1 2) DC 12V Power Supply Unit with a power cord x1 3) User Manual DTS50R: DVI CAT5 Transmitter Module DRS50R: DVI CAT5 Receiver Module...

  • Page 3: General Specification

    General Specification • DTS50R/DRS50R is a DVI, stereo audio, RS-232, IR extension system over two CAT5 cables for long distance up to 165ft. • Compact & durable design and lower power consumption makes it an ideal solution for connection for high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and projectors.
  • Page 4 Model DTS50R/DRS50R Input Signal DVI, 3.5mm Analog Audio, RS-232, IR Output Signal DVI, 3.5mm Analog Audio, RS-232, IR Supporting Display VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) , Resolutions 480i ~ 1080p 1920x1200 @ 60Hz or at 1080p: 50M(165ft) Max.

  • Page 5: Operation And Reliability Specification

    Operation and Reliability Specification 1. Operating Environment Temperature: 50F ~ 104F (10℃~ 40℃) Humidity: 10% ~ 80% Altitude: 3,000m Max. 2. Transit Environment Temperature: -13F ~ 140F (-25℃~ 60℃) Humidity: 5% ~ 95% Altitude: 15,000m Max. 3. Storage Environment Temperature: -4F ~ -49F (-20℃~ 45℃) Humidity: 5% ~ 95% Altitude: 3,000m Max.

  • Page 6: Main Features

    Main Features 1. Zero loss & Zero noise delivery of digital high definition video and audio signal using CAT5 conversion technology, DTS50R/DRS50R delivers HD signals over Cat5 cables without loss or digital interference maintaining the clarity and colors. Noise cancellation and error correction logic enhances video and audio signals over long distance.

  • Page 7: Installation And Connection Instructions

    Installation and Connection Instructions 1. Turn off both the video source and the display before connecting any cables. 2. Connect DVI, 3.5mm stereo audio, RS-232 and IR cables between the source and DTS50R AND between the DRS50R and the display. 3.
  • Page 8 4. Connect the power supply unit to both DTS50R AND the DRS50R units. 5. Turn on Display 6. Turn on Video Source Cable Termination IR cable DTS50R/DRS50R supports both 5V and 12V and it can be selected by IR voltage switch on the side of the unit.
  • Page 9 DTS50R/DRS50R Specification Dimensions: 4.3x3.1x1.6(inches) 110x78x40(mm) DTS50R: Transmitter Module DRS50R: Receiver Module...

  • Page 10: Operating Instruction

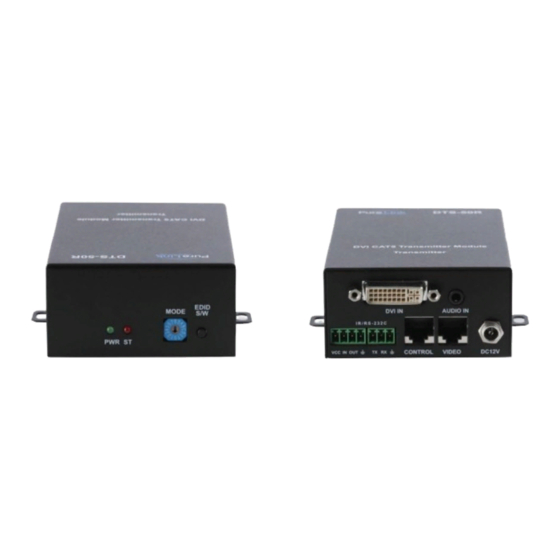

    Front Panel: PWR: Power LED indicator ST: Status LED indicator MODE: EDID library rotary switch EDID S/W: EDID save button Side Panel: IR voltage: 5V / 12V select switch Rear Panel: DVI IN, OUT: DVI-D Input/output port Audio IN, OUT: 3.5mm stereo Input/output port CONTROL, AV: CAT5 connection ports IR: IR signal Input/output port RS232C: RS-232 signal Input/output port...

  • Page 11: Technical Specification

    DTS50R/DRS50R modules’ Compatibility Chart DTS50R Compatible with DR50R, DRS50R, DCE RX DRS50R Compatible with DT50R, DTS50R, DCE TX Technical Specification Data Transfer Speed: Up to 2.25 Gbps (DVI Single Link), 10 Gbps (HDMI) Frequency Range: 25 ~ 165 Mhz Supporting Display Resolutions: 1080p / Up to WUXGA (1920X1200)@60Hz I/O Video Signal Standard: DVI 1.0, HDMI 1.3, TMDS...

  • Page 12: Two) Years Warranty

    Warranty 2 (Two) Years Warranty Dtrovision warrants this CAT5 DVI extension cable to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) years from the date of purchase from Dtrovision or its authorized resellers. If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the...

  • Page 13: Fcc/Ce Statement

    FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
