Owner's Manual
HCE III
HDMI 2.0 Ultra HD/4K HDR HDBaseT Extender
with Control and Bi-directional POE
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
1
Advertisement
Table of Contents
Related Manuals for PureLink HCE III
Summary of Contents for PureLink HCE III
- Page 1 Owner’s Manual HCE III HDMI 2.0 Ultra HD/4K HDR HDBaseT Extender with Control and Bi-directional POE PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Chapter 1. Product Overview, Operation & Specification 1.1 Safety Precautions -------------------------------------------------------------- 1.2 What’s in the Box --------------------------------------------------------------- 1.3 Product Introduction --------------------------------------------------------------- 1.4 Features -------------------------------------------------------------- 1.5 Product View and Connection Ports ------------------------------------------------ 1.6 Product Specification --------------------------------------------------------------- 1.7 Cable Termination -------------------------------------------------------------- 1.8 Transmission Distance --------------------------------------------------------------... -
Page 3: Safety Precautions
Do not place any heavy objects or equipment on top of the unit. If you experience any malfunctioning of product or have any question as to operation of the product, please contact our customer service center. PureLink Tel: 201.488.3232 Email: support@purelinkav.com... -
Page 4: What's In The Box
Précis visually loss less light compression technology to transmit 4K/60 4:4:4 and HDR signal over single CAT cable. A low profile enclosure makes the HCE III ideal for a limited space environment such as behind a flat-panel display. 1.4 Features ... -
Page 5: Product View And Connection Ports

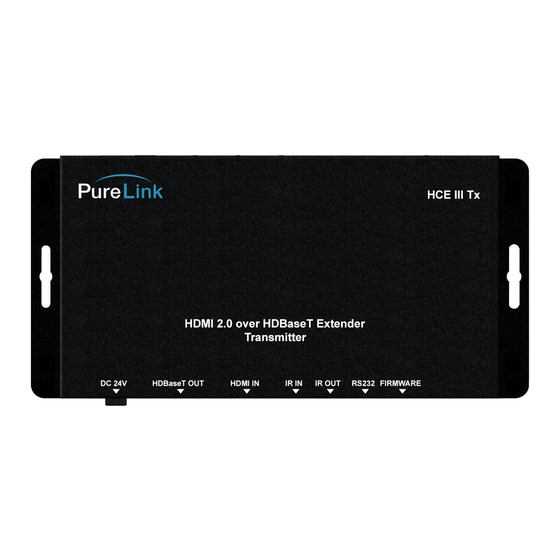

Low profile design for a limited space environment such as behind a flat panel display 1.5 Product View and Connection Ports Transmitter 1. 24V/1A power supply unit input connector (locking type) 2. HDBaseT output 3. LED indicator for Tx/Rx interconnection status - Solid: Good connection between Transmitter and Receiver - Flashing: Poor connection between Transmitter and Receiver - Dark: No connection between Transmitter and Receiver... - Page 6 Receiver 1. 24V/1A power supply unit input connector (locking type) 2. HDBaseT Input 3. LED indicator for Tx/Rx interconnection status - Solid: Good connection between Transmitter and Receiver - Flashing: Poor connection between Transmitter and Receiver - Dark: No connection between Transmitter and Receiver 4.
-
Page 7: Product Specification
1.6 Product Specifications General Specification Input: AC100 – 240V 50/60Hz Power Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) Power Consumption 24W (max) Operational Temperature 32° ~ 117° F (0° to 47° C) Storage Temperature - 4° ~ 140° F (-20° to 60° C) Humidity 0 ~ 90% non-condensing MTBF... -
Page 8: Cable Termination
RS-232 CATx (HDBaseT) Cable Termination HCE III Tx/Rx is designed with TIA/EIA-568-B Standard. Please ensure that each PIN layout of the cable is corresponding with the picture below before connecting the cable. Please note that CAT6 or above level cable enables to deliver better quality and longer distance. - Page 9 PureLink offers TotalWire CAT-X high performance cable for your CATx cable needs. PureLink also offers extended warranty of HCE III Tx/Rx product when CX cables are used together. For detail information, please contact support@purelinkav.com. CX SERIES TOTALWIRE™ CAT-X High Performance Cable...
-
Page 10: Transmission Distance
1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the HCE III transmitter and the HCE III receiver. 3. Connect HDMI cable between the source and the HCE III transmitter AND the HCE III receiver and the display. - Page 11 - IR Blaster is always on the end point (display) - Use the remote control of the end point device facing the IR receiver. NOTE: Infrared receiving areas of devices can be located by shining a flashlight onto the front of the device – the sensor should be able to be seen through the plastic as a small, round object inside.
-
Page 12: Chapter 2. Application Diagram Examples
Chapter 2. Application Diagram Examples 2.1 Single source and single display extension <Diagram 1> 2.2 Multiple HDMI sources with AV receiver and single display extension <Diagram 2>... -
Page 13: Multiple Sources With Hdmi Switcher And Single Display Extension
2.3 Multiple sources with HDMI switcher and single display extension <Diagram 3> 2.4 Multiple sources with HDMI matrix switcher and multiple displays extension <Diagram 4>... -
Page 14: Poe Example From Transmitter To Receiver
2.5 POE example from Transmitter to Receiver <Diagram 5> 2.6 POE example from Receiver to Transmitter <Diagram 6> 2.7 RS232 bi-directional control example <Diagram 7>... - Page 15 2.8 IR bi-directional control example...
-
Page 16: Chapter 3. Additional Information
3.1 Manufacturer’s Warranty (3-Years) PureLink warrants this HCE III Tx/Rx extender to be free from defects in workmanship and materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or its authorized resellers.
