HTS50R/HRS50R
Stand Alone HDMI CAT5 Extension System
HDMI + Stereo Audio + RS-232 + IR over two CAT5
Owner's Manual
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
Email: support@dtrovision.com
www.dtrovision.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@dtrovision.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PureLink HTS50R
Summary of Contents for PureLink HTS50R
- Page 1 HTS50R/HRS50R Stand Alone HDMI CAT5 Extension System HDMI + Stereo Audio + RS-232 + IR over two CAT5 Owner’s Manual Dtrovision LLC 9A Bergen Turnpike Little Ferry, NJ 07643 Tel: +1.201.488.3232 Fax: +1.201.621.6118 Email: support@dtrovision.com www.dtrovision.com For order support, please contact your local dealer.
- Page 2 Please make sure all of the following items are included in the package; 1) HTS50R/HRS50R x1 2) DC 12V Power Supply Unit with a power cord x1 3) User Manual HTS50R: HDMI CAT5 Transmitter Module HRS50R: HDMI CAT5 Receiver Module...
-
Page 3: General Specification
General Specification • HTS50R/HRS50R is a HDMI, stereo audio, RS-232, IR extension system over two CAT5 cables for long distance up to 165ft. • Compact & durable design and lower power consumption makes it an ideal solution for connection for high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and projectors. - Page 4 Model HTS50R/HRS50R Input Signal HDMI, 3.5mm Analog Audio, RS-232, IR Output Signal HDMI, 3.5mm Analog Audio, RS-232, IR Supporting Display VGA ~WUXGA (up to 1920 x 1200 @ 60Hz) , Resolutions 480i ~ 1080p 1920x1200 @ 60Hz or at 1080p: 50M(165ft) Max.
-
Page 5: Operation And Reliability Specification
Operation and Reliability Specification 1. Operating Environment Temperature: 50F ~ 104F (10℃~ 40℃) Humidity: 10% ~ 80% Altitude: 3,000m Max. 2. Transit Environment Temperature: -13F ~ 140F (-25℃~ 60℃) Humidity: 5% ~ 95% Altitude: 15,000m Max. 3. Storage Environment Temperature: -4F ~ -49F (-20℃~ 45℃) Humidity: 5% ~ 95% Altitude: 3,000m Max. -
Page 6: Main Features
Noise cancellation and error correction logic enhances video and audio signals over long distance. 2. Built-in signal repeater to support longer distance between the source and the HTS50R & HRS50R and the display. This Signal Repeater logic supports up to 50ft copper based DVI/HDMI cables. -
Page 7: Installation And Connection Instructions
3. Cable Connection: CAT5 Cable: HTS50R/HRS50R was designed to conform to TIA/EIA-568-B Standard. Please ensure that each PIN layout of HTS50R/HRS50R is corresponding with the picture below before connecting the cable. Please note that CAT5e or above level cable enables to deliver better video quality and longer distance. - Page 8 6. Turn on Video Source Cable Termination IR cable HTS50R/HRS50R supports both 5V and 12V and it can be selected by IR voltage switch on the side of the unit. Please choose the voltage that IR cable requires. (Factory default is 5V) Please refer below for the IR cable termination;...
- Page 9 HTS50R/HRS50R Specification Dimensions: 4.3x3.1x1.6(inches) 110x78x40(mm) HTS50R: Transmitter Module HRS50R: Receiver Module...
-
Page 10: Operating Instruction

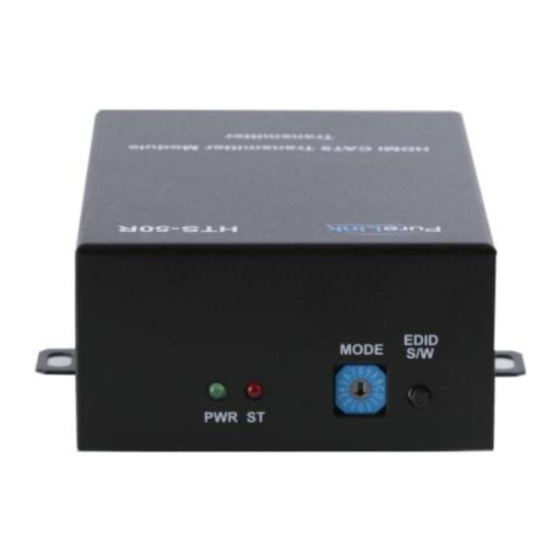

DC 12V: Power input port Operating Instruction EDID library : Use MODE rotary switch on the front panel of HTS50R to select EDID to use. EDID library list; 0- External EDID 1-800x600 60Hz , 2-1024x768 60Hz , 3-1280x768 60Hz ,4-1280x1024 60Hz... -
Page 11: Technical Specification
HTS50R/HRS50R modules’ Compatibility Chart HTS50R Compatible with HR50R, HRS50R, HCE RX HRS50R Compatible with HT50R, HTS50R, HCE TX Technical Specification Data Transfer Speed: Up to 2.25 Gbps (DVI Single Link), 10 Gbps (HDMI) Frequency Range: 25 ~ 165 Mhz Supporting Display Resolutions:... -
Page 12: Two) Years Warranty
Warranty 2 (Two) Years Warranty Dtrovision warrants this CAT5 DVI extension cable to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) years from the date of purchase from Dtrovision or its authorized resellers. If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the... -
Page 13: Fcc/Ce Statement
FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
