HTE Owner's Manual
HDMI, RS-232, IR & Ethernet Extender
over HDBaseT with 3D, 4K, POE Support

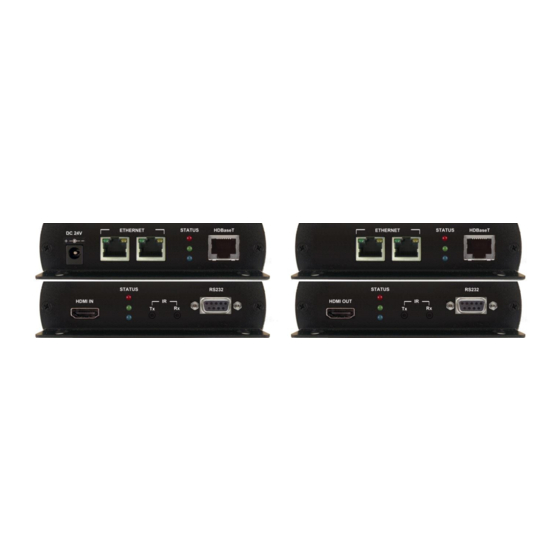

HTE Tx
TM
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
HTE Rx
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com
Advertisement
Table of Contents
Related Manuals for PureLink HTE Tx
Summary of Contents for PureLink HTE Tx
- Page 1 HTE Owner’s Manual HDMI, RS-232, IR & Ethernet Extender over HDBaseT with 3D, 4K, POE Support HTE Tx HTE Rx PureLink Website : www.purelinkav.com 535 East Crescent Ave E-mail : info@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118...
-
Page 2: Package Contents
1 x User Manual Description The PureLink HTE is a transmitter and receiver set for long distance extension of HDMI video and embedded audio with bi-directional control signals ( RS-232 and IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which allows full 3D support with up to 330ft (100m) at 4K2K (UHD) resolution. - Page 3 PureLink by Dtrovision Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit. Max. Data Rate- 10.2 Gbps. HDCP (High-bandwidth Digital Content Protection) Support.
-
Page 4: Operation And Reliability Specification
PureLink by Dtrovision * Travel Range Specification Cable Type Range Pixel clock rate Video Data Rate Supported Video CAT5e/CAT6 100 m <= 225 MHz <= 5.3 Gbps Up to 1080p, 60Hz, 36bpp (Data (HD Video) rates lower than 5.3 Gbps or... -
Page 5: Installation And Connection Instructions
PureLink by Dtrovision Installation and Connection Instructions 1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the HTE transmitter and the HTE receiver. 3. Connect HDMI cable between the source and the HTE transmitter AND the HTE receiver and the display. -
Page 6: Transmission Distance
PureLink by Dtrovision CATx cable Link cable recommend use high quality CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable. Transmission Distance The maximum transmission distance up to 100meters, use lower resolution won’t extend longer distance If connection through the wall socket, the cable length must less 5 meters between... -
Page 7: Connection Ports
PureLink by Dtrovision HTE Transmitter Specification Transmitter Module Dimensions (W x D x H): 3.5’’ x 5.3’’ x 1.2’’ (88 x 135 x 30 mm) Transmitter Module Weight : 0.66 lbs (0.3 kg) Connection Ports: HDMI IN: HDMI input Green LED: Power On/Off Indication... - Page 8 PureLink by Dtrovision HTE Receiver Specification Receiver Module Dimensions (W x D x H): 3.5’’ x 5.3’’ x 1.2’’ (88 x 135 x 30 mm) Receiver Module Weight : 0.66 lbs (0.3 kg) Connection Ports: HDMI OUT: HDMI output Green LED: Power On/Off Indication...
-
Page 9: Led Indication
PureLink by Dtrovision LED Indication IR Status: Color LED Function HTE Tx HTE Rx GREEN Power On: power on BLUE IR Receive On: IR received signal IR Emit On: IR emitting HTBaseT Status: Color LED Function HTE Tx HTE Rx... -
Page 10: Technical Specification
PureLink by Dtrovision Technical Specification Frequency Range: 25 ~ 165 MHz Supporting Resolutions: Up to 1080p / 60Hz / 48 bit Up to Ultra HD (4K) / 30Hz Up to 1920x1200 / 60Hz I/O Signal Standard: HDMI 1.4 Max Distance:... -
Page 11: Warranty
PureLink by Dtrovision Warranty One (1) Year Warranty Dtrovision warrants this HDMI, RS-232, IR, and Ethernet Extender over CATx with 3D, 4K, POE Support to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Dtrovision or its authorized resellers. -
Page 12: Fcc/Ce Statement
PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
