3.5. Interfaces

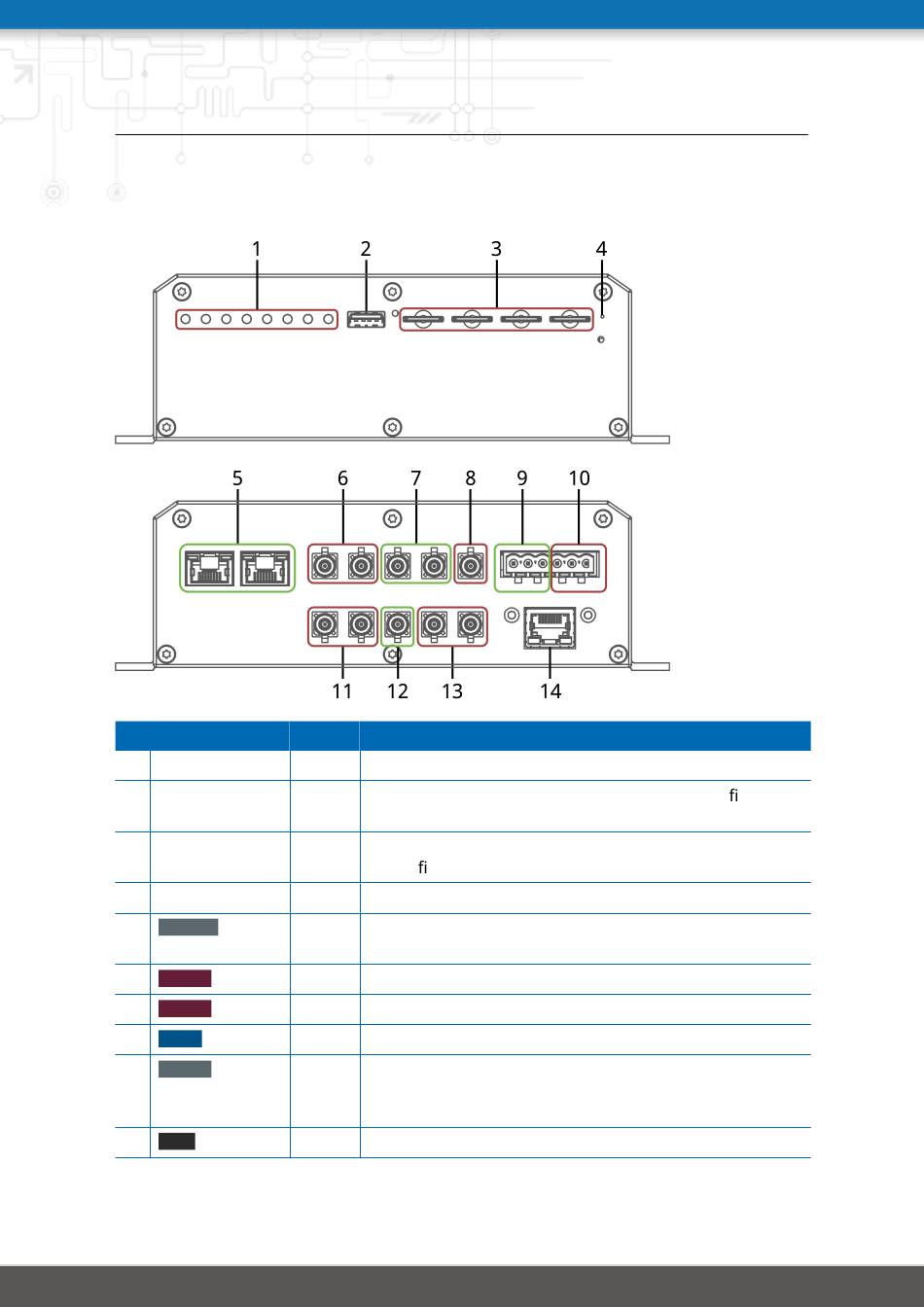

3.5.1. Overview

Nr. Label
1 LED Indicators
2 USB
3 SIM 1-4
4 Reset
5 ETH 1-2
MOB 1
6
7 MOB 2
8 GNSS
9 RS-232
10 PWR
NB2800 User Manual 4.2
Panel Function
Front LED Indicators for the different interfaces
Front USB 2.0 host port, can be used for software/con guration
updates.
Front SIM 1-4, they can be assigned dynamically to any modem
by con guration.
Front Reboot and factory reset button
Rear Gigabit Ethernet ports, can be used as LAN or WAN inter-
face.
Rear 2 FAKRA coding D jacks for MIMO LTE antenna
Rear 2 FAKRA coding D jacks for MIMO LTE antenna
Rear FAKRA coding C jack for GNSS antenna
Rear Non-isolated serial RS-232 interface (Pins 4 to 6) which
can be used for console administration, serial device
server or other serial based communication applications.
Rear Power supply 12-48 V
9
(Pins 1 and 2) and Ignition (Pin 3)
DC
