3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

Front View - All Models

Î
Rear View
Î
Electrical Connections
Î
TPS Matrix Concept
Î
TPS Interface
Î
Audio Interface
Î
Video Interface
Î
Control Features (Matrix Control and Third-Party Devices)
Î
Further Built-in Features
Î
MMX6x2-HT series – User's Manual

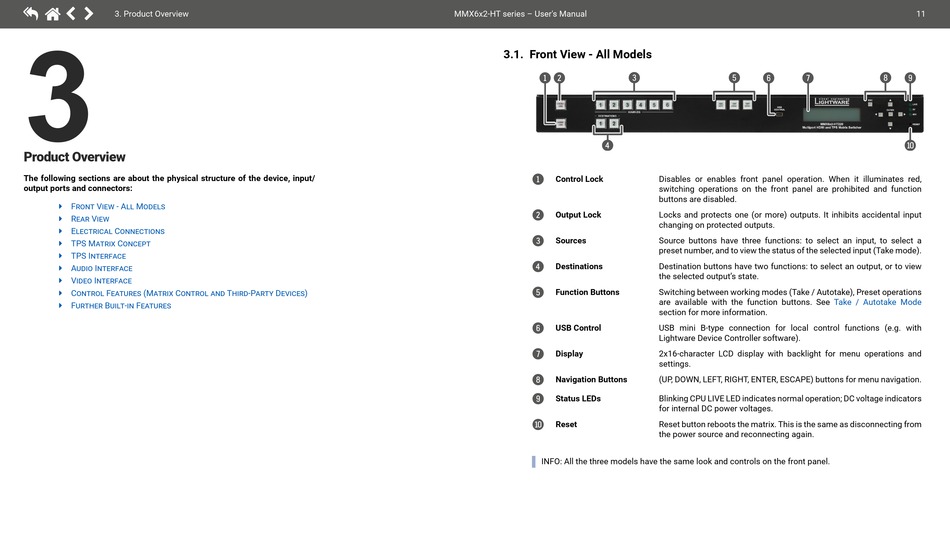

3.1. Front View - All Models
1 2 3
4
1 Control Lock
Output Lock
2
Sources
3
4 Destinations
5 Function Buttons
6 USB Control
Display
7
Navigation Buttons
8
9 Status LEDs
q Reset
INFO: All the three models have the same look and controls on the front panel.
5 6 7
Disables or enables front panel operation. When it illuminates red,
switching operations on the front panel are prohibited and function
buttons are disabled.
Locks and protects one (or more) outputs. It inhibits accidental input
changing on protected outputs.
Source buttons have three functions: to select an input, to select a
preset number, and to view the status of the selected input (Take mode).
Destination buttons have two functions: to select an output, or to view
the selected output's state.
Switching between working modes (Take / Autotake), Preset operations
are available with the function buttons. See Take / Autotake Mode
section for more information.
USB mini B-type connection for local control functions (e.g. with
Lightware Device Controller software).
2x16-character LCD display with backlight for menu operations and
settings.
(UP, DOWN, LEFT, RIGHT, ENTER, ESCAPE) buttons for menu navigation.
Blinking CPU LIVE LED indicates normal operation; DC voltage indicators
for internal DC power voltages.
Reset button reboots the matrix. This is the same as disconnecting from
the power source and reconnecting again.
11
8 9
q
