Hardware layout and configuration

2 Hardware layout and configuration
The STR910-EVAL is designed around the STR912FAW47X6 ARM966E-S in 128-pin LQFP
package. The hardware block diagram of the STR910-EVAL
of the board relative to the STR91xF peripherals and
features on the actual evaluation board.

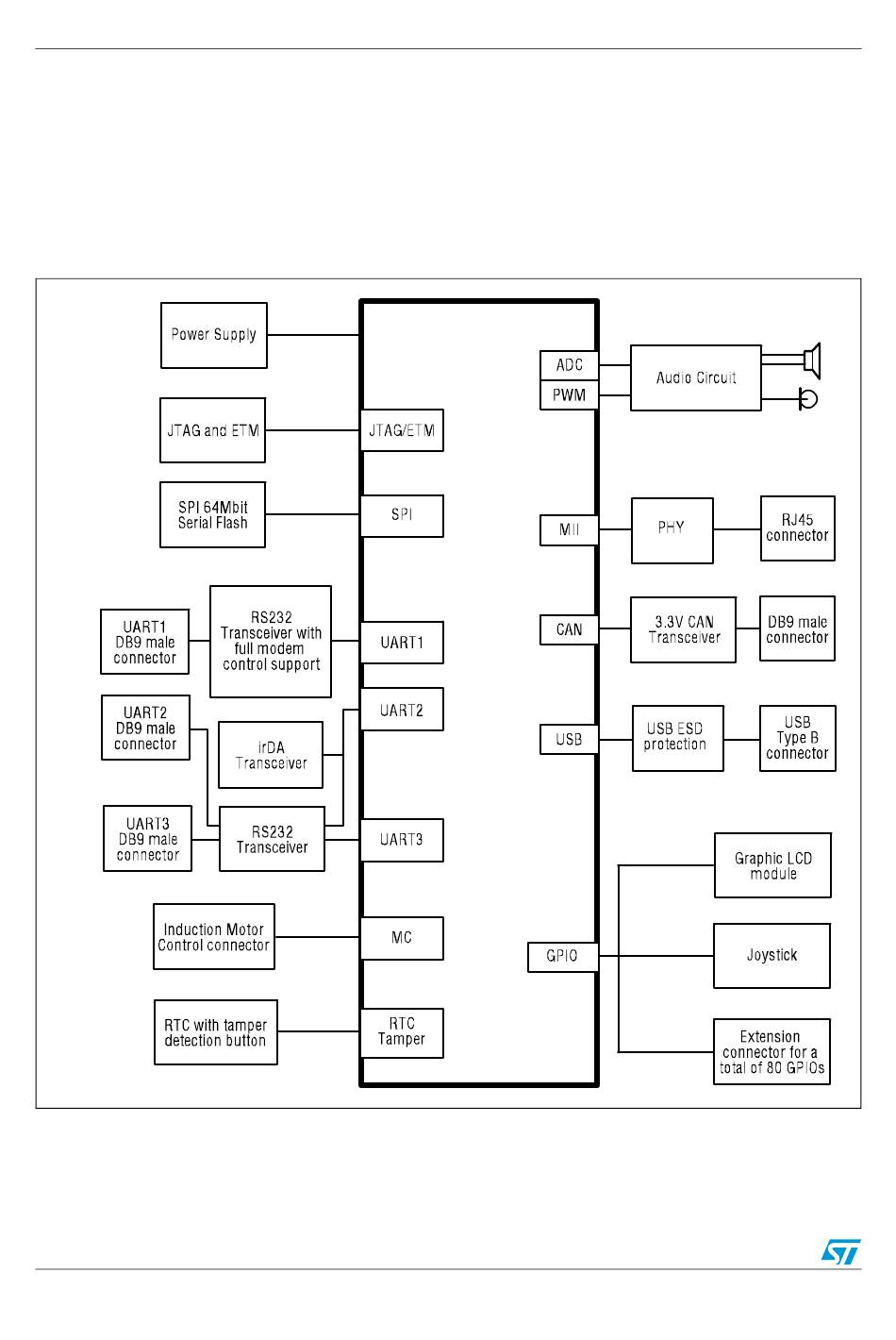

Figure 3. Hardware block diagram
Peripheral implementation on the STR910-EVAL board requires the use of alternate pin
functions supported by the STR912FAW47X6. A table of alternate pin functions used in this
design is provided in
8/46
Appendix A.
(Figure 2) illustrates the layout
Figure 4 will help you locate these
