Remove covers
i233-411
www.powercommander.com
Remove pins
PCIII harness

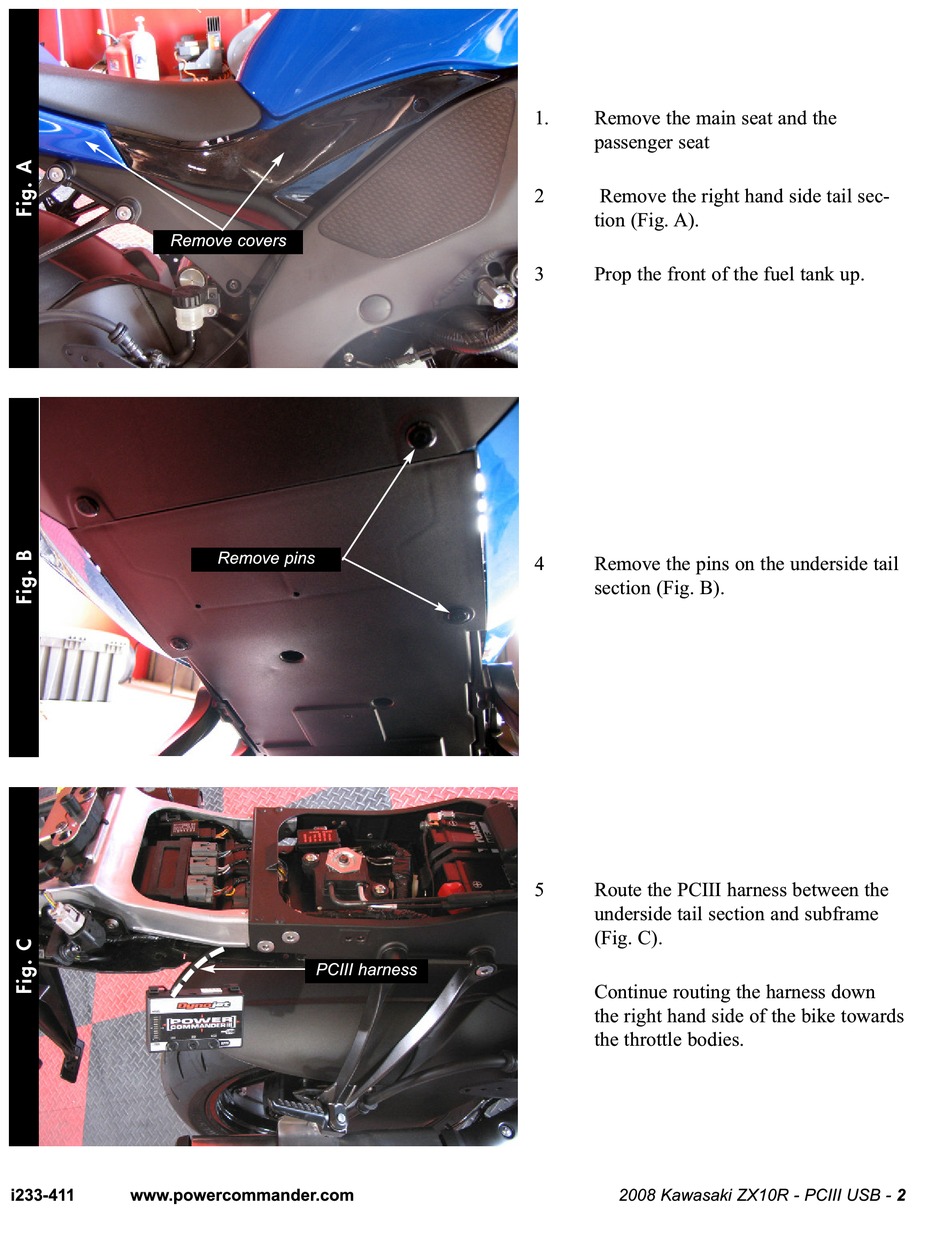

1.
Remove the main seat and the
passenger seat
2
Remove the right hand side tail sec-
tion (Fig. A).
3
Prop the front of the fuel tank up.
4
Remove the pins on the underside tail
section (Fig. B).
5
Route the PCIII harness between the
underside tail section and subframe
(Fig. C).
Continue routing the harness down
the right hand side of the bike towards
the throttle bodies.
2008 Kawasaki ZX10R - PCIII USB - 2
