Table of Contents

2 0 0 7 B o m b a r d i e r R e n e g a d e 8 0 0

Parts List

1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Wire tap
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i621-411
www.powercommander.com
I n s ta l l a t i o n I n s t r u c t i o n s

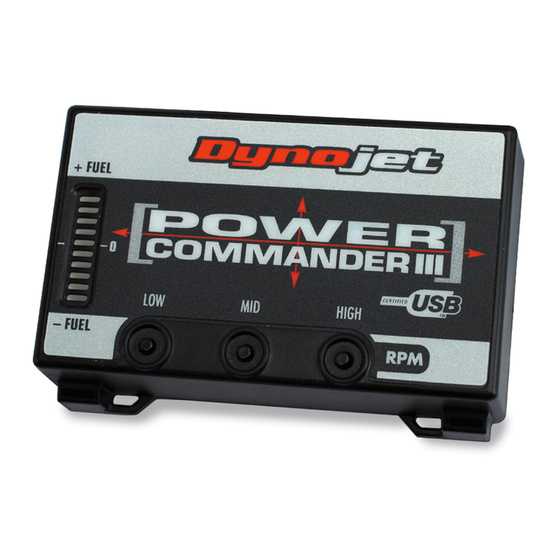

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2007 Bombardier 800 Renegade - PCIII USB - 1
