1.2 Hand On/Auto On Mode

1 1
After installation (see 3 Installation), there are two simple
ways to start up the frequency converter, Hand On and
Auto On mode. At the first power-up it is in auto on mode.
On
Warn
Hand
D

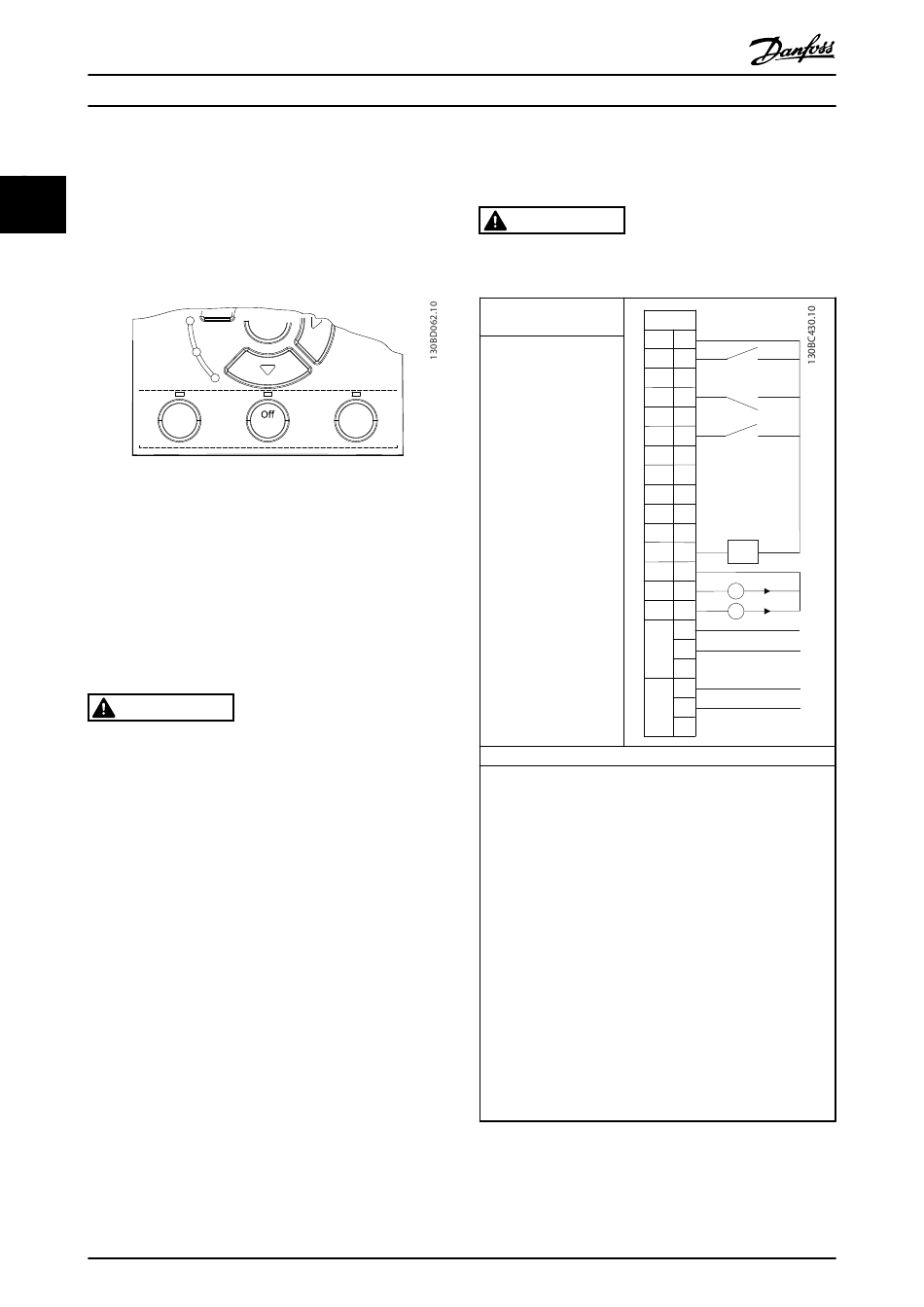

Illustration 1.3 Location of Hand On, Off/Reset and Auto On
keys on the NLCP
•
Press [Hand On] to provide a local start command
to the frequency converter. Press [
increase and decrease speed.
•
Press [Off/Reset] to stop the frequency converter.
•
Press [Auto On] to control the frequency
converter either via control terminals or serial
communication.
CAUTION
Since the frequency converter is in auto on mode at first
power up, the frequency converter may start the motor
directly.
NOTICE
5-12 Terminal 27 Digital Input has coast inverse as default
setting. Connect terminals 12 and 27 to test Hand On/
Auto On running.
For LCP operation, see 4 User Interface and Programming.

1.3 Application Selections

Use the selections for quick application set-up of the most
common applications by setting 0-16 Application Selections.
When necessary, the selections can be modified for
individual needs. All selections are for Auto On mode.
NOTICE
When an application is selected, relevant parameters are
automatically set. Customer specific configuration of all
parameters based on specific requirements is still
possible.
4
OK
Alarm
Auto
Reset
On
MG06A302 - VLT
®
VLT AutomationDrive FC 360 Quick Guide
CAUTION
If any of the applications below are selected, relay 1 will
be set to [Running] and relay 2 will be set to [Alarm]
Application
Pumps, fans, compressors
Description
For applications where a
value (e.g. pressure,
temperature) must be
kept at a desired level by
On
sensor feedback
▲ ▼
] and [ ] to
Parameter settings
1-00 (Configuration Mode): [3] Process Close Loop
1-03 (Torque Characteristics): [1] Variable Torque
3-00 (Ref Range): [0] Min- Max
3-15 (Ref Source 1): [0] No Function
4-12 (Motor Low Limit): 30.0 Hz
4-14 (Motor High Limit): 50.0 Hz
5-10 (DI 18 Selection): [8] Start
5-12 (DI 27 Selection): [2] Coast Inverse
5-14 (DI 32 Selection): [14] Jog
5-40 (Relay 1 Selection): Running
5-40 (Relay 2 Selection): Alarm
6-22 (AI 54 Low): 4.0 mA
6-23 (AI 54 High): 20.0 mA
6-29 (AI 54 Mode): [0] Current Mode
6-70 (Term 45 Mode): [0] 0-20 mA
6-71 (AO45): [100] Output freq
6-90 (Term 42 Mode): [0] 0-20 mA
6-91 (AO42): [103] Motor current
7-20 (Process CL feedback source): [2] Analog input 54
Table 1.3 [1] Process Closed Loop
®
