6.3

Menue Mode / Operating Menue

Press OK in the measured value display to go to the operating menue. Then the main
menue appears in the display.
In the operating menue you can navigate in the menues by using the arrow buttons. The
selected menue item is indicated by triangles on the left and right. The OK button selects
the menue item or switches to the corresponding submenue. You can return to the higher-
level menue by pressing ESC. From the main menue, pressing ESC returns to the meas-
ured value display.
From every position in the operating menue, you can return to the measured value display
by pressing and holding the ESC button (for at least one second).
ESC long
In long menues and selection lists, a scroll bar on the left side shows the position of the
currently selected item.
Menue items that open a setting dialogue differ from submenues by three trailing points,
e.g. "Lower range ..." (select via setting dialogue) and "System" (select via submenue).
If no button is pressed in menue mode for five minutes, the device automatically returns to
the display mode without saving any values.
Button Function
Scroll up in the menue, increase value/position in list
Scroll down in the menue, decrease value/position in list
OK Select menue, confirm value/list entry
ESC Cancel the data entry or menue selection, return to the next higher
menue
ESC long Cancel menue mode, return to display mode
BA_080 Rev 1J8 Pressure transmitter PASCAL CV4
OK
ESC
ESC

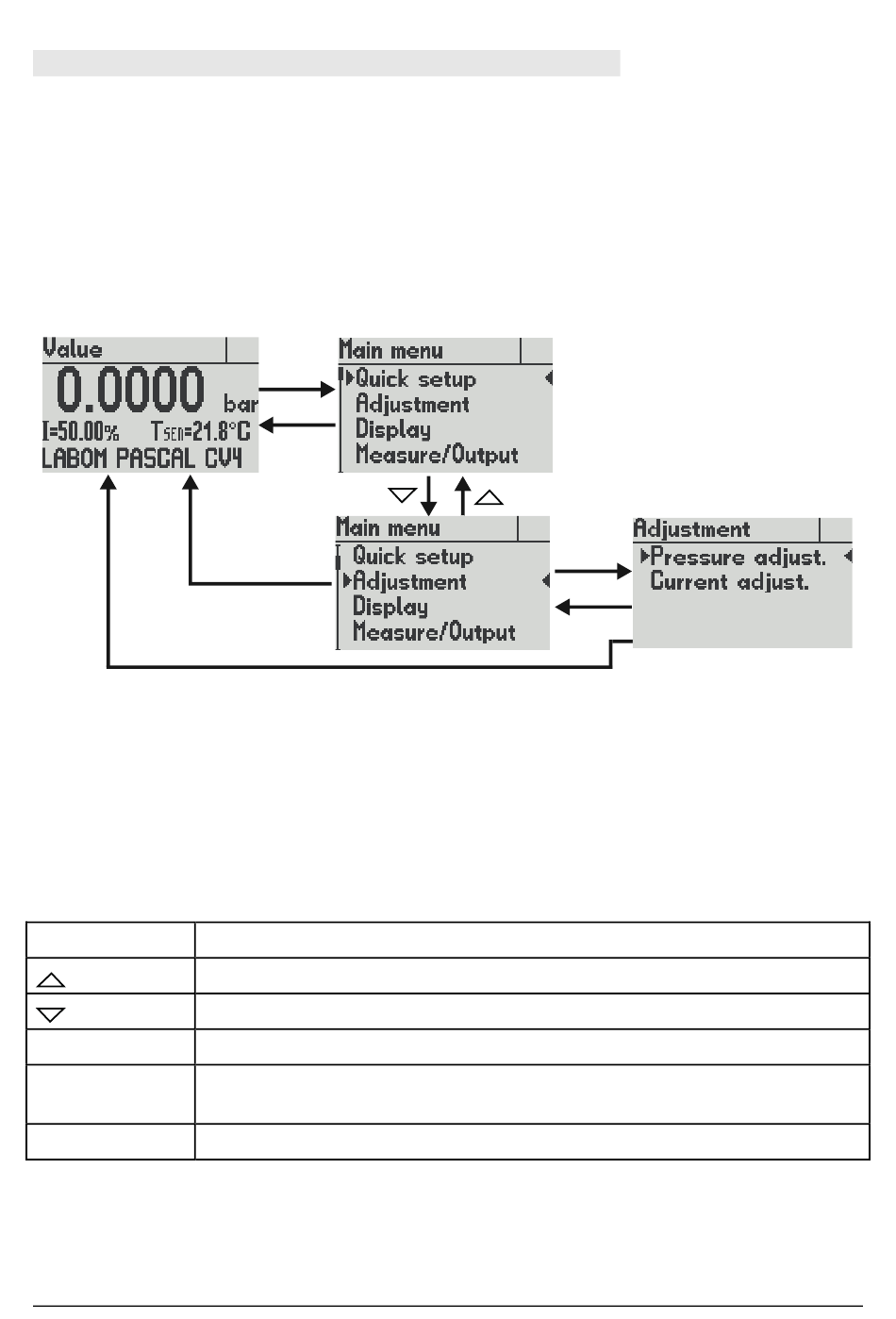

Figure 4: Navigating the operating menue
Table 5: Button functions in the operating menue
OK
ESC
