You change the selected digit by pressing the
also increased or decreased when passing zero. For instance, you can easily go from 19
to 20 without having to edit two digits.
Lower value digits are not influenced, unless the parameter limit is reached. The value is
then set to the parameter limit.
You can set negative numbers by decreasing the value below zero.
When you press the ESC button, you can cancel the entry at any time and return to the
display of the set value. Any change of the value is not saved.
With the OK button you confirm the set digit value and jump to the next digit.
When you confirm the rightmost digit, the entire value is saved. You can save the new val-
ue from any digit by pressing and holding the OK button.

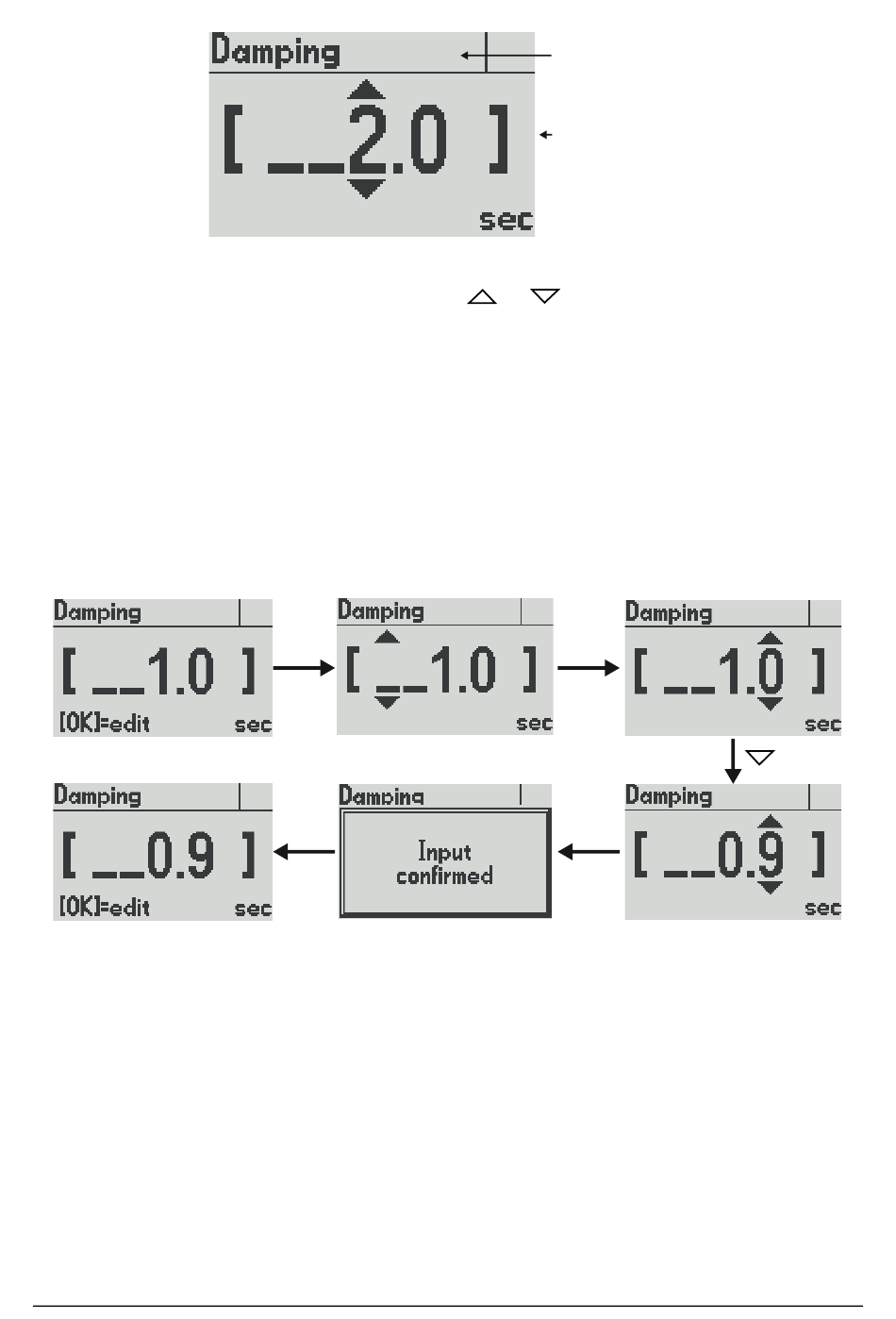

Figure 7: Procedure for setting a numeric value (e.g. from 1.0 to 0.9)
BA_080 Rev 1J8 Pressure transmitter PASCAL CV4
Figure 6: Elements when setting a numeric value
OK
parameter
designation
numeric value
and unit
or button. The higher value digit is
OK
3x
OK
