6.3

Menue Mode / Operating Menue

Press OK in the measured value display to go to the operating menue. Then the main
menue appears in the display.
In the operating menue you can navigate in the menus by using the arrow buttons. The
selected menue item is indicated by triangles on the left and right. The OK button selects
the menue item or switches to the corresponding submenue. You can return to the higher-
level menue by pressing ESC. From the main menue, pressing ESC returns to the
measured value display.
From every position in the operating menue, you can return to the measured value display
by pressing and holding the ESC button (for at least one second).
ESC long
In long menus and selection lists, a scroll bar on the left side shows the position of the
currently selected item.
Menue items that open a setting dialogue differ from submenus by three trailing points,
e.g. "Lower range ..." (setting dialogue) and "System" (submenue).
If no button is pressed in menue mode for five minutes, the device automatically returns to
the display mode without saving any values.
Button Function
Scroll up in the menue, increase value/position in list
Scroll down in the menue, decrease value/position in list
OK Select menue, confirm value/list entry
ESC Cancel the data entry or menue selection, return to the next higher menue
ESC Cancel menue mode, return to display mode
long
Numeric values and selection lists are handled differently, when entering parameters.
BA_072 Rev 1J3 Pressure transmitter PASCAL Ci4
OK
ESC
ESC

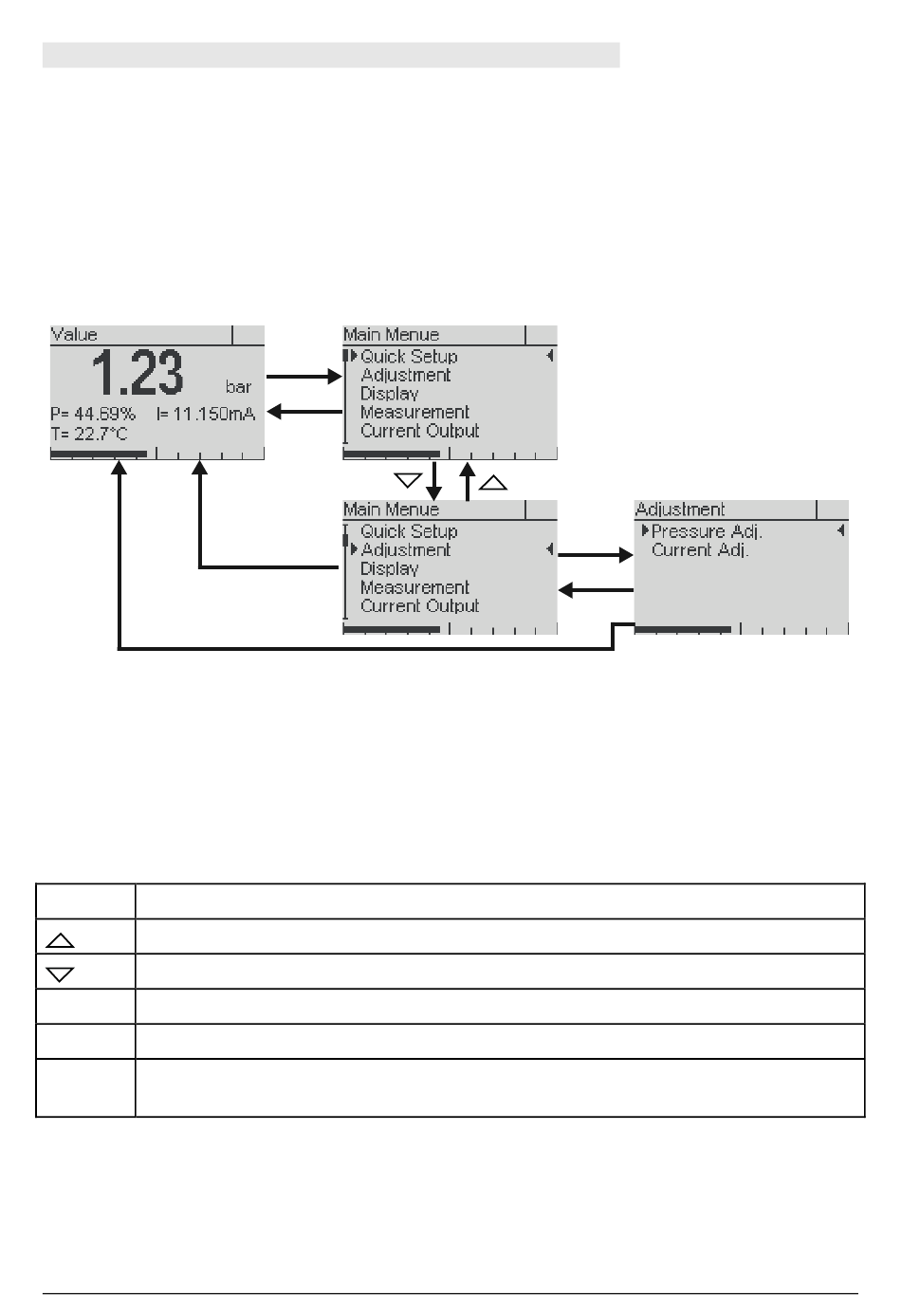

Figure 9: The Operating menue
Table 5: Button functions in the operating menue
OK
ESC
