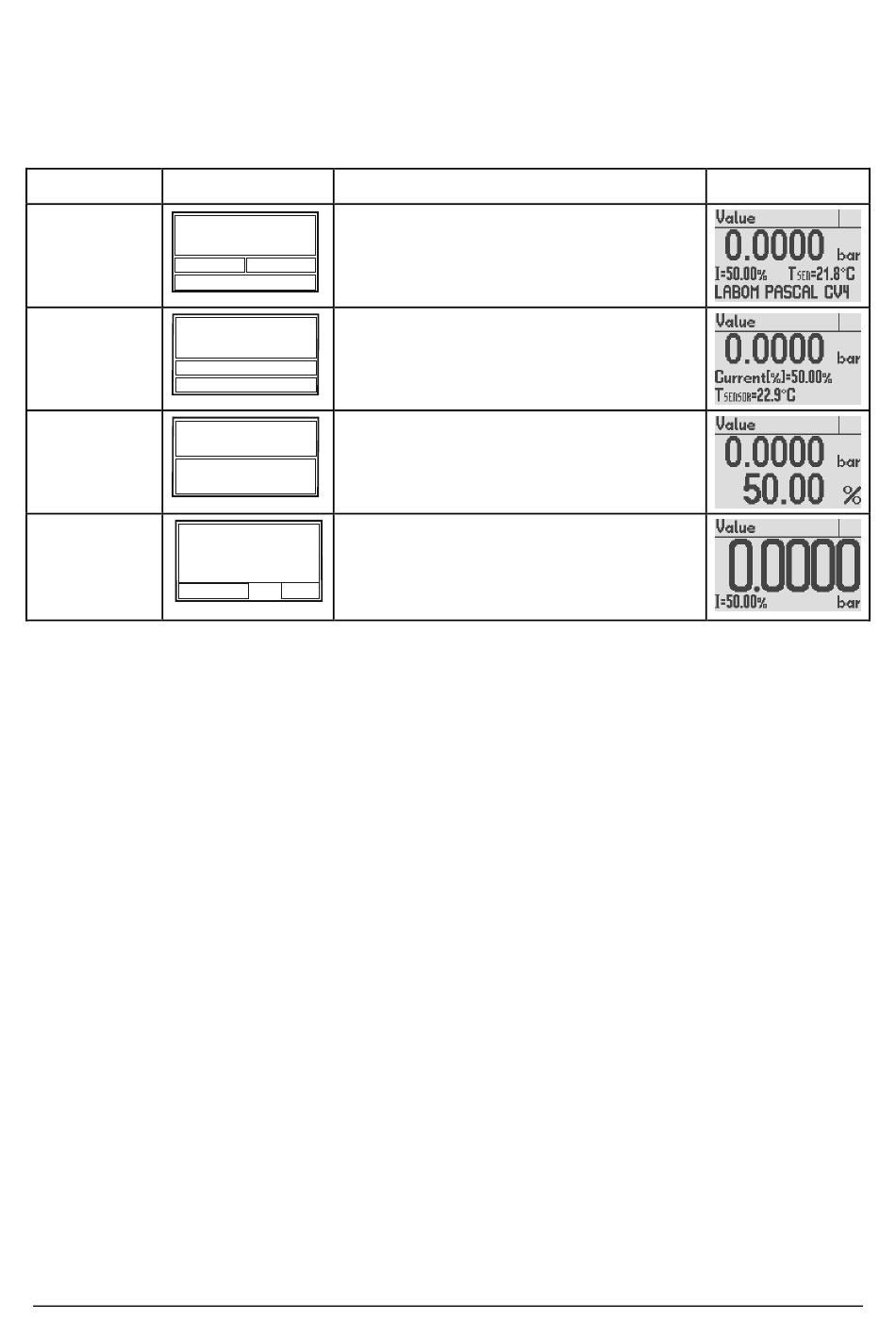

6.2.4 Display layouts
You can configure the layout of the measured value display as well as the displayed infor-
mation individually. There are four different layouts available:
Designation Layout
Four values
1st value
2nd value
Three val-
1st value
ues
Two values
1st value
2nd value
Large dis-
play
2nd value
You can define what information shall be shown in the layout's placeholders.
You can select the 1st value (main value) from the following data:
1. Pressure with the selected unit
2. Pressure in per cent of the measuring range
3. Pressure in milliampere
For all further values, you can additionally choose from the following data:
− Bar graph
− Sensor temperature
− Device ID (see 6.4.9.1)
− HART tag
− HART descriptor
When information (such as the device ID) cannot be displayed in a short layout placehold-
er, "###" appears on the screen. Then select another layout or assign the value to a longer
layout placeholder.
You can configure the display mode in the menue "Display" submenue "Display mode"
(see 6.4.4.2).
BA_080 Rev 1J8 Pressure transmitter PASCAL CV4
Description
Under the main value, three additional
values are shown. The 4th value can
3rd value
use the entire display width.
4th value
Under the main value, two additional
values are shown. Both of them can
2nd value
use the entire display width.
3rd value
Two values are shown in the same
size, one under the other.
The main value is shown at the maxi-
1st value
mum size (best readability from a dis-
tance). One additional value can also
unit
be shown.
Table 4: Display layouts
Example
