Product Overview

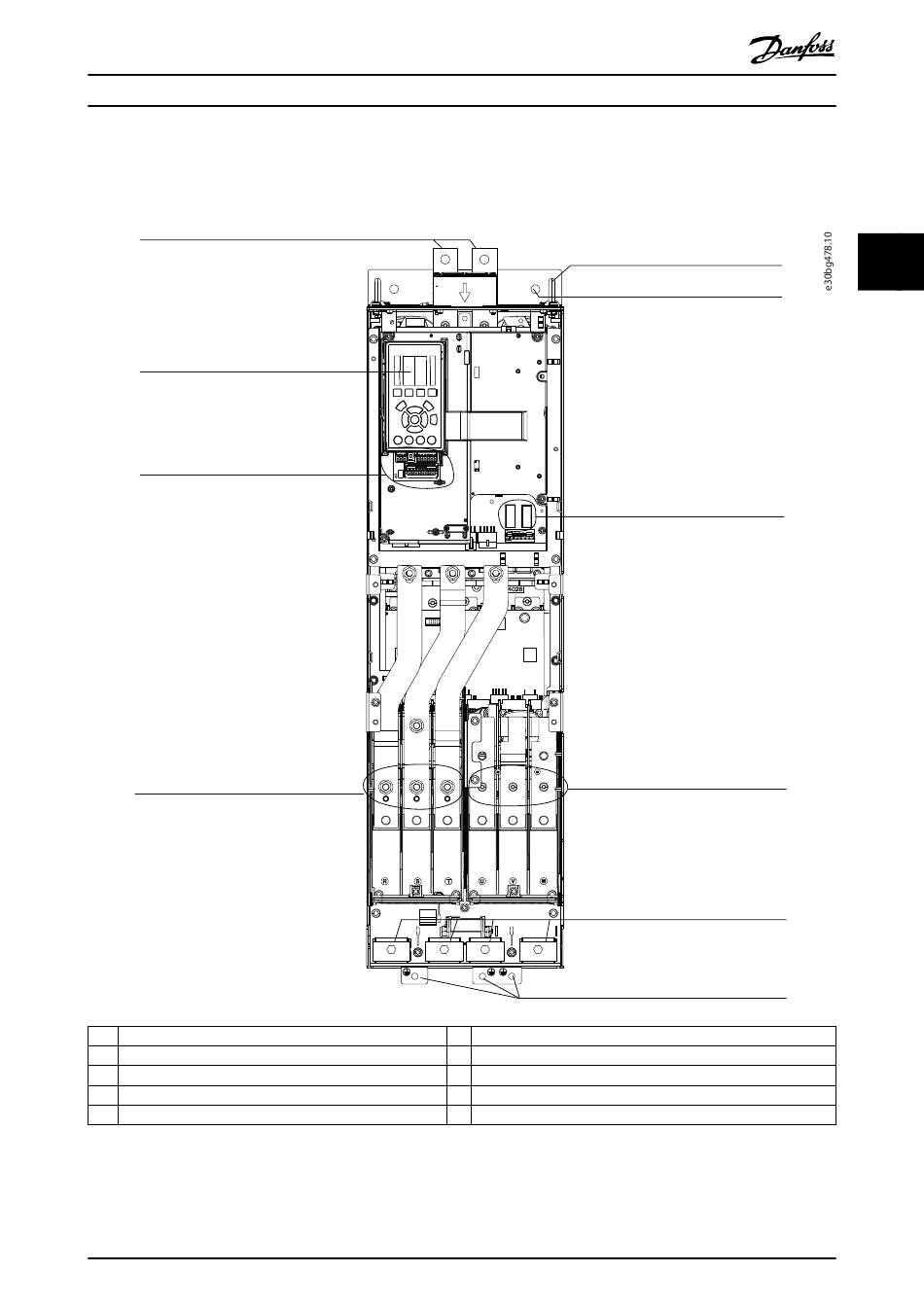

3.3 Interior View of J8 Drive

Illustration 3.1 shows the J8 components relevant to installation and commissioning.
1
2
3
4
1 Regen terminals
2 LCP (local control panel)
3 Control terminals
4 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
5 Lifting ring
Illustration 3.1 Interior View of J8 Drive
MG06I102
Operating Guide
6 Mounting hole
7 Relays 1 and 2
8 Motor output terminals 96 (U), 97 (V), 98 (W)
9 Cable clamps
10 Ground terminals
Danfoss A/S © 06/2018 All rights reserved.
3 3
5
6
7
8
9
10
7
