3.4 Interior View of J9 Drive

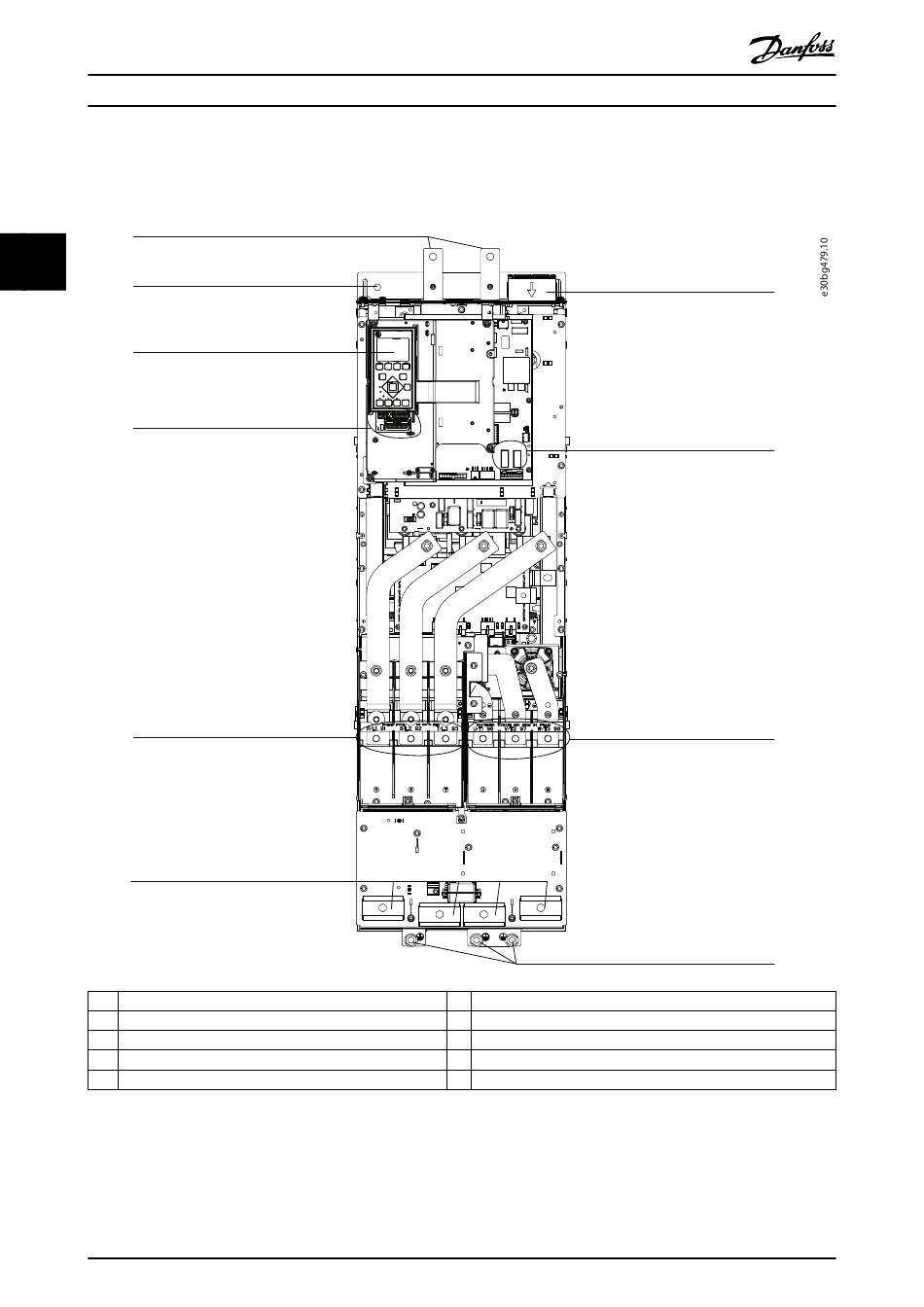

Illustration 3.2 shows the J9 components relevant to installation and commissioning.
1
3 3
2
3
4
5
6
1 Regen terminals
2 Mounting hole
3 LCP (local control panel)
4 Control terminals
5 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
Illustration 3.2 Interior View of J9 Drive
8
VLT® AutomationDrive FC 361
6 Cable clamps
7 Top fan
8 Relays 1 and 2
9 Motor output terminals 96 (U), 97 (V), 98 (W)
10 Ground terminals
