Aseptic Process Valve
DELTA AP1 / APT1
Instruction Manual: UK - rev. 1
11. Service Instructions
11.4.

Assembly of actuator unit

14
The item numbers refer to the spare parts drawings
16
AP1, APT1: actuated design RN 01.064.8
15
! Provide all seals with a thin layer of grease.
! Attention! Only for the piston seal must the appropriate
17
pneumatic grease be used (see paragraph 9).
6

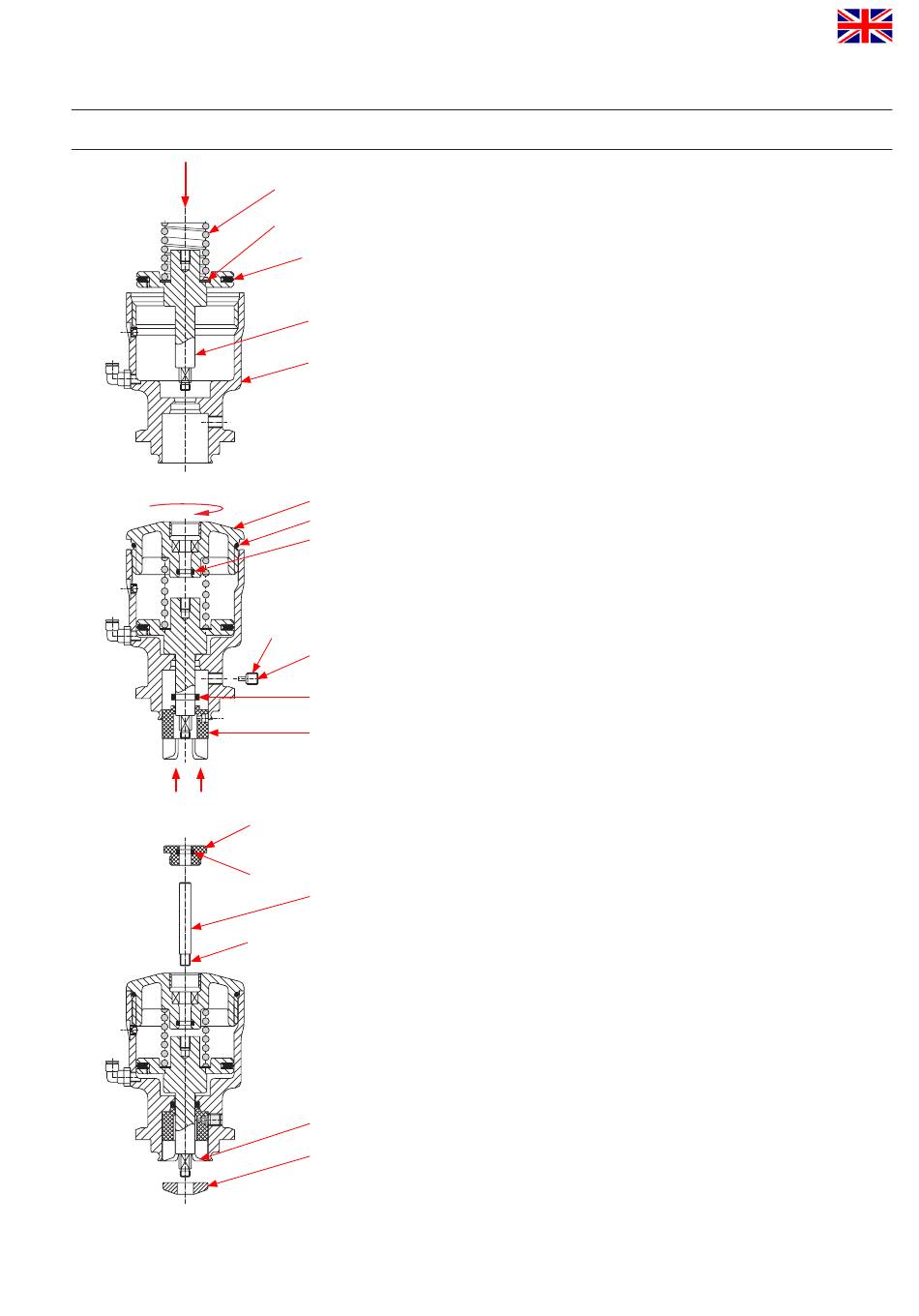

1. Insert the piston seal (15) in the piston rod (17). Place the disc (16)
in the groove of the piston rod. Insert the piston rod with disc from
the top into the actuator (6) until it stops. Insert the pressure spring
(14).
2. Insert the o-ring (12) and o-ring (9) in the housing cover. Turn the
housing cover manually in the lower actuator.
10
9
3. Slide the quadring (5) on the stud of the piston rod. Slide the
12
diaphragm support (4) from the bottom into the actuator. During this
process, the quadring is guided into the groove of the actuator.
Attention!
Loctite
19
4. Provide the thread of the safety indicator screw (19) with Loctite.
5
Fasten the indicator screw in the thread of the actuator (diaphragm
support is fixed by stud of indicator screw).
4
5. Insert the fan (3) in the diaphragm support (4).
Attention!
6. Fasten the actuator cover (10) with a wrench SW12.
11
7. Provide the thread of the indictor pin (13) with Loctite. Turn the
indicator pin manually through the actuator cover in the piston rod
12
and tighten it with a nipper.
13
Attention!
Loctite
8. Insert the o-ring (12) in the thread plug. Tighten the thread plug.
4
3
When introducing the diaphragm support
in the actuator, observe the bore position
for the safety indicator screw (19).
The fan must lock in the diaphragm support.
The indicator pin must not be damaged.
