Aseptic Process Valve
DELTA AP1 / APT1
Instruction Manual: UK - rev. 1
11.

Service Instructions

11.1.

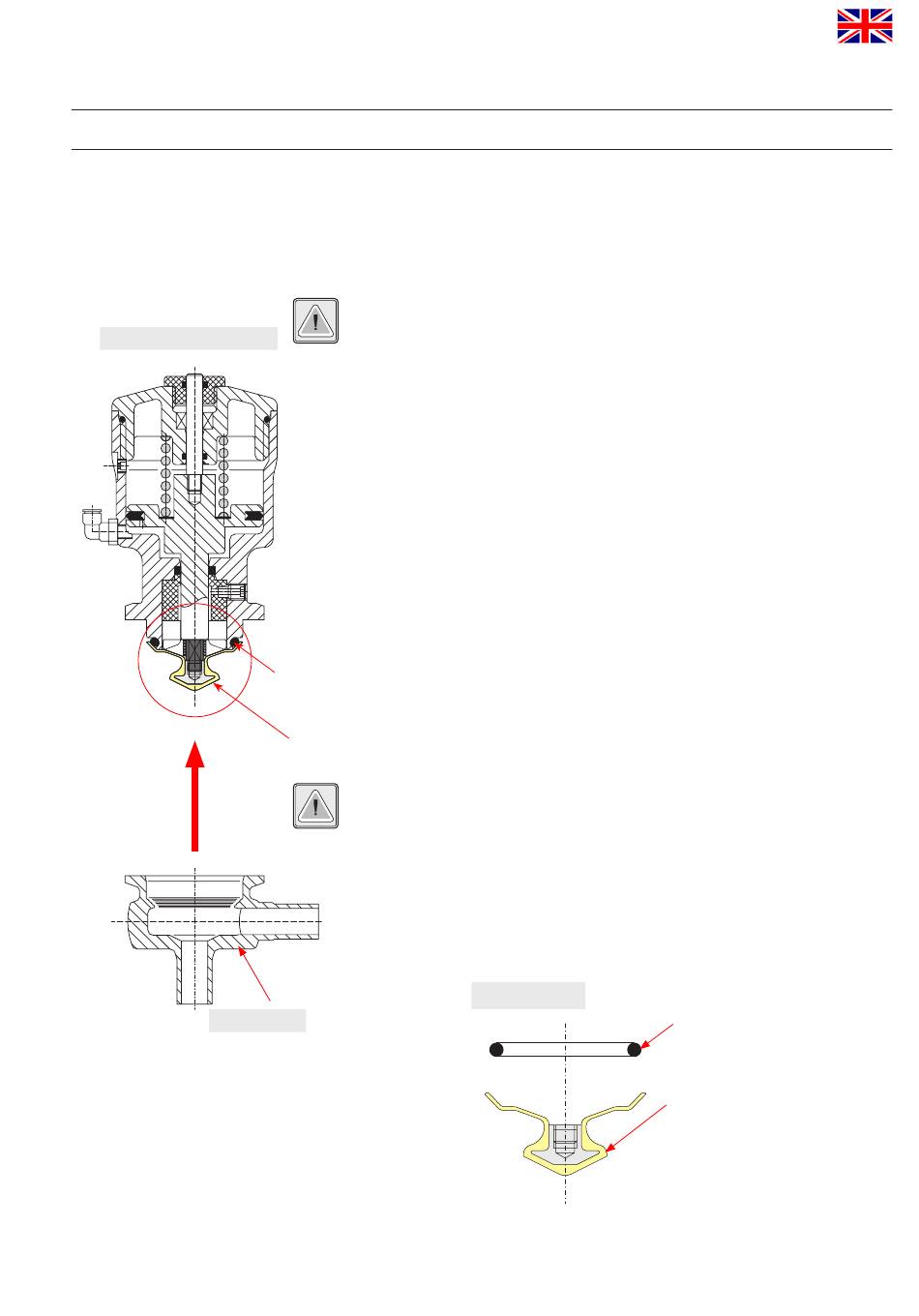

Dismantling from the line system AP1/APT1

1. Shut off line pressure and discharge lines and tanks if possible.
2. Valve design NC:
Do not touch movable parts!
Risk of injury.
Valve design NO:
3. Remove the clamp and and lift the complete valve insert including
actuator out of the housing.
Valve design NC:
11.2. Dismantling of product-wetted seal elements
1. Pull the diaphragm shaft (2) from the piston rod (17) and remove the
o-ring (21).
o-ring
O-Ring
Valve design NO:
Do not touch movable valve parts!
Risk of injury.
2. Remove the diaphragm shaft and o-ring.
Cut off compressed air.
Control actuator with air.
For the disassembly from the line
system compressed air is not required.
Cut off compressed air.
Control the actuator with compressed air.
view X
21
2
UK
12
