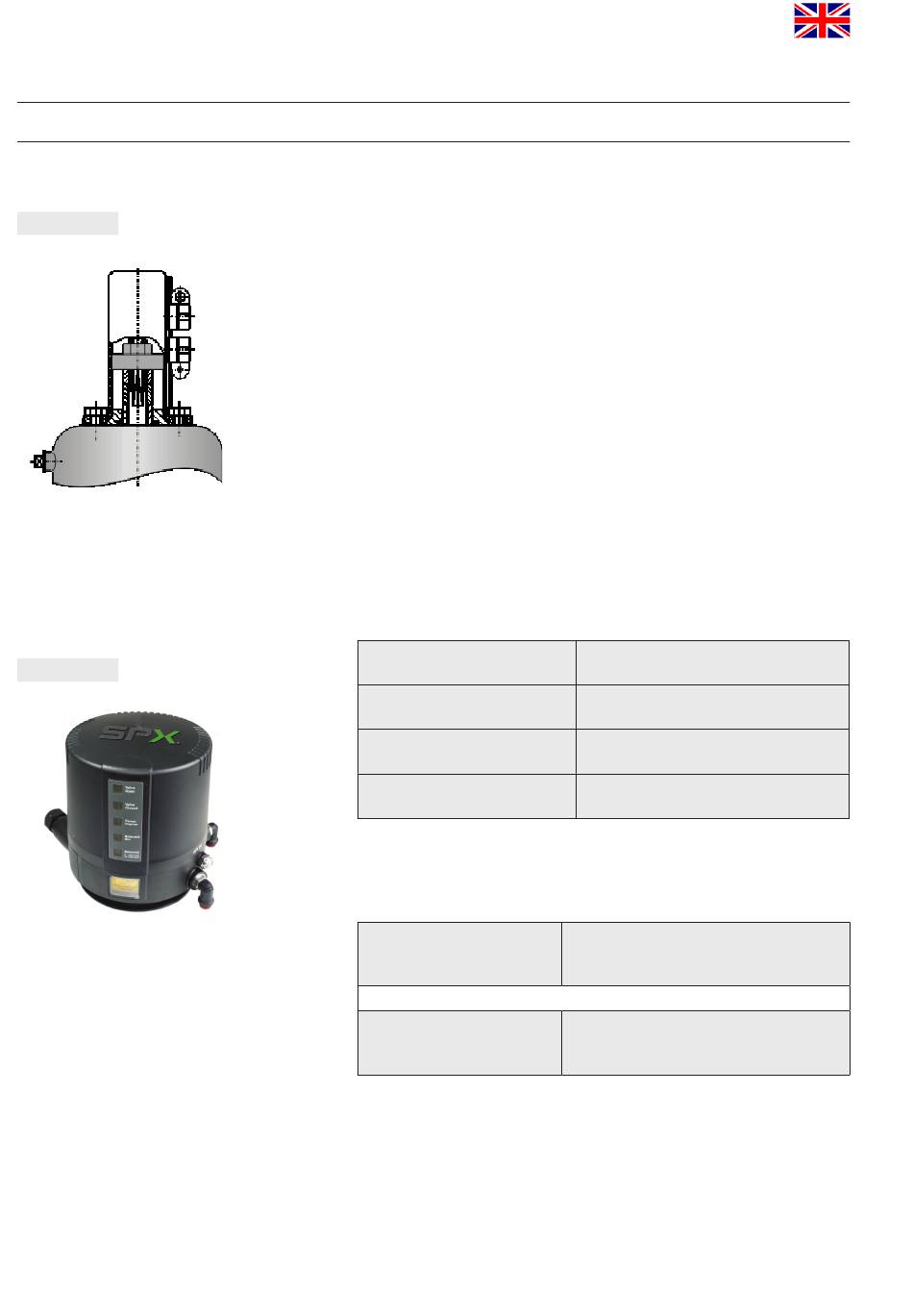

fig. 5.1.
fig. 5.2.
5
5. Auxiliary Equipment
5.1. Valve position indication (fig. 5.1.)
A proximity switch holder for the valve position feedback can be
installed direct on the actuator.
Proximity switches to signal the limit position of the valve seat
can be installed at the proximity switch holder (PSH) if required.
We recommend to use APV standard proximity switches.
Operating distance : 5 mm / diameter : 11 mm.
Operating voltage: 10 - 30 VDC
Output: operating current pnp positive switching
Connection: moulded cable 5 m length
Protective class: IP 67
ref. No.: 08 - 60 - 011/93; ID-No.: H16223
If the customer decides to use a different valve position indicator,
we cannot take over any liability for a faultless function.
5.2. Control Unit (fig. 5.2.)
For the start-up as well as assembly and disassembly of the
different designs, the corresponding instruction manual must
be observed.
The following different designs are available:
Direct Connect
ref.-No.; ID-No.:
Profibus
ref.-No.; ID-No.:
DeviceNet
ref.-No.; ID-No.:
AS-interface extended
ref.-No.; ID-No.:
- For the installation of the control unit on the SDMS4 valve
an adapter is required.
Desingation:
ref.-No.; ID-No.:
Desingation:
ref.-No.; ID-No.:
CU41N-S-Direct Connect
08-45-103/93; H320463
CU31N Profibus
08 - 45 - 002/93; H315496
CU31N DeviceNet
16 - 31 - 241/93; H209423
CU41N - S - AS-i extended
08 - 45 - 113/93; H320470
CU3 adapter SD4/SDM4
08-48-415/93;
H209430
CU4-S adapter DN25 - 100 / 1" - 4"
08 - 46 - 600/93;
H320474
