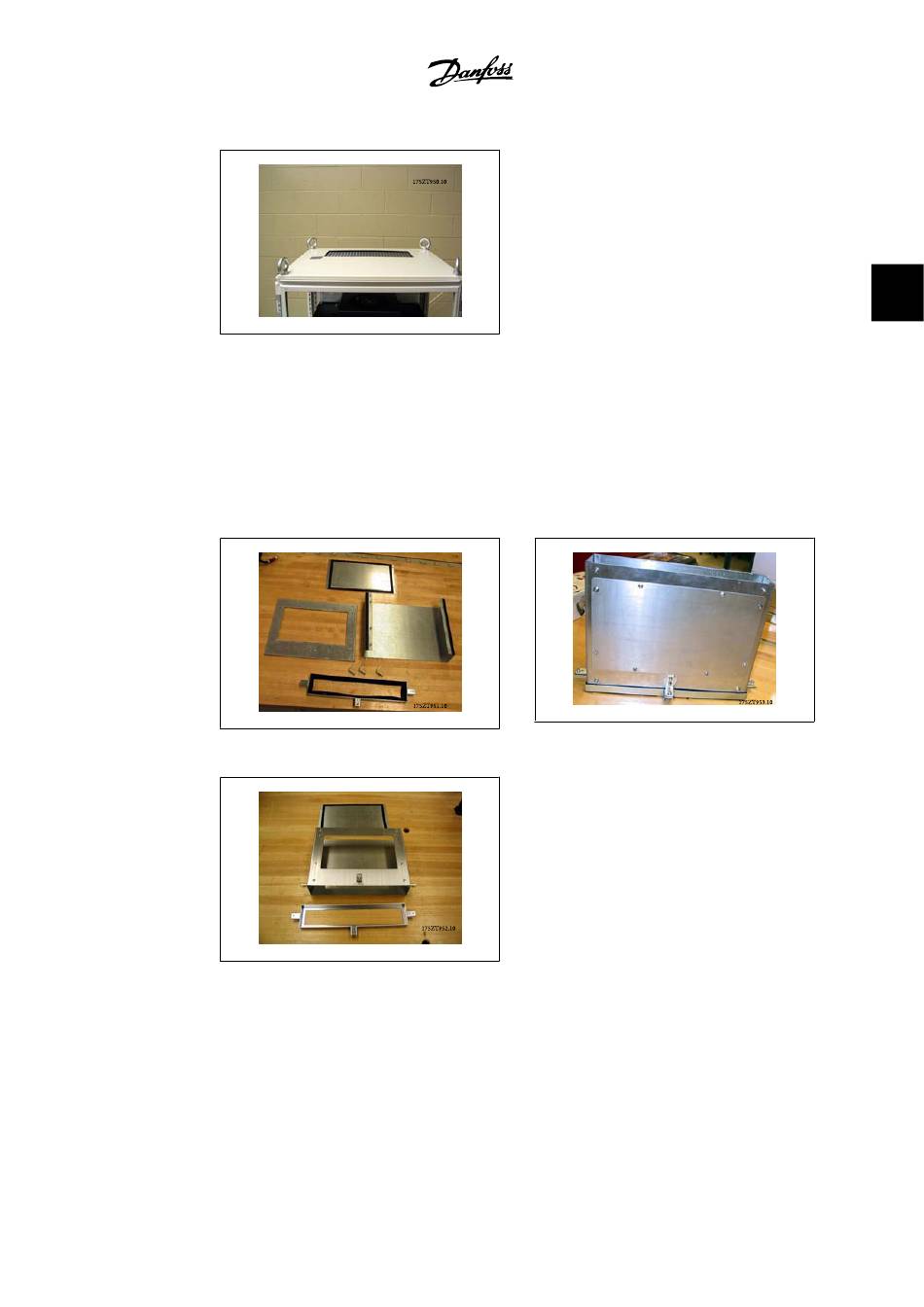

3.50: Top view of Rittal enclosure
3.4.3. Installation of Rittal Enclosures, cont.
The bottom duct assembly pieces. Refer to the drawing showing the exploded view of the duct
work components. The gasket is installed as shown. Assemble the bottom duct without the cover.
The assembly includes the mounting of 3 angle brackets on the front and sides of the partially
assembled bottom duct. The bottom duct collar is bolted to the duct using 3 - T25 screws in the
outermost holes of the brackets. Tighten the screws to compress the gasket.
3.51: Bottom duct work pieces
3.52: Bottom duct work partially assembled
MG.33.U1.22 - VLT ® is a registered Danfoss trademark.
3.53: Completely assembled bottom duct work
