TIP: To obtain information on the configuration of the pictogram, see
item 6.7 Control board.

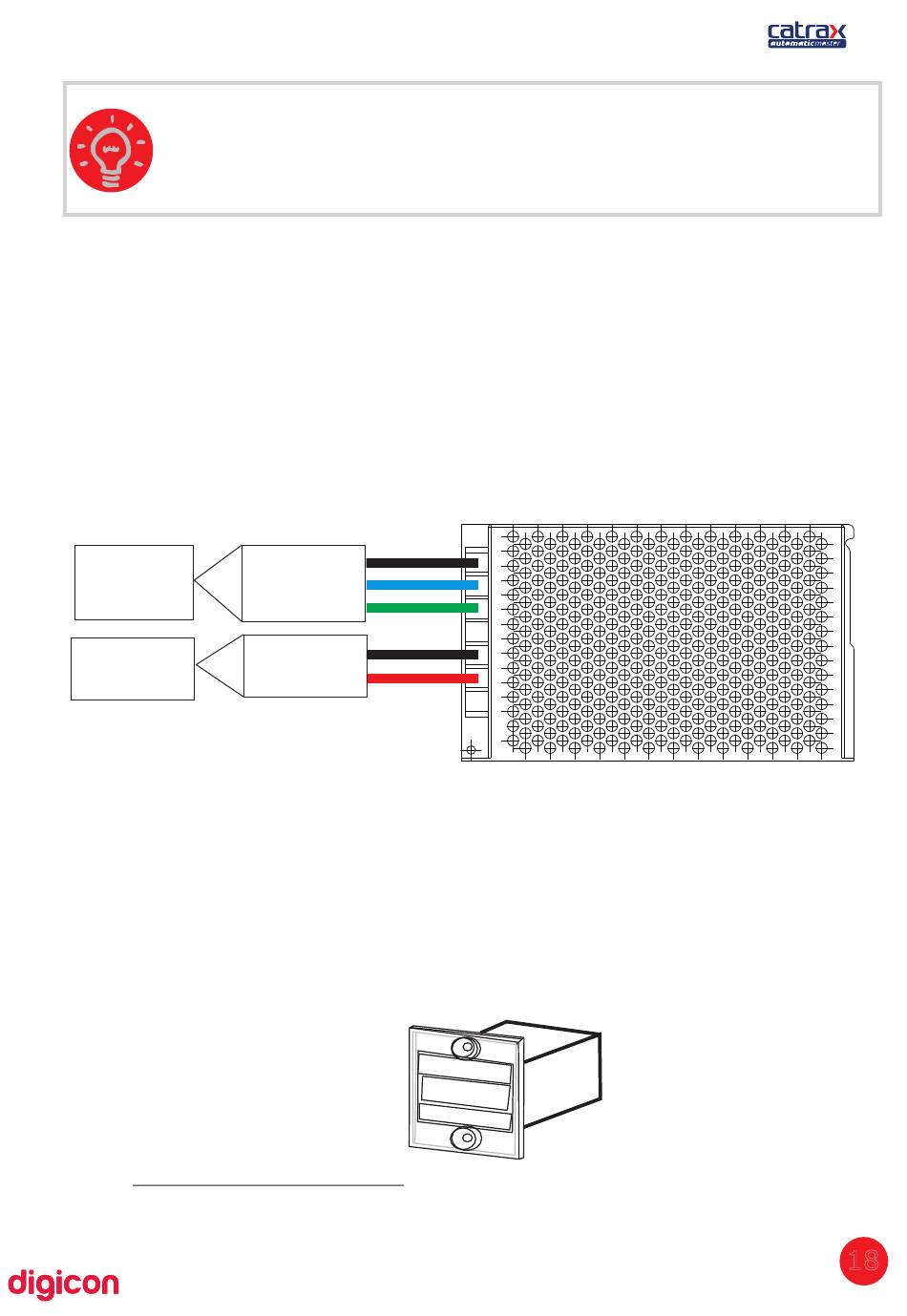

6.5 Power supply

Among the main advantages of this optional item, is its adaptation capability to the
voltage variations often found in installation sites – the input voltage can vary
between 100 and 240 Vca.
The supply's specific technical features, protections and dimensions were carefully
tested and approved in hostile temperature and environmental conditions, which
ensures the adequate power supply to the equipment's performance. Besides the
input and output voltages indicated in the image below, the supply has a short-
circuit and overheating protection.
INPUT:
100 a
240 VAC
OUTPUT

6.6 Electromechanical counter kit

The counter kit presents six digits, from no return to zero, and is located on the
bowl's upper part of the turnstile.
The counter presents pulse input, making it possible to detect turnstile rotations in
a given direction. The device is also capable of counting single pulses (as other
counters available on the market).
Technical characteristics:
Power supply: 24 Vcc - 5 Vcc (battery
eliminator) number of digits: 06 (no return to
zero)Digits size: 5 x 2 mm (height x width)
PHASE
NEUTRAL
GROND WIRE
GND
24V DC / 3A
