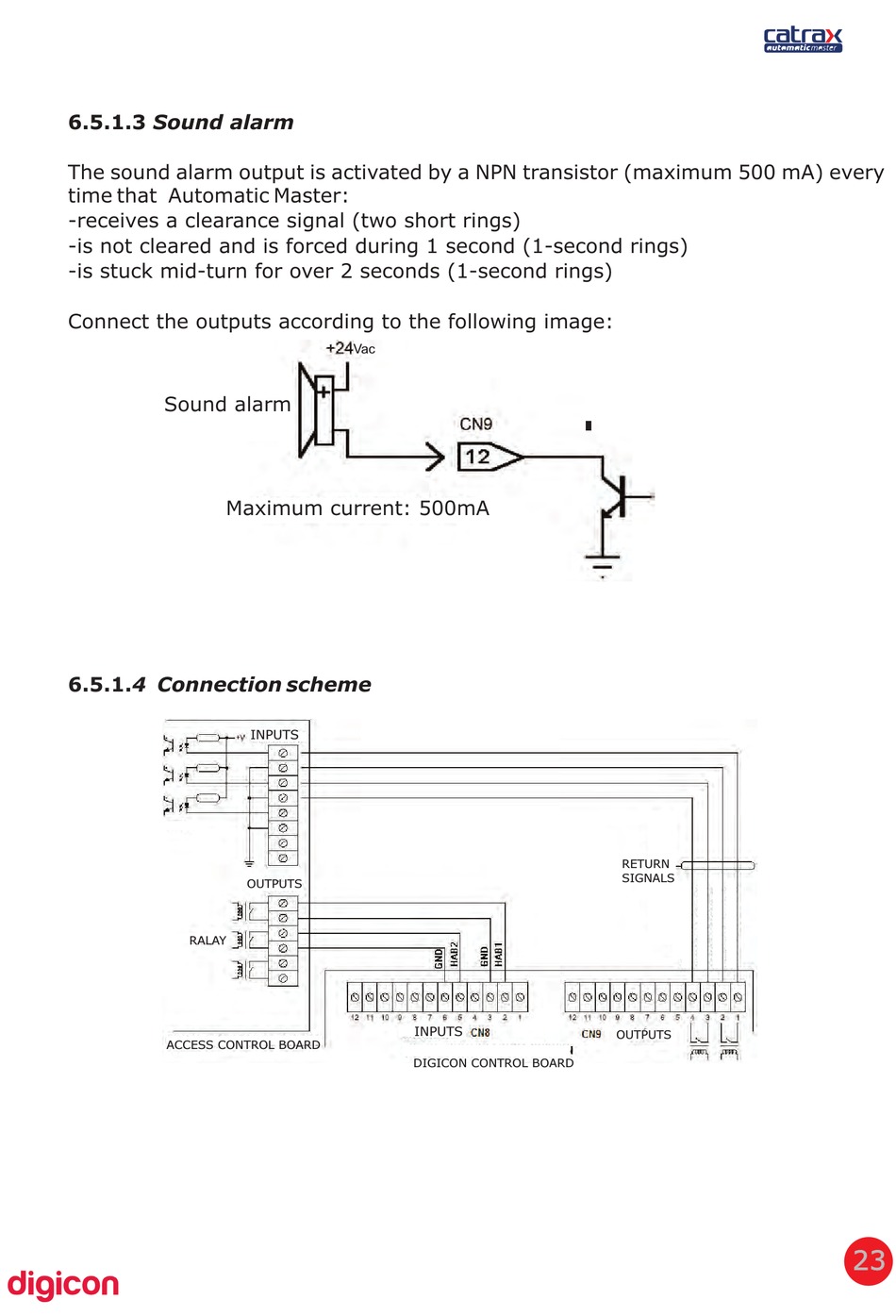

6.5.1.3 Sound alarm

The sound alarm output is activated by a NPN transistor (maximum 500 mA) every
time that Automatic
-receives a clearance signal (two short rings)
-is not cleared and is forced during 1 second (1-second rings)
-is stuck mid-turn for over 2 seconds (1-second rings)
Connect the outputs according to the following image:
Sound alarm
Maximum current: 500mA
6.5.1.4 Connection scheme
RALAY
ACCESS CONTROL BOARD
Master :
Vac
Vca
INPUTS
OUTPUTS
INPUTS
DIGICON CONTROL BOARD
RETURN
SIGNALS
OUTPUTS
23
