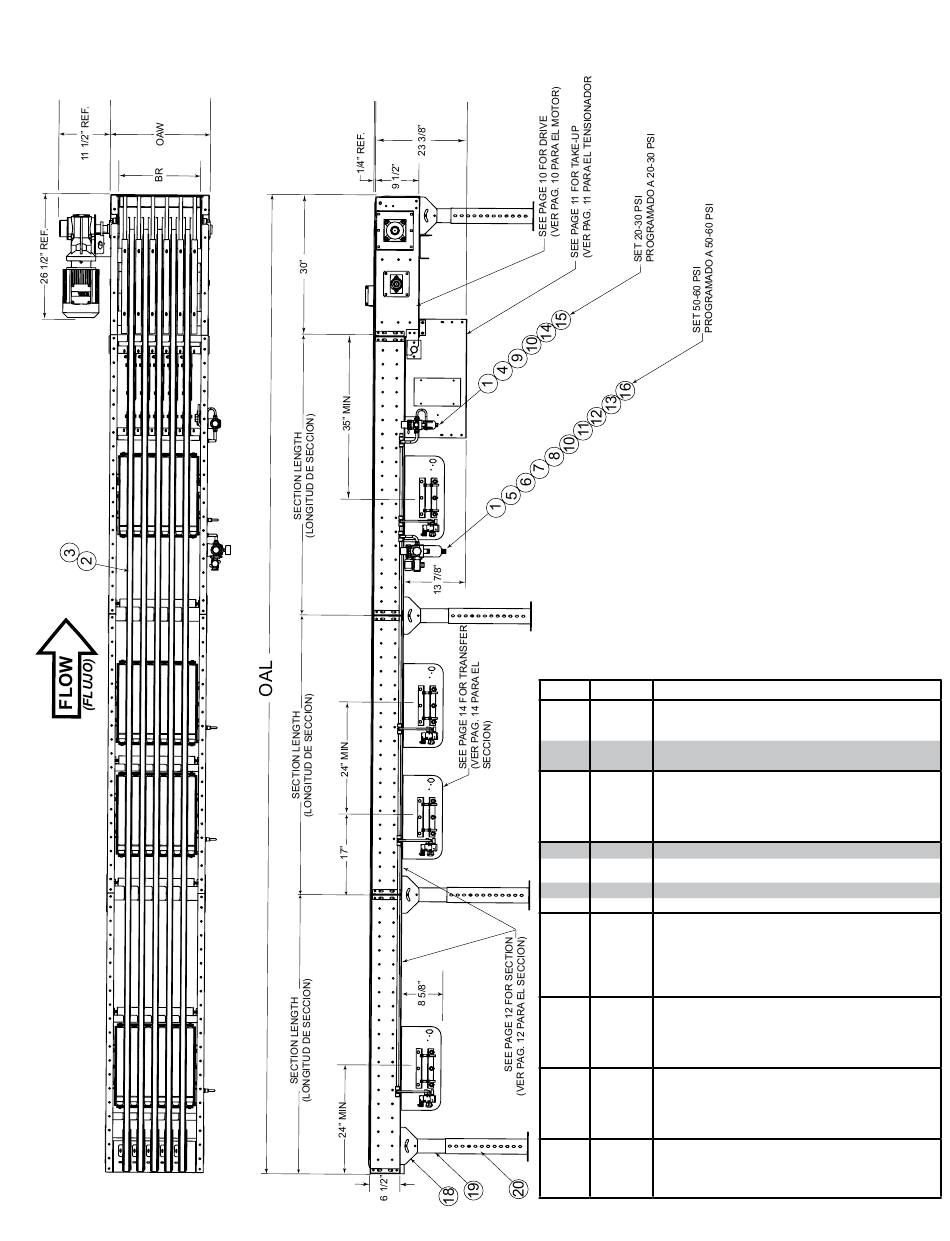

• Model ProSort MRT Parts Drawing and Parts List
Dibujo de Partes del Modelo ProSort MRT
Ref No. Part No.
1 B-11302
2 049.110
3 069.7265
4 094.1149
5 094.11496
6 094.14045
7 094.14089
8 094.1465
9 094.1484
10 094.1485
11 094.190
12 094.1903
13 094.1912
14 094.194
15 910.0004
16 923.0064
17 --
--- B-00913
--- B-02112
18 --
--- B-00914
--- B-12777
--- B-12778
--- B-00915
--- B-00916
--- B-00917
--- B-02098
--- B-00919
--- B-00921
--- B-00923
--- B-00925
--- B-02107
--- B-02109
--- B-02111
19 B-00911
9
description
mounting Angle for filter/Regulator #094.194
SPRING LOCK PIN - 5/32 in. dIA. X 7/8 in. LONG
Belt - 15/16 in. Wide Aramide Power Transmission Belt
Ployurethane Tubing - 3/8 in. Od Black (Specify Length)
Ployurethane Tubing - 1/2 in. Od Black (Specify Length)
Brass Connector Straight male - 1/2 in. Npt - 1/2 in. Plastic
Brass Union Tee - 1/2 in. Plastic -1/2 in. Plastic
Plug-in Reducer - 3/8 in. Plastic - 1/2 in. Push-in
Plastic Plug - 1/4 in. Od Push-in Type
Plastic Plug - 3/8 in. Od Push-in Type
Air Line filter/Regulator W/Bracket - 1/2 in. Npt
1/2 in. Spacer for Airline Components
Air Line Pressure Switch - 24 VdC, Normal Open
Air Line filter/Regulator W/Bracket
manifold - 3/8 in. Inlet, 1/4 in Outlet
Lock Out Tag
mS Pivot Plate - 1-1/2 in. flange
3-11/16 in. High
1-9/16 in. High
floor Support frame
6 in. High (Specify OAW)
7 in. High (Specify OAW)
8 in. High (Specify OAW)
9 in. High (Specify OAW)
11-1/2 in. High (Specify OAW)
14-1/2 in. High (Specify OAW)
18-1/2 in. High (Specify OAW)
22-1/2 in. High (Specify OAW)
32-1/2 in. High (Specify OAW)
44-1/2 in. High (Specify OAW)
56-1/2 in. High (Specify OAW)
68-1/2 in. High (Specify OAW)
78-1/2 in. High (Specify OAW)
90-1/2 in. High (Specify OAW)
Adjustable foot Assembly (Specify Length)
