Prosort Mrt Take-Up Parts Drawing; Prosort Mrt Take-Up Parts List - HYTROL ProSort MRT Installation And Maintenance Manual

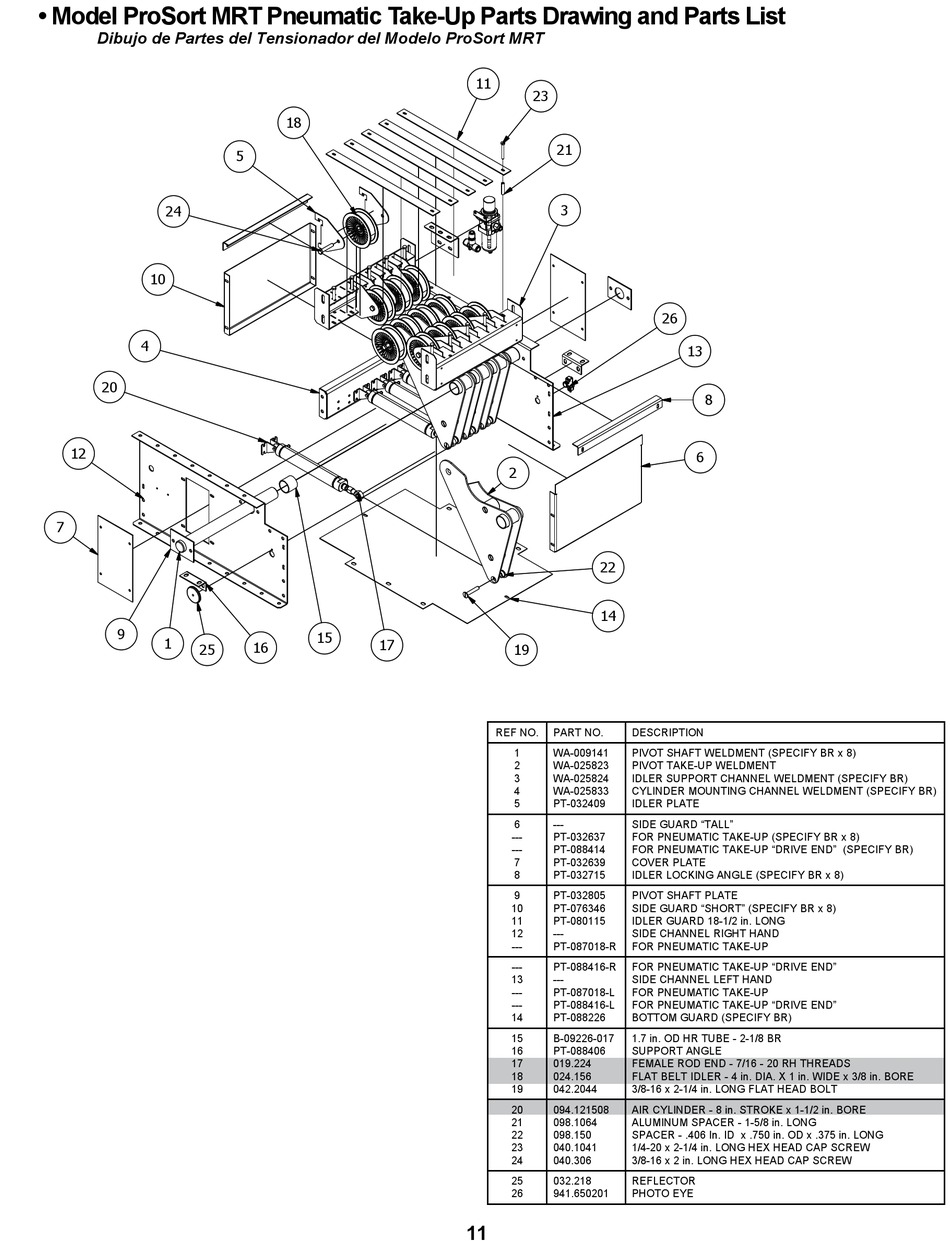

• Model ProSort MRT Pneumatic Take-Up Parts Drawing and Parts List
Dibujo de Partes del Tensionador del Modelo ProSort MRT
24
10
4
20
12
7
9
1
25
THIS DRAWING CONTAINS CONFIDENTIAL
DESIGNS AND INFORMATION WHICH ARE
THE PROPERTY OF HYTROL CONVEYOR
COMPANY INC. THIS DRAWING AND THE
INFORMATION CONTAINED HEREIN MAY NOT
BE DISCLOSED OR DUPLICATED IN WHOLE
OR PART, UTILIZED IN ANY OTHER WORK, OR
USED FOR MANUFACTURE OF DESIGNS
WITHOUT THE PRIOR WRITTEN PERMISSION
OF HYTROL CONVEYOR COMPANY INC.
18
5
15
17
16
11
23
21
3
2
22
14
19
REf NO. PART NO. dESCRIPTION
B
1 WA-009141 PIVOT SHAfT WELdmENT (SPECIfY BR x 8)
HYTROL
2 WA-025823 PIVOT TAKE-UP WELdmENT
3 WA-025824 IdLER SUPPORT CHANNEL WELdmENT (SPECIfY BR)
HYTROL
4 WA-025833 CYLINdER mOUNTING CHANNEL WELdmENT (SPECIfY BR)
CONVEYOR CO., INC.
5 PT-032409 IdLER PLATE
JONESBORO, ARKANSAS
6 --- SIdE GUARd "TALL"
MODELS
--- PT-032637 fOR PNEUmATIC TAKE-UP (SPECIfY BR x 8)
STANDARD TOLERANCES
--- PT-088414 fOR PNEUmATIC TAKE-UP "dRIVE ENd" (SPECIfY BR)
DRAWN BY
UNLESS OTHERWISE SPECIFIED
7 PT-032639 COVER PLATE
FRACTIONS ±1/64
8 PT-032715 IdLER LOCKING ANGLE (SPECIfY BR x 8)
CHECKED BY
DECIMALS ±.005
ANGLES ±1°
9 PT-032805 PIVOT SHAfT PLATE
PAINT CLASS
10 PT-076346 SIdE GUARd "SHORT" (SPECIfY BR x 8)
11 PT-080115 IdLER GUARd 18-1/2 in. LONG
12 --- SIdE CHANNEL RIGHT HANd
--- PT-087018-R fOR PNEUmATIC TAKE-UP
--- PT-088416-R fOR PNEUmATIC TAKE-UP "dRIVE ENd"
13 --- SIdE CHANNEL LEfT HANd
--- PT-087018-L fOR PNEUmATIC TAKE-UP
--- PT-088416-L fOR PNEUmATIC TAKE-UP "dRIVE ENd"
14 PT-088226 BOTTOm GUARd (SPECIfY BR)
15 B-09226-017 1.7 in. Od HR TUBE - 2-1/8 BR
16 PT-088406 SUPPORT ANGLE
17 019.224 fEmALE ROd ENd - 7/16 - 20 RH THREAdS
18 024.156 fLAT BELT IdLER - 4 in. dIA. X 1 in. WIdE x 3/8 in. BORE
19 042.2044 3/8-16 x 2-1/4 in. LONG fLAT HEAd BOLT
20 094.121508 AIR CYLINdER - 8 in. STROKE x 1-1/2 in. BORE
21 098.1064 ALUmINUm SPACER - 1-5/8 in. LONG
22 098.150 SPACER - .406 In. Id x .750 in. Od x .375 in. LONG
23 040.1041 1/4-20 x 2-1/4 in. LONG HEX HEAd CAP SCREW
24 040.306 3/8-16 x 2 in. LONG HEX HEAd CAP SCREW
25 032.218 REfLECTOR
26 941.650201 PHOTO EYE
11
26
13
8
6
MRT PNEUMATIC TAKE-UP
Zach Phillips
SPARE PART
DWG N
DATE
DATE
REVIS
