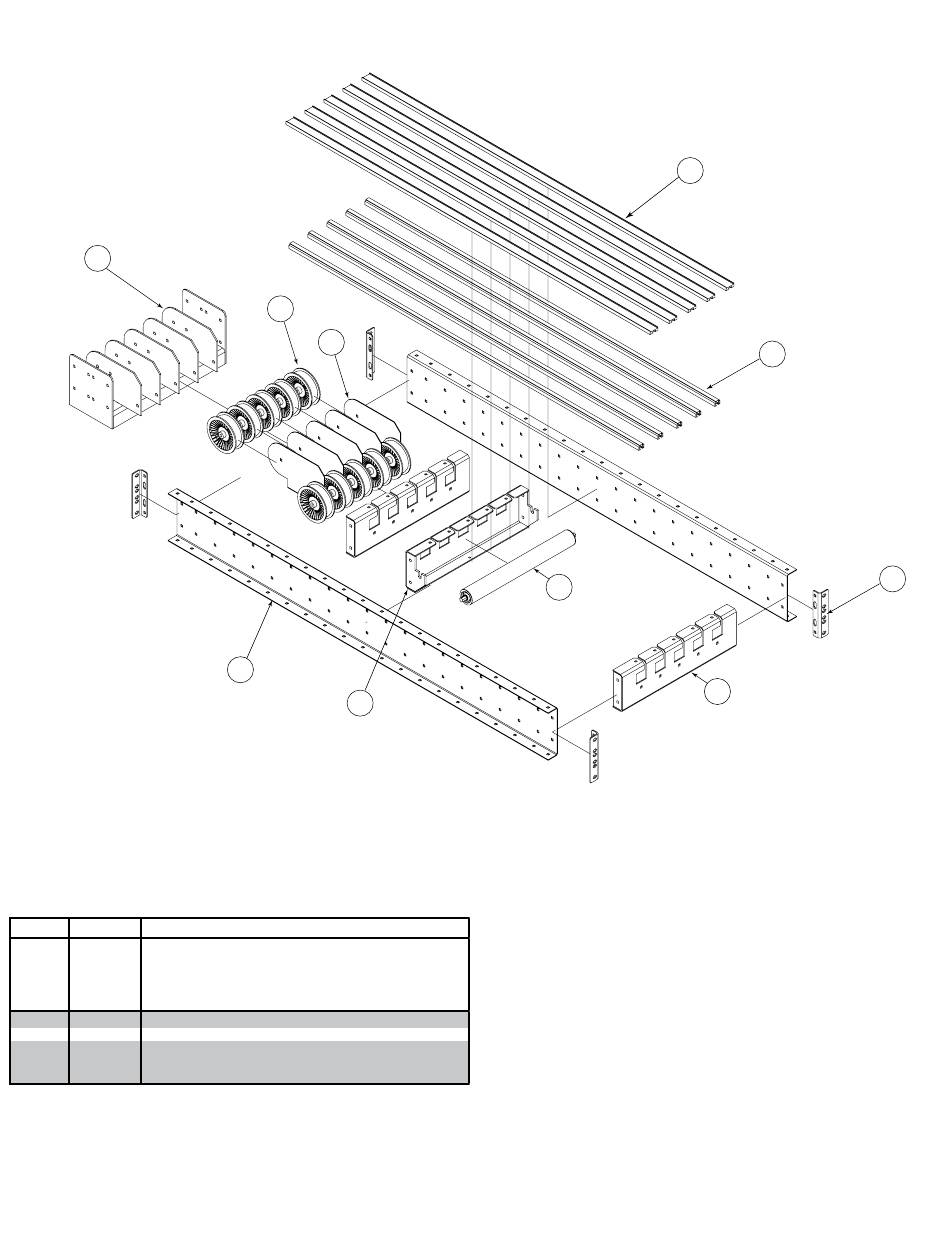

• Model ProSort MRT Section Parts Drawing and Parts List
Dibujo de Partes de Sección del Modelo ProSort MRT
2
REf NO. PART NO. dESCRIPTION
1 WA-025804 Brace Channel Weldment (Specify BR x 8)
2 WA-025834 Tail Idler Weldment (Specify BR x 8)
3 WA-025999 Brace Channel Weldment "discharge End" (Specify BR x 8)
4 PT-087011 Side Channel - 6-1/2 in. High (Specify Length)
5 PT-087223 Belt Guard
6 PT-088292 Belt Guide Wearstrip - Inter/Tail Section (Specify Length)
7 B-03191 Butt Coupling Angle
8 B-18590 Guide Rail Extrusion - Inter/Tail Section (Specify Length)
9 B-20760 1.9 in. Od Galv Return Roller - ABEC-1 (Specify BR -1-1/4 x 8)
10 024.157 flat Belt Idler 4 in. dia. X 1-1/4 in. Wide x 3/4 in. Bore
10
5
4
1
9
12
6
8
3
7
