• HyPower Cabling Installation
HYPOWER CONNECTIONS
(CONEXIONES HYPOWER)
GROUND
(TIERRA)
• HyPower Cabling Components
Single-Sided Disconnect Box
This disconnect box has a 15 Amp service requirement and provides a dis-
connect means for up to 3 transfers at 230 volts or 6 transfers at 460 volts.
The maximum distance for any motor from this disconnect box is 50'. Any dis-
tance over 50' requires an additional inline disconnect. (See fig. 7B & 7C)
Double-Sided Disconnect Box
This disconnect box has a 30 Amp service requirement and provides a dis-
connect means for up to 6 transfers at 230 volts or 12 transfers at 460 volts.
This disconnect box has the capability of covering 100' of conveyor when
located in the middle of the span. Any motor further than 50' from the discon-
nect box requires an additional inline disconnect. (See fig. 7A & 7d)

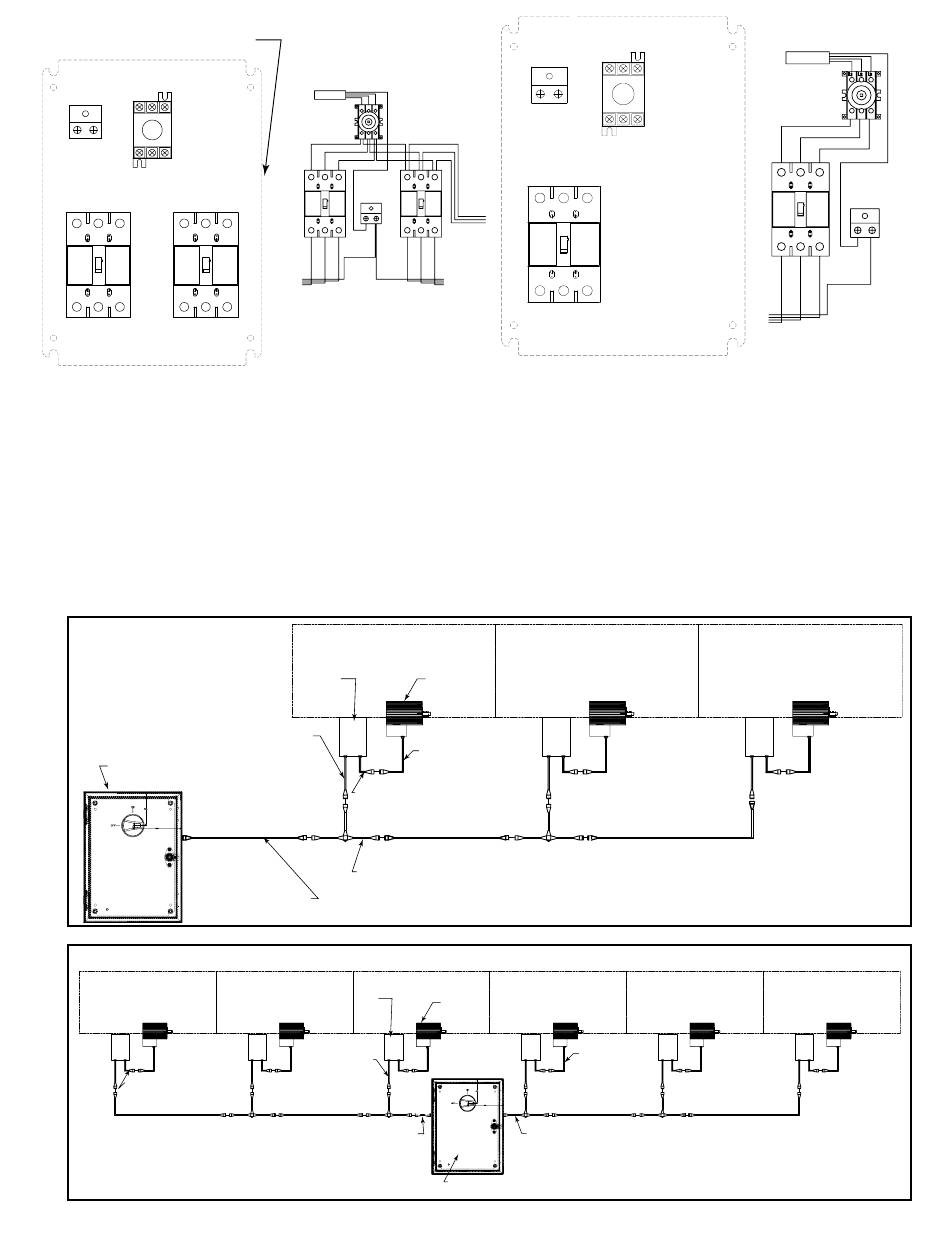

FIGURE 7C
SINGLE DICONNECT
MALE SINGLE END HYPOWER CABLE
(CABLE HYPOWER MACHO DE
TERMINACIÓN "SINGLE-END")
SINGLE SIDED DISCONNECT BOX
(CAJA DE DESCONEXIÓN DE UN SOLO LADO )
FIGURE 7D DOUBLE DICONNECT
FEMALE SINGLE END
HYPOWER CABLE
(CABLE HYPOWER HEMBRA DE
TERMINACIÓN "SINGLE-END")
DOUBLE ENDED HYPOWER EXTENSION CABLE
(
FIGURE 7A
INCOMING THREE-PHASE POWER
(CORRIENTE TRIFÁSICA ENTRANTE)
L1 L2 L3
GROUND
(TIERRA)
VFD
(VFD)
FEMALE SINGLE END HYPOWER CABLE
(CABLE HYPOWER HEMBRA DE
HYPOWER T-CONNNECTOR
(CONECTOR EN T HYPOWER)
DOUBLE ENDED
HYPOWER EXTENSION CABLE
(CABLE DE EXTENSIÓN HYPOWER DE DOBLE TERMINACIÓN )
VFD
(VFD)
MALE SINGLE END
HYPOWER CABLE
(CABLE HYPOWER
MACHO DE TERMINACIÓN
"SINGLE-END")
CABLE DE EXTENSIÓN HYPOWER DE DOBLE TERMINACIÓN)
Double-Ended HyPower Extension Cable
Supplies power from the disconnect box down the conveyor to each HyPower
T-Connector. (See fig. 7C & 7d)
HyPower T-Connector
Power is supplied to the T-Connector via the Extension Cable. The
T-Connector is used as a power drop for each Variable frequency drive and
motor. (See fig. 7C & 7d)
Male Single-End HyPower Cable
This cable will come pre-wired to each Variable frequency drive as well as to
each divert motor. (See fig. 7C & 7d)
Female Single-End HyPower Cable
This cable will come pre-wired to each Variable frequency drive and supplies
power to each divert motor from the Variable frequency drive. (See fig. 7C
& 7d)
MOTOR
(MOTOR)
MALE SINGLE END
HYPOWER CABLE
(CABLE HYPOWER MACHO
DE TERMINACIÓN "SINGLE-END")
TERMINACIÓN "SINGLE-END")
MOTOR
(MOTOR)
MALE SINGLE END
HYPOWER CABLE
(CABLE HYPOWER
MACHO DE
TERMINACIÓN
"SINGLE-END")
HYPOWER T-CONNNECTOR
(CONECTOR EN T HYPOWER)
DOUBLE SIDED DISCONNECT BOX
(CAJA DE DESCONEXIÓN DE AMBOS LADOS)
7
FIGURE 7B
INCOMING THREE-PHASE POWER
(CORRIENTE TRIFÁSICA ENTRANTE)
GROUND
(TIERRA)
L1 L2 L3
GROUND
(TIERRA)
