Prosort Mrt 30 Transfer Parts Drawing; Prosort Mrt 30 Transfer Parts List - HYTROL ProSort MRT Installation And Maintenance Manual

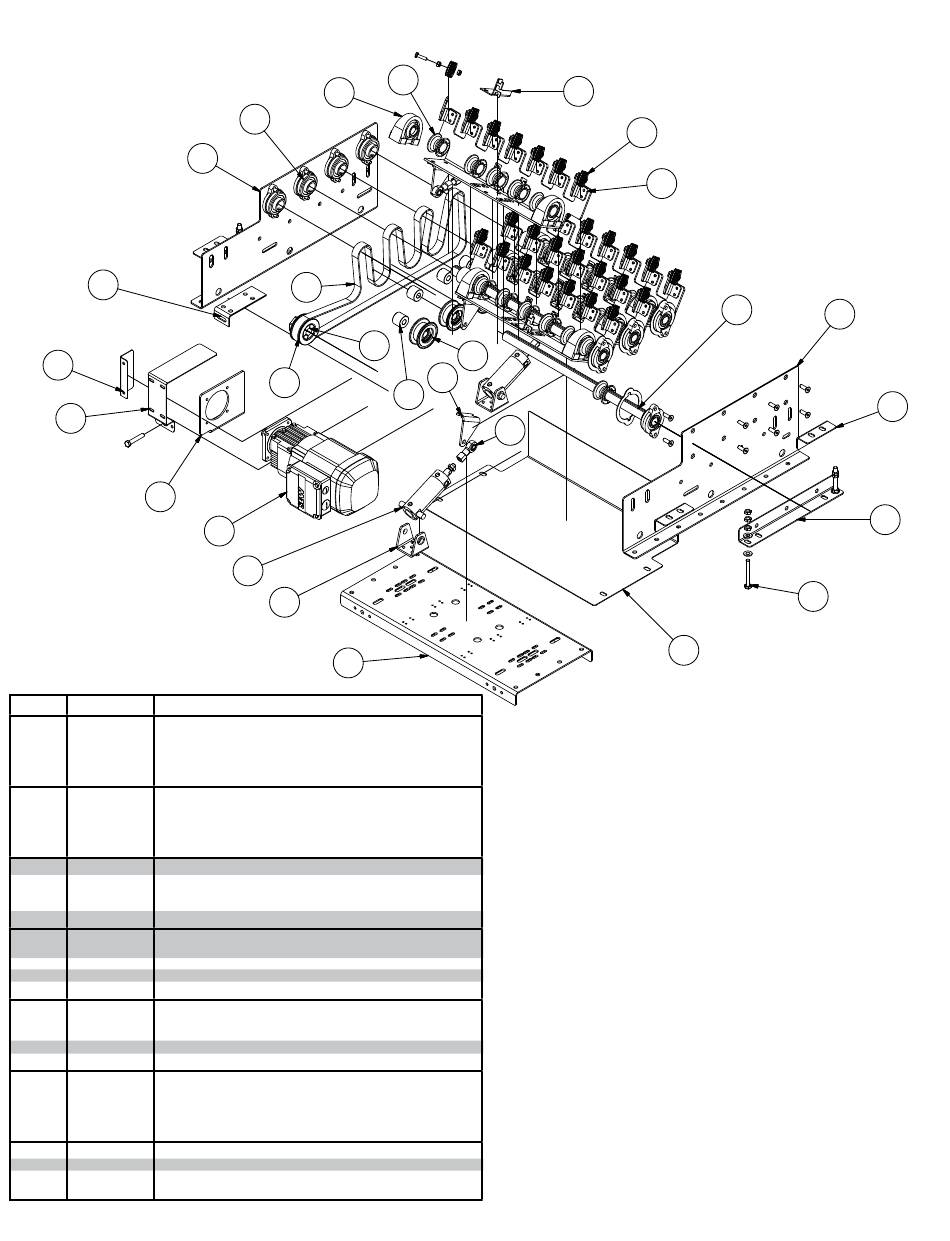

• Model ProSort MRT 30° Transfer Parts Drawing and Parts List
Dibujo de Partes de 30° Transferencia del Modelo ProSort MRT
25
22
21
24
REf NO. PARTS NO. dESCRIPTION
1 PT-112594 CYLINdER SUPPORT CHANNEL (SPECIfY BR)
2 --- dIVERTER SUPPORT ANGLE
--- PT-118430-R dIVERTER SUPPORT ANGLE - RH, 15 in. BR
--- PT-112587-R dIVERTER SUPPORT ANGLE - RH, 18-27 in. BR
3 --- dIVERTER SUPPORT ANGLE
--- PT-118430-L dIVERTER SUPPORT ANGLE - LH, 15 in. BR
--- PT-112587-L dIVERTER SUPPORT ANGLE - LH, 18-27 in. BR
4 PT-112611 BOTTOm GUARd (SPECIfY BR)
5 B-17611 dRIVE SHAfT - fULL KEYWAY (SPECIfY BR)
6 010.351 TAPPEd BASE PILLOW BLOCK
7 094.4101 dRIVE SPOOL - 2 in. dIA.
8 PT-112263 SPARE O-RING HOLdER
9 PT-112634 dIVERTER ATTACHmENT ANGLE
10 019.224 fEmALE ROd ENd - 7/16 - 20 RH THREAdS
11 024.15502 fLAT 1 in. BELT dRIVE WHEEL - 2-1/2 in. dIA.
12 099.128420 KEYLESS BUSHING - 20mm Id x 45mm Od
13 024.158 fLAT BELT IdLER - 2-3/4 in. dIA. X 1.15 in. WIdTH
14 040.309 3/8-16 x 3 in. LONG HEX BOLT - fULL THREAd
15 069.72487 fLEXPROOf ENdLESS BELT - 3/16 in. WIdTH x 86 in. LENGTH
16 PT-111452 dIVERTER PIVOT ANGLE - 30 dEGREE
17 094.10652 AIR CYLINdER - 2 in. STROKE, 40mm BORE
18 094.106521 TRUNNION BRACKET fOR AIR CYLINdER 40mm
19 098.1675 SPACER - 0.515 in. Id x 1.25 in. Od x 1 in. LENGTH
20 300.03225 GEARmOTOR - 1/2 hp, 230/460/3, 462 rpm
21 PT-111510 SIdE GUARd
22 PT-111852 ENd GUARd
23 PT-112499 dIVERTER TAKE-UP ANGLE
24 --- mOTOR SUPPORT ANGLE
--- PT-112586-R mOTOR SUPPORT ANGLE - RH
--- PT-112586-L mOTOR SUPPORT ANGLE - LH (SHOWN)
25 PT-112633 BELT TAKE-UP ANGLE
26 024.14375 dIVERTER WHEEL 1.75in. dIA.
27 PT-106162 dIVERT WHEEL SUPPORT ANGLE
28 010.0021 2-BOLT fLANGE BEARING - 1 in. BORE
6
28
2
15
12
11
20
17
18
1
THIS DRAWING CONTAINS CONFIDENTIAL
DESIGNS AND INFORMATION WHICH ARE
THE PROPERTY OF HYTROL CONVEYOR
COMPANY INC. THIS DRAWING AND THE
INFORMATION CONTAINED HEREIN MAY NOT
BE DISCLOSED OR DUPLICATED IN WHOLE
OR PART, UTILIZED IN ANY OTHER WORK, OR
USED FOR MANUFACTURE OF DESIGNS
WITHOUT THE PRIOR WRITTEN PERMISSION
OF HYTROL CONVEYOR COMPANY INC.
7
8
13
16
19
10
14
26
27
5
4
B
HYTROL
HYTROL
CONVEYOR CO., INC.
JONESBORO, ARKANSAS
MODELS
STANDARD TOLERANCES
DRAWN BY
UNLESS OTHERWISE SPECIFIED
FRACTIONS ±1/64
CHECKED BY
DECIMALS ±.005
ANGLES ±1°
PAINT CLASS
3
9
23
14
DIVERT ASSY - LH, 21"B
Zach Phillips
P
SPARE PART
