¡IMPORTANTE!
IMPORTANT!
NO DESTRUIR
DO NOT DESTROY
Installation
Manual
and
de Instalación
Maintenance
y
Manual
Mantenimiento
con Información sobre Seguridad
with Safety Information
y Lista de Refacciones
and Parts List
LAS REFACCIONES RECOMENDADAS SE RESALTAN EN GRIS
RECOMMENDED SPARE PARTS HIGHLIGHTED IN GRAY
Effective July 2019

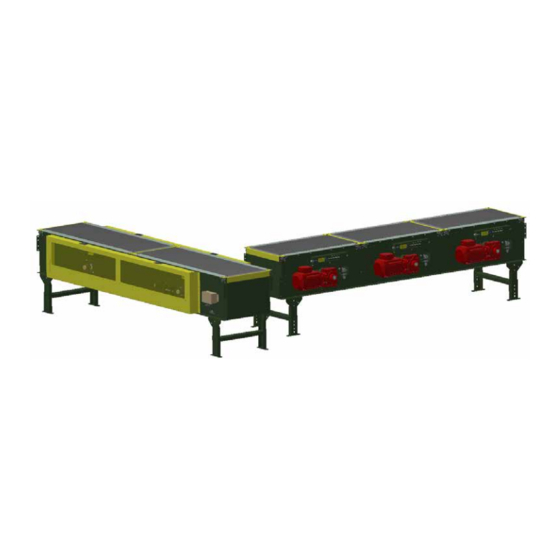

Model Gapper-D & Gapper-O
Bulletin #732
HYTROL | Jonesboro, Arkansas
Copyright © 1947–2019 Hytrol. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HYTROL Gapper-D
Summary of Contents for HYTROL Gapper-D
- Page 1 Lista de Refacciones and Parts List LAS REFACCIONES RECOMENDADAS SE RESALTAN EN GRIS RECOMMENDED SPARE PARTS HIGHLIGHTED IN GRAY Effective July 2019 Model Gapper-D & Gapper-O Bulletin #732 HYTROL | Jonesboro, Arkansas Copyright © 1947–2019 Hytrol. All rights reserved.
-
Page 2: Table Of Contents
REPLACEMENT PARTS Gapper-D Drawing & Parts List....8 Gapper-O Drawing & Parts List....9 Model Auto-Tracker Drawing &... -
Page 3: Safety Information
In an effort to reduce the possibility of injury to personnel working and emergency situations. around HYTROL conveying equipment, safety labels are placed at various points on the equipment to alert them of potential hazards. Where employee safety is dependent upon stopping and/or Please check equipment and note all safety labels. -
Page 4: Installation
INSTALLATION All such emergency stop devices shall be easily identifiable in the immediate vicinity of such locations unless guarded by location, position, or • Electrical Equipment guards. Where the design, function, and operation of such conveyor clearly is not hazardous to personnel, an emergency stop device is not required. The emergency stop device shall act directly on the control of the WARNING! Electrical controls shall be installed and wired by a qualified conveyor concerned and shall not depend on the stopping of any other... -
Page 5: Ceiling Hanger Installation
FIGURE 5C SIDE CHANNEL DWG NO THIS DRAWING CONTAINS CONFIDENTIAL HYTROL DESIGNS AND INFORMATION WHICH ARE Conveyor_Setup THE PROPERTY OF HYTROL CONVEYOR HYTROL (CANAL LATERAL) CONVEYOR CO., INC. COMPANY INC. THIS DRAWING AND THE JONESBORO, ARKANSAS INFORMATION CONTAINED HEREIN MAY NOT... -
Page 6: Belt Replacement
• Belt Replacement Product Flow FIGURE 6A The conveyor belt has been cut to the proper length and spliced (Flujo de producto) 2-1/4" Dia. Tail Pulley together for endless joining. To replace a belt, follow these steps: (Polea de retorno de Auto Belt Tracker 1. -
Page 7: Trouble Shooting
2. Low voltage to motor. 2. Have electrician check and correct as necessary. 3. Low lubricant level in reducer. 3. Relubricate per manufacturer’s recommendations. For HYTROL reducer, refer to reducer manual. Belt does not move, but drive runs. 1. Conveyor is overloaded. -
Page 8: Gapper-D Drawing & Parts List
• Gapper-D Drawing & Parts List • Dibujo y lista de piezas de Gapper-D DISCHARGE ZONE INFEED ZONE Ref. Ref. Part No. Description Part No. Description P-04148-OAL(RH/LH) Side Channel - (Specify OAL, Slave Location, RH or LH) 043.203 1/2" ID Split Lockwasher, Medium, Zinc Plated SA-081776-(BR) 2-1/4"... -
Page 9: Gapper-O Drawing & Parts List
• Dibujo y lista de piezas de Gapper-O • Gapper-O Drawing & Parts List INFEED ZONE INTERMEDIATE ZONE DISCHARGE ZONE Ref. Ref. Part No. Description Part No. Description 010.204501 Bearing - Cast Iron, 4-Bolt, 1-11/16"BOR P-03362-(OAL)L Side Channel - (Specify OAL)L 040.100 1/4-20 X 3/4"LG Hex Head Cap Screw, Zinc Plated P-03362-(OAL)R... -
Page 10: Auto-Tracker Drawing & Parts List
• Auto-Tracker Drawing & Parts List • Dibujo y lista de piezas de alineador automático Ref. Part No. Description WA-052520-(BR) Belt Tracker Attachment Weld - (Specify BR) SA-079151-(BR) 2-1/4"DIA Tracker Pulley - (Specify BR) 042.671 1/2-13 X 1-1/4"LG Hex Socket Flat Head Cap Screw PT-189693-(BR) Pivot Plate - 2-1/4"Tail, Tracker, (Specify BR) 040.100... -
Page 11: Spring Take-Up Drawing & Parts List
• Spring Take-Up Drawing & Parts List • Dibujo y lista de piezas de la compensación de resorte Ref. Part No. Description WA-050024 Take-Up Weld - Spring Tension 954.0186 Die Spring - 1"DIA X 6"LG, (BLUE) PT-180973 Take-Up Lug - Spring Take-Up WA-050057 Take-Up Bolt Weld 041.796... -
Page 12: Spanish Version
• Operación Dibujo y Lista de Partes del Gapper-D ......8 Dibujo y Lista de Partes del Gapper-O ......9 A) Sólo los empleados capacitados están autorizados a operar los transportadores. - Page 13 • Equipo Eléctrico de parada de emergencia, cordones de parada de emergencia, interruptores de límite o dispositivos similares para paradas de emergencia. Todos estos dispositivos de parada de emergencia deberán ser fácilmente ¡PRECAUCIÓN! Debido a la cantidad de partes en movimiento del transportador, identificables en las cercanías inmediatas a estos puntos potencialmente peligrosos, a todo el personal en el área debe ser notificado cuando el transportador sea puesto no ser que estén protegidos dada su ubicación, posición o protegidos con guardas.
- Page 14 (Polea de compensación) DWG NO SIDE CHANNEL THIS DRAWING CONTAINS CONFIDENTIAL HYTROL DESIGNS AND INFORMATION WHICH ARE Conveyor_Setup THE PROPERTY OF HYTROL CONVEYOR HYTROL (CANAL LATERAL) CONVEYOR CO., INC. COMPANY INC. THIS DRAWING AND THE JONESBORO, ARKANSAS INFORMATION CONTAINED HEREIN MAY NOT...
- Page 15 3. Hay bajo nivel de lubricante en el reductor. 3. Vuelva a lubricar de acuerdo con las recomendaciones del fabricante. En el caso de reductores HYTROL, consulte el manual del reductor. La correa no se mueve, pero la transmisión 1. El transportador está sobrecargado.
- Page 16 • Planned Maintenance Checklist Note: Check Set Screws after the first 24 hours of operation. (Nota: Revise los tornillos de fijación después de las primeras 24 horas de operación.) • Lista de comprobación de mantenimiento planificado Schedule (Horario) Component Suggested Action (Componente) (Sugerencia) Weekly...
