Check IGN
Status
Power Management
⚫ Power-off delay time is selectable by Software to disable and enable in 0-255
minutes
⚫ Ignition On/Off status detectable by SW
⚫ If the ignition is off and the system is still on after 3 Sec, VBOX-3611-4L will shut
down automatically.
⚫ If the ignition is turned on again and the power-off delay is in progress, VBOX-3611-
4L will cancel the delay function and will continue to operate normally.
⚫ If the ignition is turned on again and the power-off delay ended, VBOX-3611-4L will
shut down completely will power-on again automatically.
User's Manual
IGN off (Low)

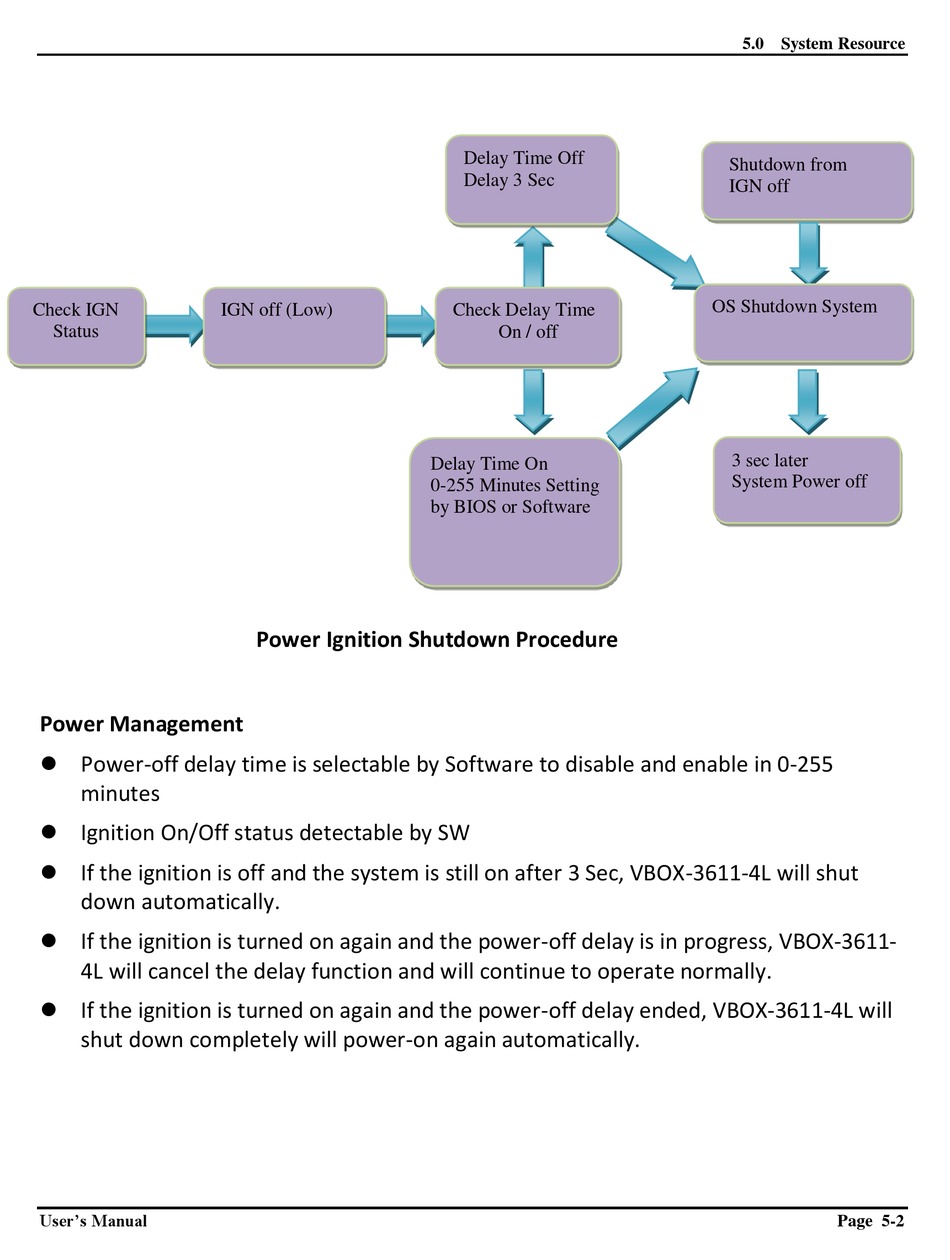

Power Ignition Shutdown Procedure
Delay Time Off
Delay 3 Sec
Check Delay Time
On / off
Delay Time On
0-255 Minutes Setting
by BIOS or Software
5.0 System Resource
Shutdown from
IGN off
OS Shutdown System
3 sec later
System Power off
