COM JST Connector (COM4)

Connector 2 X 5 = 10 Pin
size
Connector JST-2.0mm-M-180
type
Connector COM4
location
Connector
pin
definition
Connector

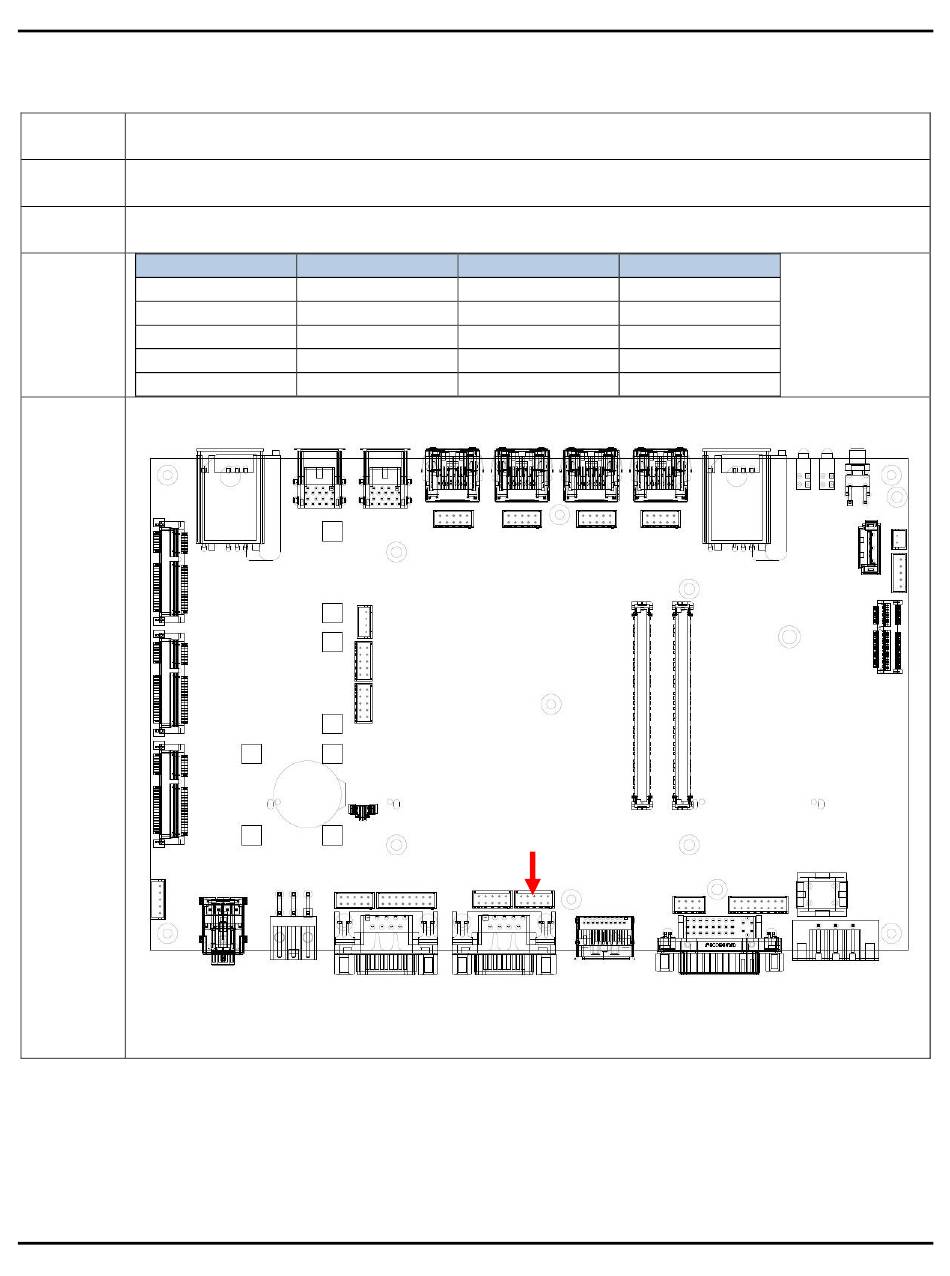

map
User's Manual
Pin Signal
1 COM4_DCD
3 COM4_TXD
5 GND
7 COM4_RTS
9 COM4_RI
2.0 Internal Connector Specification
Pin Signal
2 COM4_RXD
4 COM4_DTR
6 COM4_DSR
8 COM4_CTS
10 GND
COM4
Page 2-11
