3.6

USB3.0 Connector (USB1)

Connecto 18 Pin
r size
Connecto USB3.0 Type A
r type
Connecto USB1
r location
Connecto
r pin
definition

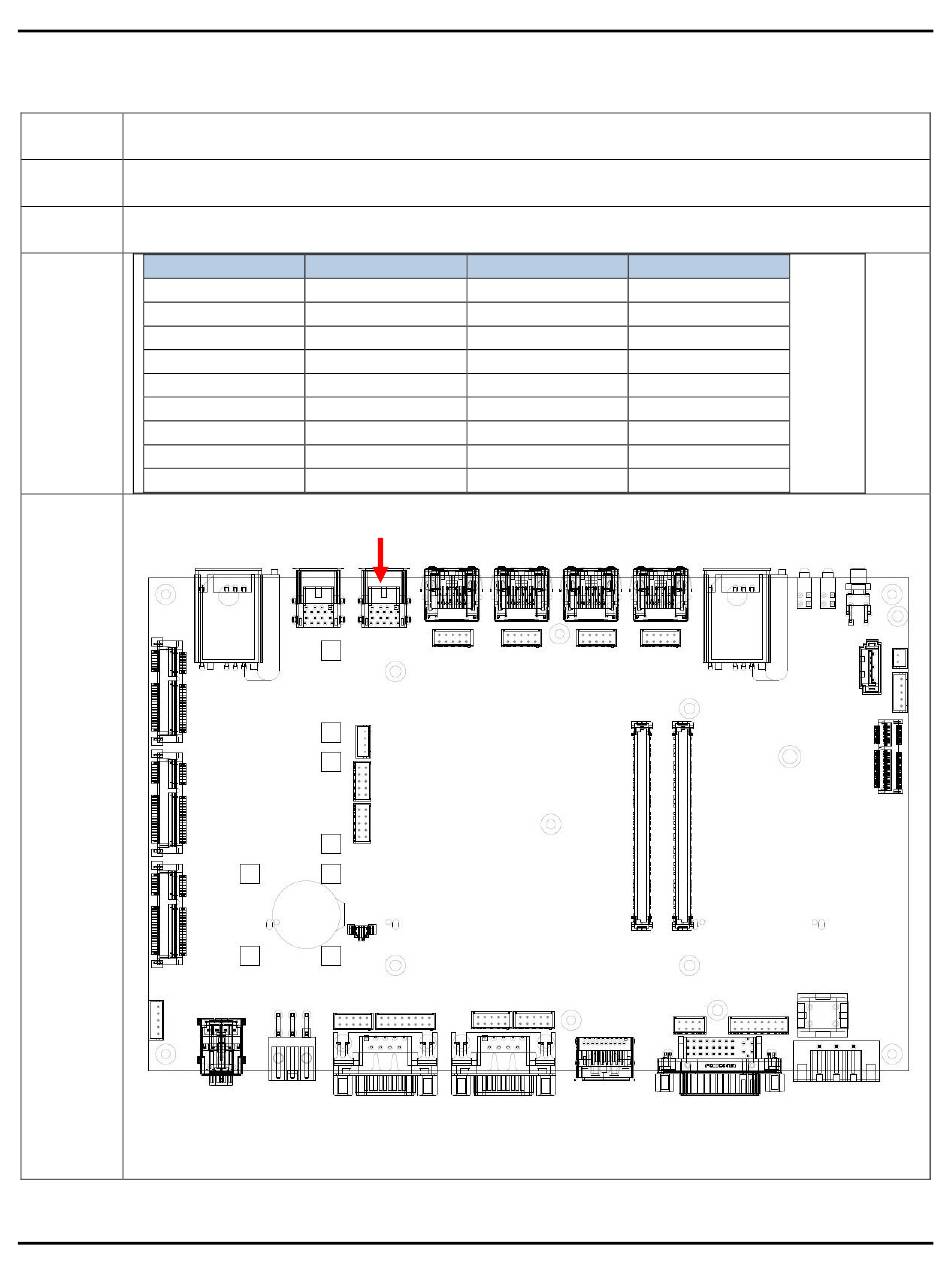

Connecto
r map
User's Manual
Pin Signal
1 5VSB
3 USB_0P
5 USB3_SSRX_0N
7 GND
9 USB3_SSTX_0P
11 USB_1N
13 GND
15 USB3_SSRX_1P
17 USB3_SSTX_1N
USB1
3.0 External Connector Specification
Pin Signal
2 USB_0N
4 GND
6 USB3_SSRX_0P
8 USB3_SSTX_0N
10 5VSB
12 USB_1P
14 USB3_SSRX_1N
16 GND
18 USB3_SSTX_1P
Page 3-6
