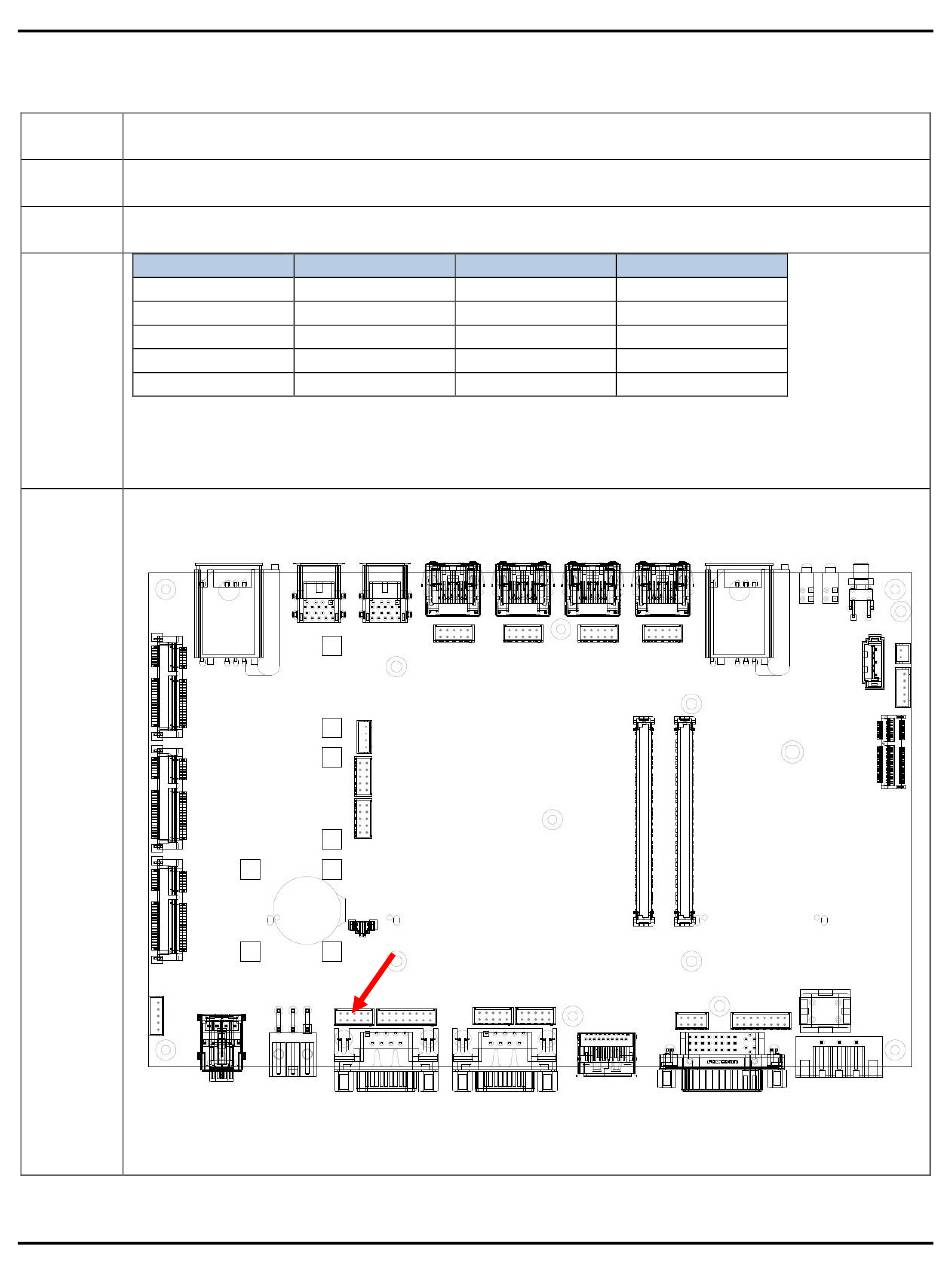

DIO1 JST Connector

Connecto 2 X 5 = 10 Pin
r size
Connecto JST-2.0mm-M-180
r type
Connecto DIO1
r location
Connecto
r pin
definition
GPI: High= 5V~48V; Low= 0V
GPO: 5V/100mA for each
Connecto
r map
User's Manual
Pin Signal
1 DI_1
3 DI_3
5 DO_1
7 DO_3
9 GND
Pin
2
4
6
8
10
DIO1
2.0 Internal Connector Specification
Signal
DI_2
DI_4
DO_2
DO_4
+12V
Page 2-9
