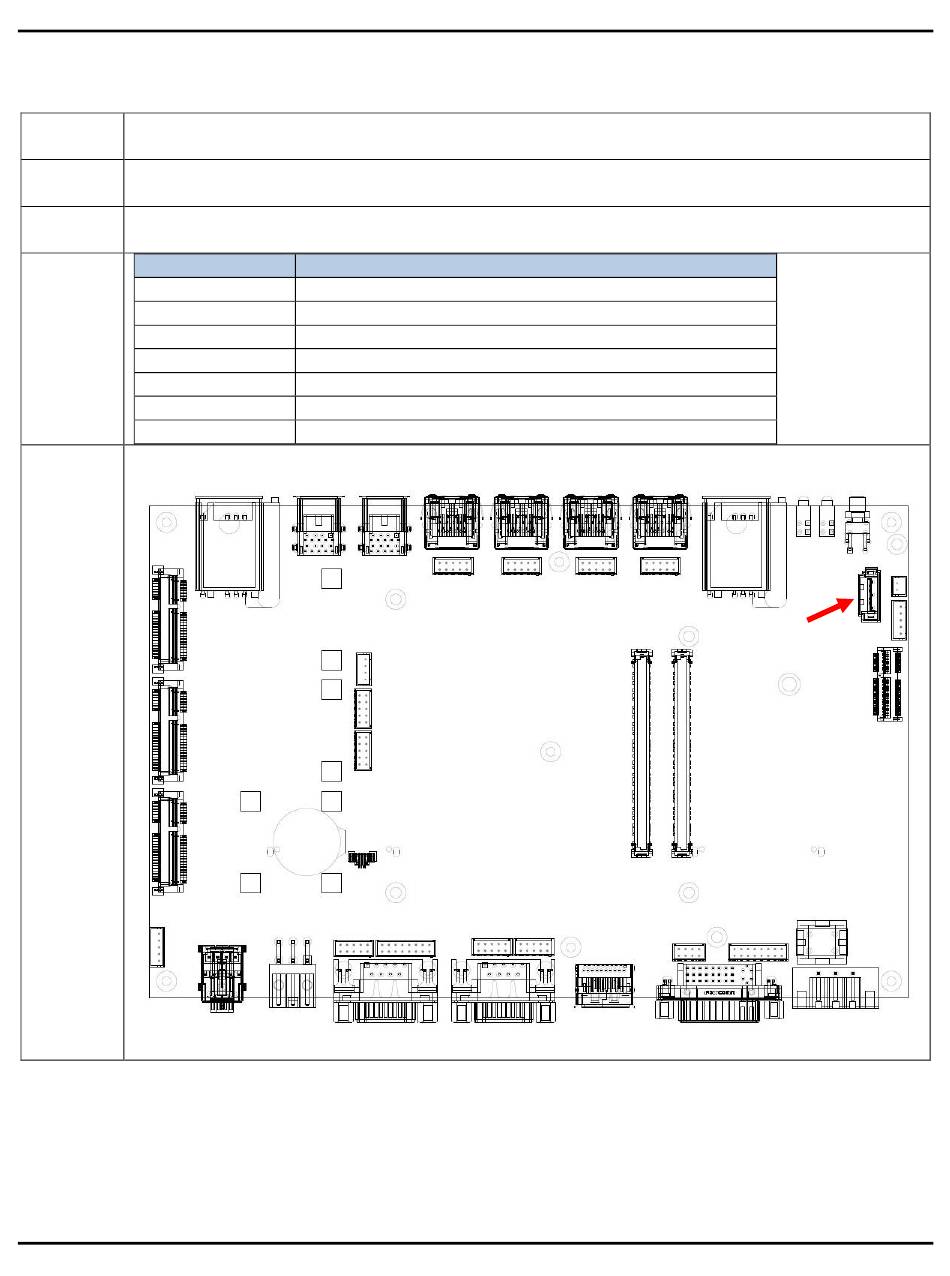

2.9
SATA Connector
Connector
1 X 7 = 7 Pin
size
Connector
SATA 1.27mm-M-180D
type
Connector
SATA3
location
Connector
pin
definition
Connector
map
User's Manual
Pin
1
GND
2
SATA_TXP2
3
SATA_TXN2
4
GND
5
SATA_RXN2
6
SATA_RXP2
7
GND
2.0 Internal Connector Specification
Signal
SATA3
Page 2-13
