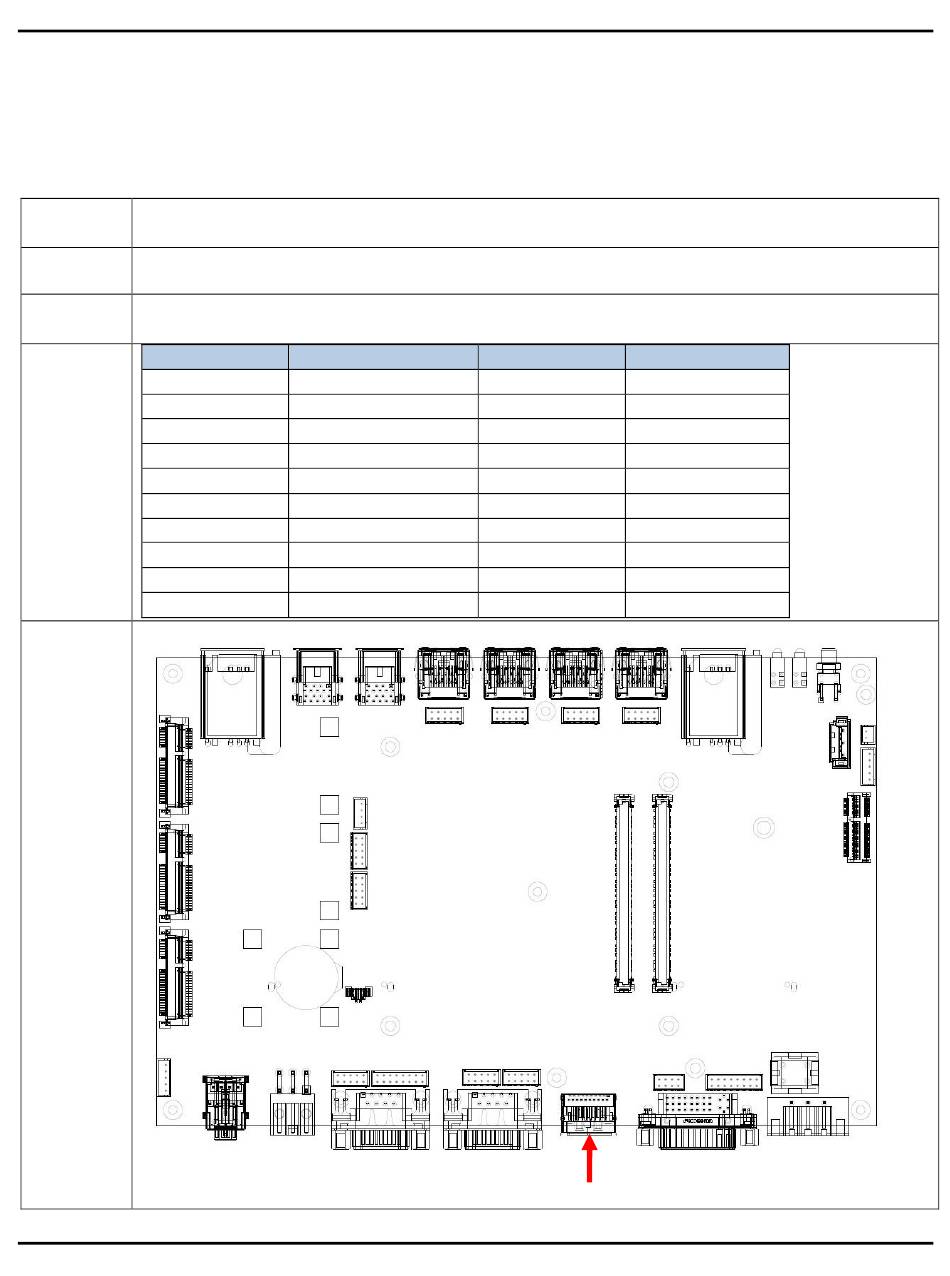

3.0 EXTERNAL CONNECTOR SPECIFICATION
3.1

DP Connector

Connector 20 Pin
size
Connector DP
type
Connector DP1
location
Connector
pin
definition
Connector
map
User's Manual
Pin Signal
1 DP_LANE_0P
3 DP_LANE_0N
5 GND
7 DP_LANE_2P
9 DP_LANE_2N
11 GND
13 DP_AUX_EN#
15 DP_AUXP_CLK
17 DP_AUXN_DATA
19 GND
3.0 External Connector Specification
Pin Signal
2 GND
4 DP_LANE_1P
6 DP_LANE_1N
8 GND
10 DP_LANE_3P
12 DP_LANE_3N
14 GND
16 GND
18 DP_HPD
20 DP_VCC+3V
DP1
Page 3-1
