4.0 System Installation
4.7

Installing M.2 Module

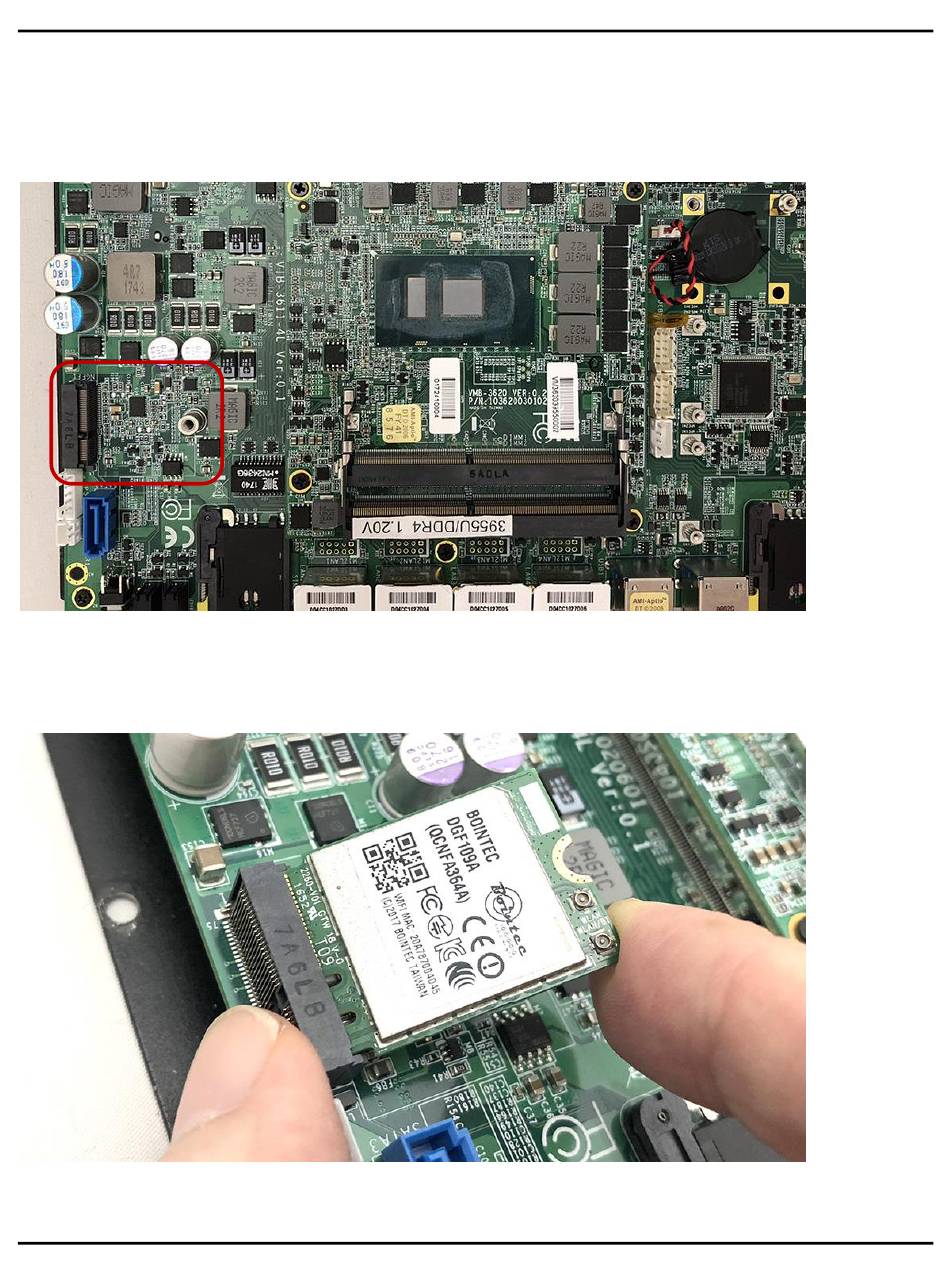

Step 2. Put M.2 Card on this place as shown in the picture.
Step 2. Hold the Module with its notch aligned with the socket of the board and insert it
at a 30 degree angle into the socket as shown in the picture.
