Securam ProLogic L66 Operation Instructions Manual page 8

ProLogic L66

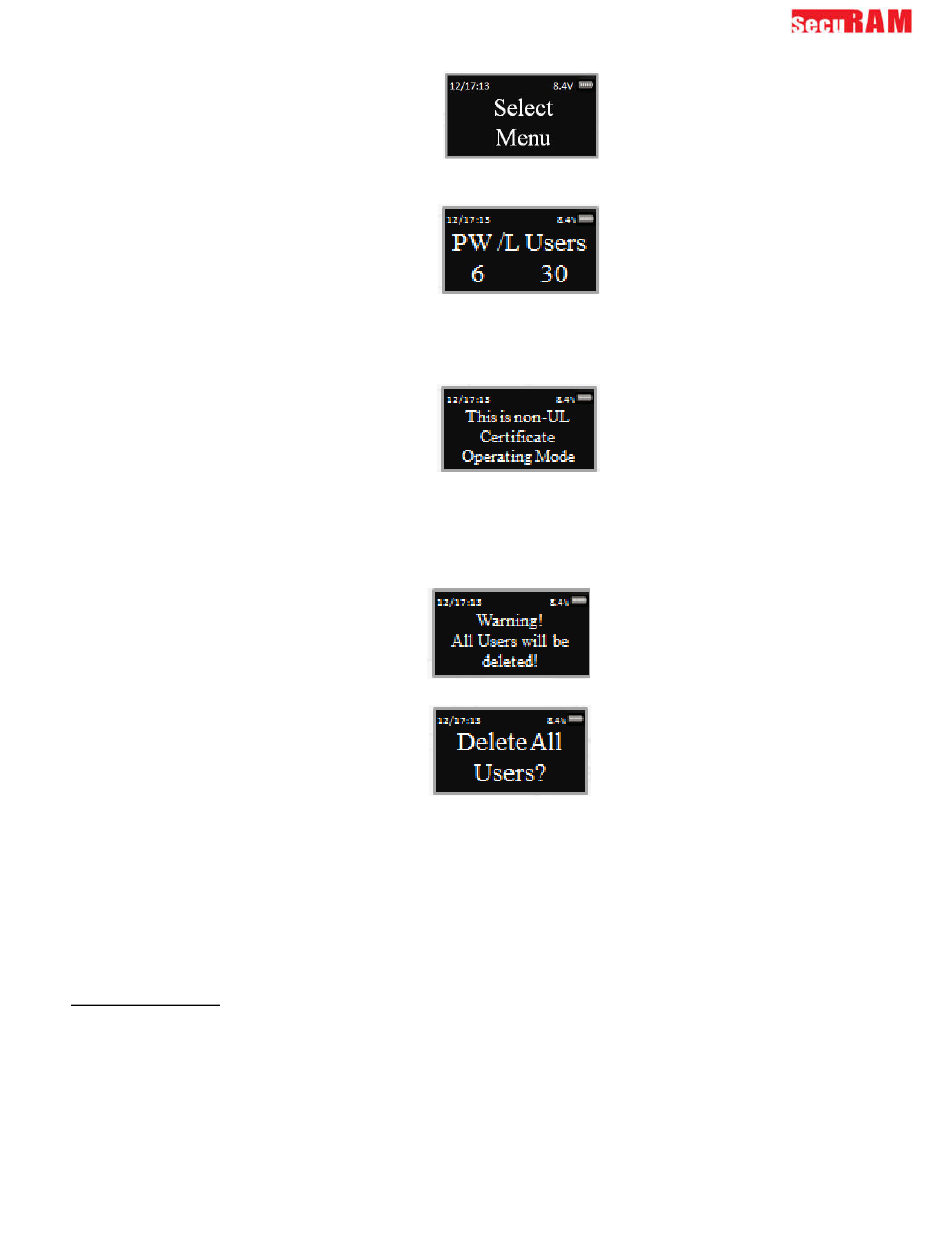

Step 4: Scroll  and  to the menu selection "PW L – 6; Users – 30" and Press OK
Step 5: The LCD will display a message to indicate that this setting does not meet the UL
requirement.
Step 6: The LCD will then display a warning followed by "Delete All Users?", press OK to
confirm.
All users have been deleted.
IMPORTANT: The LCD will advise if a reset is required to finalize the programming. If required, follow
the Mechanical Reset procedure outlined in 15.4 Mechanical Reset.
The code length will now be 6 digits and the total available users will be 30.
The Super Code ID00 will now be 1-1-1-1-1-1
The Manager Code ID01 will now be 1-2-3-4-5-6
3.0 Lock Operation
Upon initial power up, the LCD screen starts a communications test as shown below:
Including Model Number

Software Version Number

No. of Users/ No. Users Programmed

Lock ID#/Host ID#

Model Name

Operation Instructions
8
