SafeLogic TopLit Series Operating Instructions

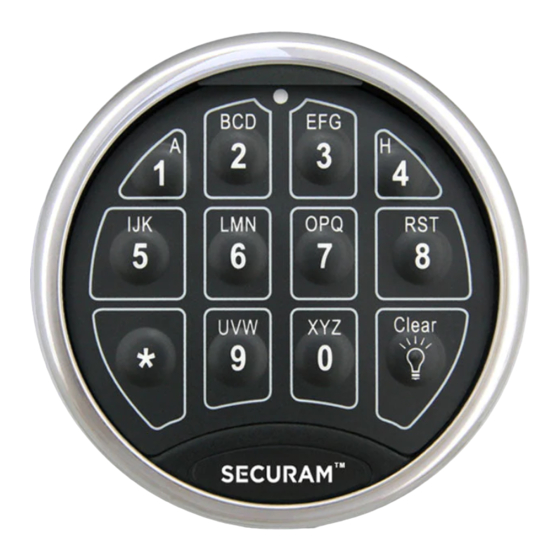

This manual is for the SafeLogic TopLit Series EC-0601A-PL series EntryPad used in conjunction
with EL-0601, EL-0701, EL-0801 or EL-0901 lock bodies.
Important:
● For indoor use only.
● Battery Low Voltage: 5.2 ± 0.2V. The display will alert low battery when battery voltage
reaches 5.2±0.2V. PLEASE REPLACE THE BATTERY IMMEDIATELY.
Battery Replacement Instructions
The safe lock system is powered by (1) 9V alkaline battery. The battery is housed inside the
EntryPad.
Follow the steps below to replace the battery.
1.

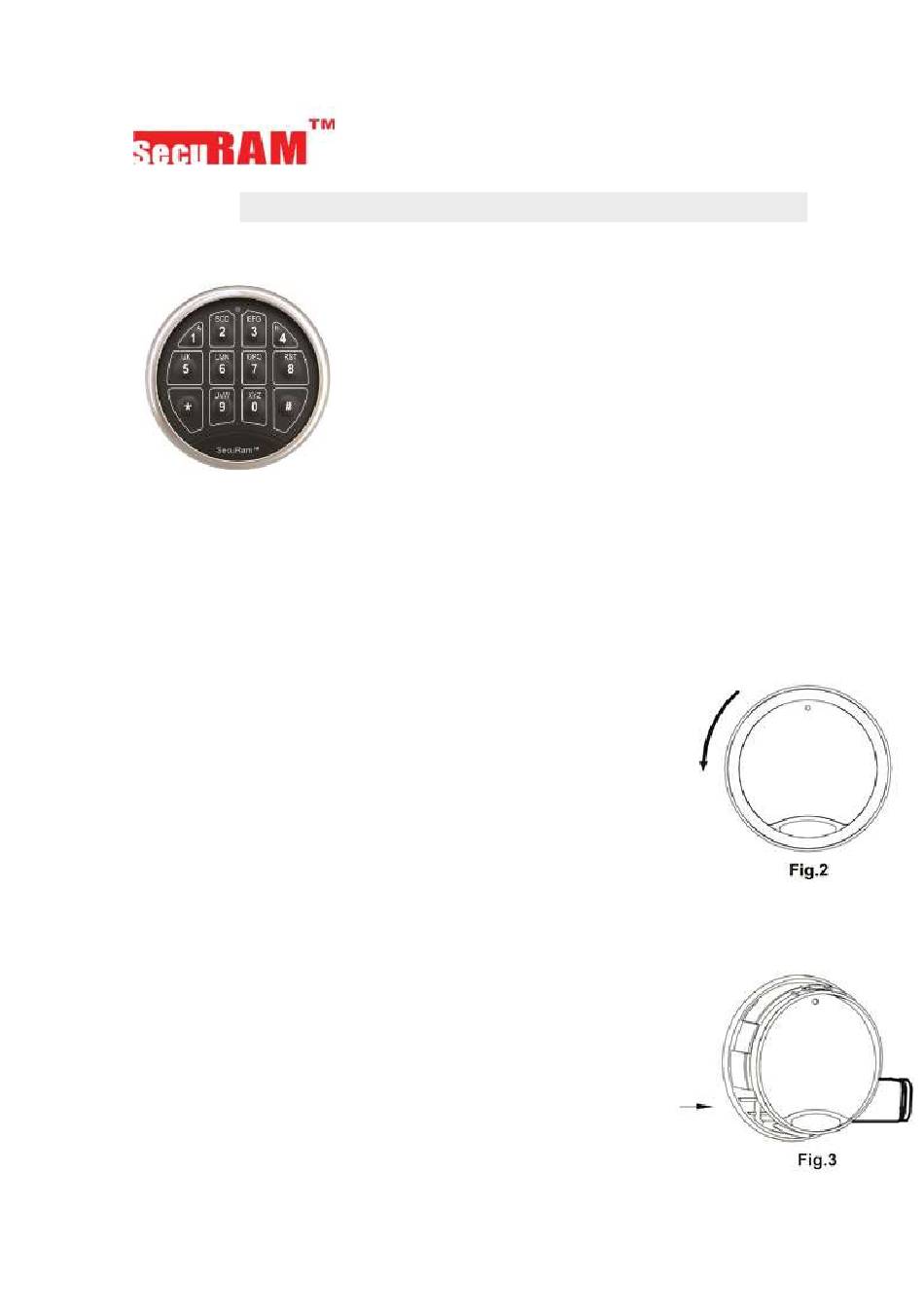

Turn the housing ring counterclockwise until it cannot move
(about 20°), then pull it off from the entrypad base. See Fig.2.
2.
Push the battery from the bottom left side of the entrypad and unsnap the battery
from the connecter. See Fig.3.
3.
Snap a new 9V alkaline battery onto the battery clip and put it
back into the compartment by pushing it from the right side.
Note: Tuck the cable into the the compartment and make sure the cable
does not get caught in the housing ring.
Version No.: V1.01 USER
1
Doc.No.:PLU-EC0601APL130402
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Securam SafeLogic TopLit Series
Summary of Contents for Securam SafeLogic TopLit Series
- Page 1 Doc.No.:PLU-EC0601APL130402 Version No.: V1.01 USER SafeLogic TopLit Series Operating Instructions This manual is for the SafeLogic TopLit Series EC-0601A-PL series EntryPad used in conjunction with EL-0601, EL-0701, EL-0801 or EL-0901 lock bodies. Important: ● For indoor use only. ● Battery Low Voltage: 5.2 ± 0.2V. The display will alert low battery when battery voltage reaches 5.2±0.2V.
- Page 2 There are three alignment tabs on the inside of the housing ring and three corresponding grooves on the entrypad base. Locate the housing ring and slide it onto the base. See Fig.4. Then turn the ring clockwise until a click sounds. Fig.
- Page 3 Standby Current : <50μA Active Current: <20mA Battery Low Voltage: 5.2±0.2V Working Temperature: 0 ~ +49 Working Humidity (max): <90% Code Length: 6 Digits Mechanical System Life Span: >10,000 Cycles (UL requirement) >100,000 Cycles (SecuRam design criteria) SecuRam Systems Inc. U.S.A.
