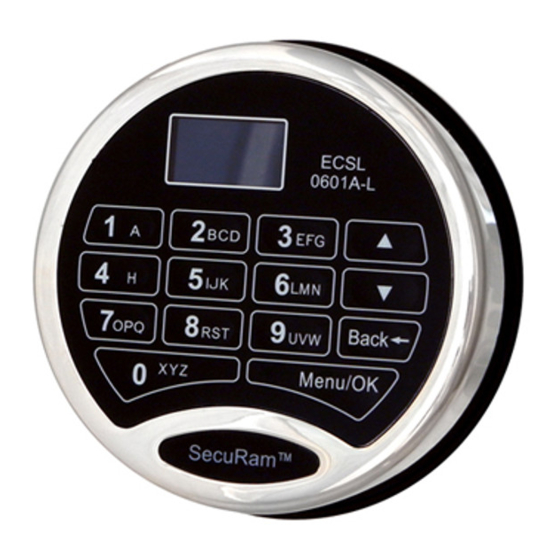

Securam ProLogic B01 Operating Instructions

ProLogic B01 Operating Instructions
Important:
For indoor use only.
●
Use one 9V alkaline battery. Manufacturer recommends to use
●
Duracell or Energizer
TM
high quality performance, otherwise controller might not work well.
Low Battery Alert: The display will alert low battery when battery voltage
●
reaches 5.4±0.2V. PLEASE REPLACE THE BATTERY IMMEDIATELY.
Operations, such as enrolling or deleting, are not permitted.
Battery Replacement Instructions
1) In the back of Entry Pad you will see one 9 V alkaline battery. Take the
battery out of the battery compartment.
2) Gently remove the connector by unsnapping it from the two terminals on
the top of the battery.
Never Pull on the Battery Leads.
3) Connect a new 9 V battery to the battery clip.
4) Put the battery and the leads completely back into the battery
compartment.
For mounting and wiring information refer to the installation instruction
in this manual.
SecuRam Systems Inc. USA.
Document No.: 1U-EC0601AB01140415
Version No.: V1.01 USER

Bluetooth Connectivity


 2 Codes; 1 Manager Code, 1 User
 Super Code
 Enable/Disable User Codes
 Penalty Time after 4 incorrect code entries = 5 min
Can be paired with any SecuRam lock body

Alkaline batteries. Always use alkaline battery for
®
Page 1
