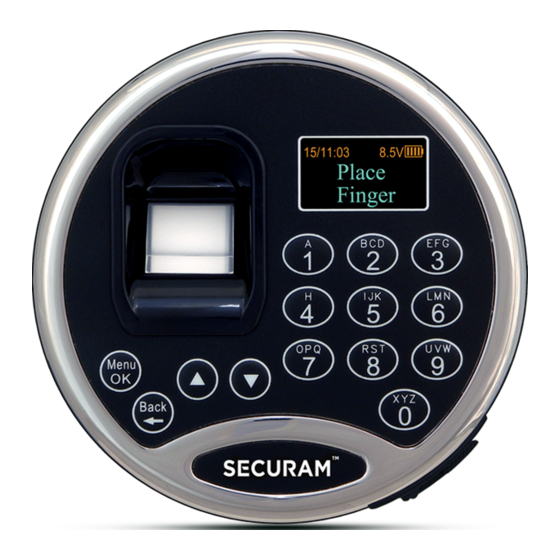

Securam ScanLogic D66 Operation Manual

Biometric safe lock system
Hide thumbs

Advertisement

Quick Links

Download this manual
Document No.: FPC0601AD66-201222
Version No.:150213

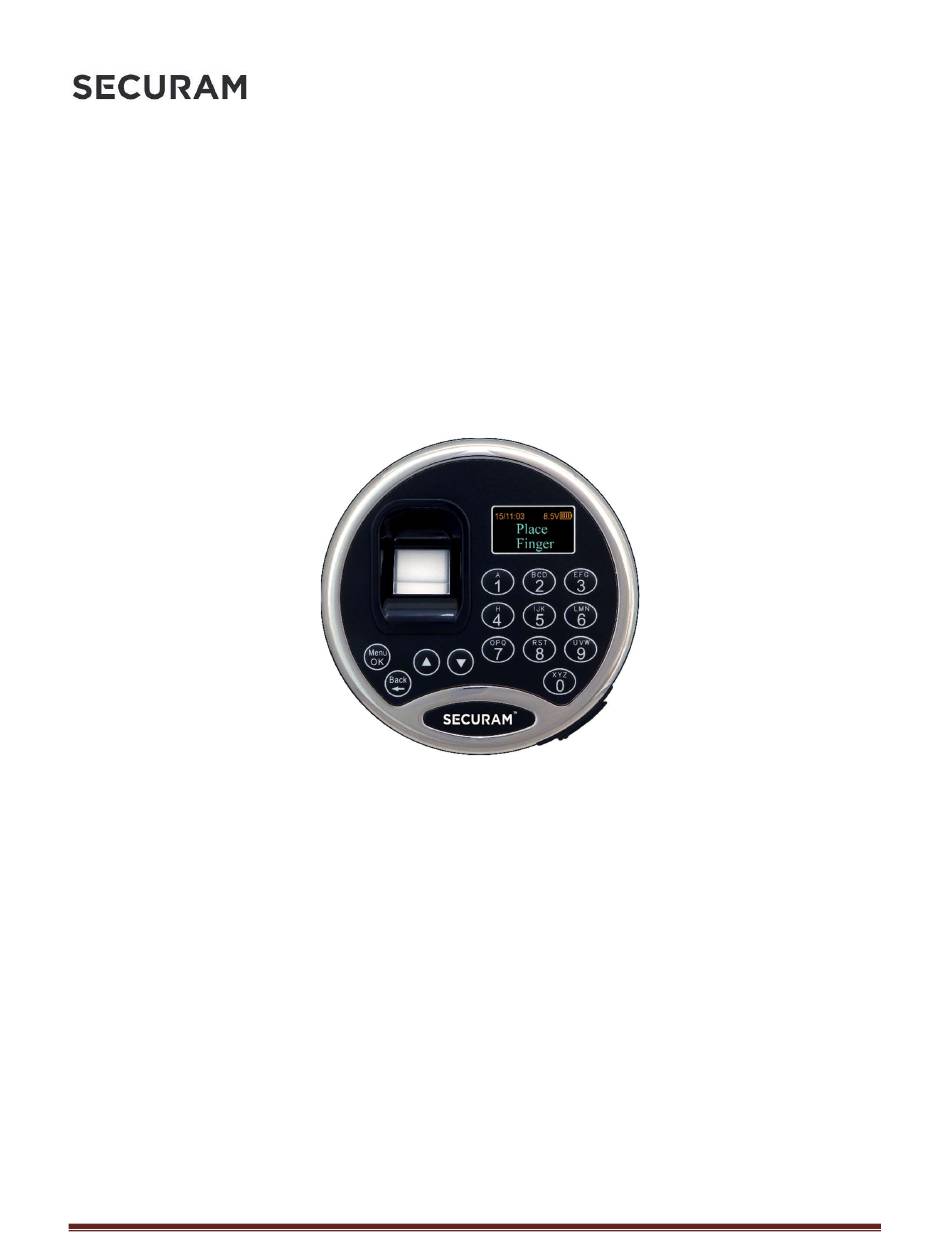

ScanLogic D66
FPC-0601A-D66
Model:
Biometric Safe Lock System
Operation Guide
SECURAM Systems Inc.
ScanLogic D66 Operation Guide
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ScanLogic D66 and is the answer not in the manual?

Questions and answers

Related Manuals for Securam ScanLogic D66

Summary of Contents for Securam ScanLogic D66

  • Page 1 Document No.: FPC0601AD66-201222 Version No.:150213 ScanLogic D66 FPC-0601A-D66 Model: Biometric Safe Lock System Operation Guide SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 1...
  • Page 2 Table of Contents Section 1.0 Enroll the first fingerprint Section 1.1 Unlocking the ScanLogic D66 – Lock Operation Section 2.0 Enroll the second fingerprint Section 3.0 Enroll additional fingerprints Section 4.0 Set/Change User Code Section 5.0 Enable User Code Section 6.0 Disable User Code Section 7.0...
  • Page 3                                SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 3...
  • Page 4 For mounting and wiring information refer to the installation instructions. 1.0 Enrolling the first fingerprint (Security Level 3) Step 1: Install a brand new 9V alkaline battery in the ScanLogic D66 EntryPad. Step 2: Place your finger on the fingerprint scanner, the LCD screen will show “Welcome” and then “Set Time/Date”.
  • Page 5 Step 5: Follow the Steps 5 and 6 in Section 2.0 to enroll additional fingerprints. 4.0 Set/Change User Code (Level 3) The ScanLogic D66 is capable or registering not only fingerprints but also 6 digit codes for each enrolled fingerprint. To Set or Change a User code, perform the following process: Step 1: Press “Menu/OK”.
  • Page 6 Step 3: Place an enrolled administrator’s finger (ID No. 01 or 02) on the scanner and hold. Step 4: After the fingerprint is verified successfully, press “▲” or “▼” to select “Disable User Code”, press “Menu/Ok”. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 6...
  • Page 7 9.0 Set Time Delay (Security Level 3) Step1: Press “Menu/OK”. The screen will show “Select Menu”. Step 2: Press “▲” or “▼” to select “System Menu”. Press “Menu/OK” again. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 7...
  • Page 8 Step 4: When the LCD screen shows “Select Menu”, press “Menu/OK”. Step 5: Press “▲” or “▼” to select “Set TDO User ID”. Step 6: Press “Menu/OK”. Step 7: Press “▲” or “▼” to select the User ID No. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 8...
  • Page 9 Within the next 5 minutes, a User must verify an enrolled fingerprint to unlock. The LCD will display the ID of the verified user: Note:  As a default TDO User, ID 01 can unlock without time delay. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 9...
  • Page 10 Lock Body will be locked until the end, and then , the LCD will show: 10.0 Set number of locks (Security Level 3) The ScanLogic D66 is capable of managing up to 4 Lock Bodies using a junction box (Junction box Part# CB11-1T4). The EntryPad must be programmed to recognize the additional Lock Bodies.
  • Page 11 10.2 Enable sequence (Security Level 3) The ScanLogic D66 allows you to set up sequencing when multiple locks are present. This means that you can program the system such that Lock #1 is known to be the Outer (or Main) door on the safe.
  • Page 12 Step 4: After the fingerprint is verified successfully, press “▲” or “▼” to select “Enable Dual Mode”. Press “Menu/OK. Step 5: The LCD will display the following message confirming that Dual Mode is now enabled: Note: SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 12...
  • Page 13 If all users are deleted, Dual Mode will be disabled automatically. 14.0 Set TimeLock (Security Level 3) The ScanLogic D66 has TimeLock functionality. With TimeLock, you can set a timetable during which users can open the safe lock system. Outside of this timetable, no users can enter their code to open the safe lock system.
  • Page 14 If “Y” is selected, users cannot unlock the controller during the specified holidays.  If “N” is selected, users can unlock during the holidays. Note: Holidays must be set each year. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 14...

  • Page 15: Wireless Communication

    In order to operate this function, the EntryPad must be set to communicate with the PC. Complete the following procedures to establish communication. Note: With the ScanLogic D66, the wireless feature allows for LIVE Audit Streaming where all activities at the safe lock are instantly reported to the software across the network.

  • Page 16: Wireless Connection

    Step 6: Then, press “▲” or “▼” to select the “Start Month” Step 7: Select the “Start Week” Step 8: Select the “Start Time” Step 9: Select the “End Month” Step 10: Select the “End Week” SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 16...
  • Page 17 This programming command is used in order to establish a hierarchy within the Manager (ID01)/Supervisor (ID02) code permissions. This programming feature can only be accessed through the System Menu, when logging in with the Super Code ID00. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 17...
  • Page 18 Step 3: Press “Menu/OK” and the LCD will show information about this safe lock system as follows:  The first line of the display will show the EntryPad Part Number: 0601A-D66 indicating this EntryPad is a ScanLogic D66  Capacity:30 Users - Total Number of Users ...
  • Page 19 123456. 23.1 Enroll the first fingerprint and its bound code (Security Level 2) Step 1: With the ScanLogic D66 set to Security Level 2, place your finger on the fingerprint scanner and hold. The first fingerprint with an ID01 is enrolled.
  • Page 20 Locks” and follow the steps in Section 10.1. 28.2 Enable Sequence (Level 1 & 2) Step 1: Press “Menu/OK”. The screen will show “Select Menu”. Step 2: Press “▲” or “▼” to select “System Menu”. Press “Menu/OK” again. SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 20...
  • Page 21 Step 3: After the fingerprint or code is verified successfully, press “▲” or “▼” to select “See Holiday” and follow the steps in Section 14.3. 32.0 Penalty Time - Wrong Code Entry Penalty (Level 1 & 2) See Section 15.0 33.0 Day light savings (Level 1 & 2) SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 21...
  • Page 22 The alpha numeric code must be deciphered using SECURAM’s Authorization Code Generator Software. The alpha-numeric code is entered into the software together with the encryption code. Through the software, these codes are deciphered to generate a One Time Use Reset Code.
  • Page 23 The default recovery Code is 999999. Step 4: The LCD screen will display an alpha-numeric number random key. Record this number and call an authorized SECURAM Recovery Center or SECURAM Tech Support at 1-805-988-8088. This code remains valid for a period of 20 minutes only.
  • Page 24 The ScanLogic D66 is a digital system and can be paired with any SECURAM safe lock body. If the lock body that you are pairing the ScanLogic D66 with has been paired previously with an analog system, for example the SafeLogic Basic (or any other SafeLogic Series EntryPad)or was set at the factory in the default Analog mode, the following Simple Mechanical Reset procedure must be followed.

  • Page 25: Hardware Testing

    As the access system on a fortified steel box – the safe -- it is imperative that safe locks can provide solid performance. SECURAM offers this unique menu selection that allows you to test the lock system performance through actual Cycle Testing.
  • Page 26 Duress Code Shift  Enable Online Mode  Dual Mode Group ID  Hardware Testing  Enable Dual Mode  Disable User  Enable User  Delete One User  Enroll New User SECURAM Systems Inc. ScanLogic D66 Operation Guide Page 26...

  • Page 27: Specifications

    LOW BATTERY ALERT: The display will alert low battery when battery ● voltage reaches 5.4±0.2V PLEASE REPLACE THE BATTERY IMMEDIATELY. When the display alerts low battery, ScanLogic D66 can only be operated ● to lock or unlock. Operations, such as enrolling, deleting or time-delay setting, are not permitted.
