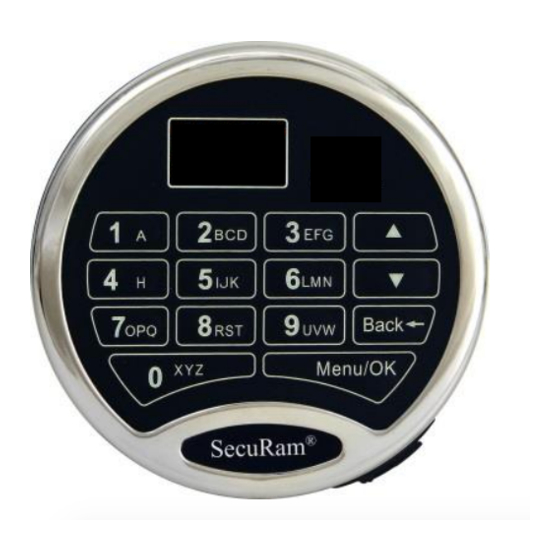

ProLogic B22 Operation Instructions
Document No: EC-1701A-B22-190502
Version No: V1.0
1.0 System Installation
1.1 System Components
1.2 Pairing the EntryPad with the Lock
1.3 Lock and EntryPad Installation
1.4 Installing Battery
1.5 Test Lock Operation
2.0 Lock Operation
2.1 Opening the Lock (Static Codes)
3.0 Set Date and Time
3.1 Set Clock Time
4.0 Code Management
4.1 Change Code
4.2 Enroll Manager 2
4.3 Enroll New User
4.4 Delete One User
4.5 Delete All Users
4.6 Delete Phone
5.0 Smartphone Management
5.1 Pair Phone
5.2 Delete Phone
6.0 System Identification
6.1 System Info
7.0 Lock Settings
7.1 Factory Reset (Firmware)
7.2 Show Audit Trail
7.3 Enable/Disable Vibration Sensor
7.4 Set Vibration Sensitivity
7.5 Set Battery Efficiency
8.0 Data Management
8.1 Encryption Key Set
9.0 Recovering the System – Reset to Default
9.1 Recovery Code Set
9.2 Recover System
9.3 Mechanical Reset
10.0 Shortcut Operations
10.1 Add User
10.2 Delete User
11.0 Menus
12.0 Specification
13.0 Precaution
14.0 Certification
15.0 Packing List
16.0 FCC Warning
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Securam ProLogic B22
Summary of Contents for Securam ProLogic B22
- Page 1 4.2 Enroll Manager 2 4.3 Enroll New User 4.4 Delete One User 4.5 Delete All Users 4.6 Delete Phone ProLogic B22 Operation Instructions 5.0 Smartphone Management Document No: EC-1701A-B22-190502 5.1 Pair Phone Version No: V1.0 5.2 Delete Phone 6.0 System Identification 6.1 System Info...
- Page 2 SecuRam safe lock systems can operate in two different modes depending upon the type of EntryPad being used with the lock body. The ProLogic B22 is a digital lock system and therefore the lock must also be programmed in digital mode. Both modes follow the same steps to reset / set which is done by following the steps detailed below: Step 1: Ensure the battery is connected to the Entry Pad.
- Page 3 *Note: In many cases, the Super Code (ID00) is changed from default and maintained by the safe manufacturer as a reset code for your security. If you have difficulty resetting the lock, please call SecuRam Tech Support at (805) 988-8088 or email techsupport@securamsys.com.
- Page 4 ProLogic B22 Operation Instructions 1.5 Testing the Lock Operation The ProLogic B22 comes with two factory default codes: • Super Code (ID00) is 111111 • Manager Code (ID01) is 123456 Enter one of the valid codes to verify the communication between the lock and EntryPad. The lock will open.
- Page 5 Step 5: Each of the elements of the date and time will flash when it is available to be set. Use the “▼”or “▲” to scroll to the correct value and Press OK to move to the next element. 4.0 Code Management The ProLogic B22 comes with two default codes: • Super Code (ID00) is 111111 •...
- Page 6 Step 6: Repeat the new 6 digit code. The New Code has now been saved and is available for use. 4.2 Enroll Manager 2 The ProLogic B22 can add a second Manager and one User, in addition to the default codes.
- Page 7 ProLogic B22 Operation Instructions Note: Manager Codes have full access to the programming menu. The User Code only has access to the change code menu option, and cannot modify any lock settings. Step 1: Press the Menu/OK button. Step 2: At “My Menu”, press the Menu/OK button Step 3: The display will prompt you to enter a code, enter a valid Super or Manager Code, and press Menu/OK.
- Page 8 ProLogic B22 Operation Instructions After Manager 2 User has been added, you can add a User. Step1: Press the Menu/OK button. Step 2: At “My Menu”, press the Menu/OK button Step 3: The display will prompt you to enter a code, enter a valid Super or Manager Code, and press Menu/OK.
- Page 9 ProLogic B22 Operation Instructions Step 3: The display will prompt you to enter a code, enter a valid Super or Manager Code, and press Menu/OK. Step 4: After entering a valid Super or Manager code, the screen will show “Users”.
- Page 10 Now all users are deleted. 5.0 Smartphone Management The ProLogic B22 uses a smartphone to allow for remote management and control. Download the SECURAM app on the App Store for iPhones or on the Google Play Store for Android. 5.1 Pair Phone This feature is used to pair a smartphone to the system.
- Page 11 ProLogic B22 Operation Instructions Step 4: After entering a valid Super or Manager code, the screen will show “Users”. Step 5: Scroll “▼”or “▲” to the menu selection “Pair Phone” and Press Menu/OK Follow the steps on the APP to complete the pairing option.
- Page 12 ProLogic B22 Operation Instructions Step 7: Press the Menu/OK button Note: If this operation is performed, the smartphone APP will not be able to open the lock. If the operation such as opening the lock through the APP is required, it needs to be paired again.
- Page 13 ProLogic B22 Operation Instructions Step 3: The display will prompt you to enter a code, enter a valid Super or Manager Code, and press Menu/OK. Step 4: After entering a valid Super or Manager code, scroll “▼”or “▲”to the menu selection “Lock Settings”...
- Page 14 Note: You can view the history log, up to 400, and overwrite the oldest record after the loop. 7.3 Enable/Disable Vibration Sensor The ProLogic B22 has a built-in vibration sensor. The vibration sensor will send a notification to the app in the event that the safe is being attacked. By default the Vibration sensor is enabled.
- Page 15 ProLogic B22 Operation Instructions Step 6: Press Menu/OK to select disable alarm. Screen will prompt: If the screen shows “Disable Vibration”: The Vibration Alert is enabled. When vibration is sensed, the display will show Vibration Alert and the buzzer will sound. A notification will be sent to the paired smartphone app.
- Page 16 ProLogic B22 Operation Instructions Step 6: Scroll “▼”or “▲”to the select the level of sensitivity and press Menu/OK. 7.5 Set Battery Efficiency There are two battery efficiency levels HI and LOW. When battery efficiency is set to HI, the system will conserve power consumption and the battery will last longer.
- Page 17 8.1 Encryption Key Set The ProLogic B22 sends and receives data to the lock in an encrypted form. This is a security measure to ensure that all data is protected. The Encryption Key is set during the manufacturing process with a default encryption key value.
- Page 18 Step 4: The LCD screen will display a key Code. Record this number and call an authorized SecuRam Recovery Center or SecuRam Tech Support at 1-805-988-8088 for an Authorization Code. (This code remains valid for a period of 20 minutes only).
- Page 19 Step 4: The LCD screen will display a key Code. Record this number and call an authorized SecuRam Recovery Center or SecuRam Tech Support at 1-805-988-8088 for an Authorization Code. (This code remains valid for a period of 20 minutes only).
- Page 20 Note: The pairing of the StrikeBolt and the ProLogic B22 EntryPad is not UL listed. If the lock body that you are pairing the ProLogic B22 with has been paired previously with an analog system, for example the SafeLogic Basic (or any other SafeLogic Series EntryPad)or was set at the factory...
- Page 21 ProLogic B22 Operation Instructions 10.0 Shortcut Operations 10.1 Add User: “Menu/OK” + “1” Step 1: Press the Menu/OK button Step 2: Press the number "1" button, the screen prompts: Step 3: Enter a valid Super or Manager Code and press Menu/OK...
- Page 22 Step 4: Press the “▼” or “▲” to select the user you want to delete, and finally press Menu/OK. Step 5: Press Menu/OK, the screen prompts: 11.0 Menus ProLogic B22 Menu Root Menu Level Sub Menu – Users ...
-
Page 23: Alkaline Battery
ProLogic B22 Operation Instructions Input 9 V Alkaline Battery Working Current 1.5A Standby Current 80 uA 1 Year Battery Lifetime (10 openings/day) User Number Android ****and above Support System IOS ****and above Wireless Standard WIFI 2.4 GHz Bluetooth 13. 0 Precaution Operating environment Keep away from strong magnetic appliances or objects when installing equipment. - Page 24 ProLogic B22 Operation Instructions (1) Lock Body (2) Shoulder bolt for Entrypad (3) Mounting Screw for Lock (1) Operation Manual *Battery NOT included *Smartphone NOT included 16.0 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 25: Warranty
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectriquesubi, mêmesi le brouillage est susceptible d'encompromettre le fonctionnement. 17.0 Warranty SecuRam Safe Lock systems are protected by a 12 month warranty against Manufacturer’s defects. This warranty is applicable for 12 months from the Date of Manufacture or 12 months from the Date of... - Page 26 Warranty upon installation or receipt of their safe lock. The Consumer Purchase Warranty Registration form is packaged with each product. 18.0 Contact us Manufacture: SecuRam Systems, Inc Address: 3325 Grande Vista Drive Newbury Park, CA 91320 Email: techsupport@securamsys.com Designed in CA, USA...
