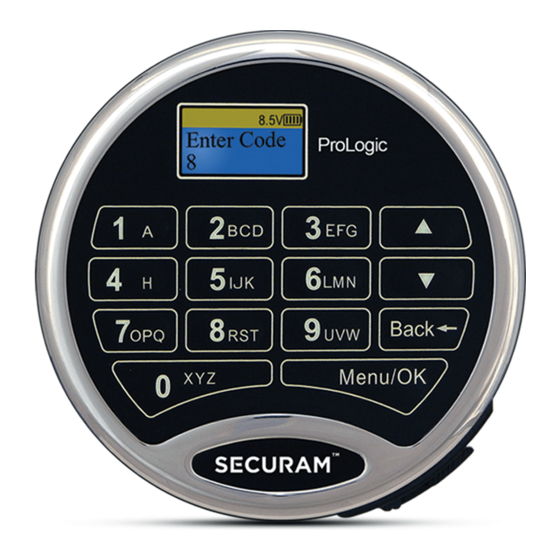

ProLogic L01
ProLogic L01 Operation Instructions
Document No: EC-0601A-L01-170330
Version No: V1.02
Operation Instructions
1.2 Pairing the EntryPad with the Lock(s)
1.4 Installing Battery
1.5 Test Lock Operation
2.3 Low Battery
3.6 Disable/Enable User
4.0 System Identification
4.1 System Info
8.0 System Testing
9.1 The ProLogic L01 Menus
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Securam ProLogic L01
Summary of Contents for Securam ProLogic L01
- Page 1 5.2 Disable Manager Mode 6.0 Data Management 6.1 Encryption Key Set 7.0 Recovering the System – Reset to Default 7.1 Recovery Code Set 7.2 Recover System 7.3 Mechanical Reset 8.0 System Testing 8.1 Cycle Testing 9.0 Menus 9.1 The ProLogic L01 Menus...
- Page 2 SecuRam safe lock systems can operate in two different modes depending upon the type of EntryPad being used with the lock body. The ProLogic L01 is a digital lock system and therefore the lock must also be programmed in digital mode. Converting the lock body to digital mode can be completed with the following the steps: Step 1: Ensure the battery is connected to the Entry Pad.
- Page 3 “Fail to Link with Lock”, repeat the reset procedure. Be sure to hold down the reset button through steps 5-7. If you have difficulty resetting the lock, please call SecuRam Tech Support at (805) 988-8088 or email info@securamsys.com.
- Page 4 ProLogic L01 Operation Instructions 1.4.1 Installing the Battery – Standard Battery Compartment (located on the back of the EntryPad) • Connect the battery terminal clip to the 9V battery. (Duracell or Energizer brands are recommended). • Position the battery so that the terminals are in the downward position and push the battery into the battery compartment.
- Page 5 ProLogic L01 Operation Instructions 1.5 Testing the Lock Operation The ProLogic L01 comes with two factory default codes: • Super Code (ID00) is 111111 • Manager Code (ID01) is 123456 Enter one of the valid codes to verify the communication between the lock and EntryPad. The lock will open.
- Page 6 ProLogic L01 Operation Instructions 2.2 Wrong Code Entry – Lock Out If an invalid code is entered, the following message will be displayed: If 4 invalid codes are entered consecutively, the safe lock will enter The display will then report the length of time remaining in the Lock Out period every 15 seconds until it...
- Page 7 It is strongly recommended that both these default codes are changed before the lock system is put into service. The ProLogic L01 has the capability to add one additional user code, in addition to the default codes. • ID00 is the Super Code – opens the lock, preforms programming and has the ability to turn on Manager Mode.
- Page 8 ProLogic L01 Operation Instructions Step 6: Now enter a 6 digit code Step 7: Repeat new code Step 8: System will verify that code has been saved. The new code is now enrolled and available to be used to open the lock 3.2 Change Code...
- Page 9 ProLogic L01 Operation Instructions Step 6: Enter the new 6 digit code. Step 7: Repeat the new code. The New Code has now been saved and is available for use. 3.3 Delete One User Step1: Press the Menu/OK button Step 2: Using the and , scroll to the System Menu and Press Menu/OK.
- Page 10 ProLogic L01 Operation Instructions Manager Code (ID01) is 123456 Note: Super Code will not be changed. Step1: Press the Menu/OK button Step 2: Using the and , scroll to the System Menu and Press Menu/OK. Step 3: The display will prompt you to enter a valid code. Enter either the Super Code (ID00) or the Manager Code (ID01).
- Page 11 ProLogic L01 Operation Instructions Step 3: The display will prompt you to enter a valid code. Enter either the Super Code (ID00) or the Manager Code (ID01). The “Select Menu” message will be displayed as follows: Step 4: Scroll and to the menu selection “Disable User” and Press OK Step 5: The system will ask to confirm the deletion.
- Page 12 This menu feature would be used to determine the type of safe lock system being used. Many of the SecuRam ProLogic EntryPads look the same, but the features sets and capabilities vary greatly depending upon the software being utilized. To determine the type of ProLogic Safe Lock system, follow this process: 4.1 System Info:...
- Page 13 ProLogic L01 Operation Instructions For example, the User code has been enabled all day, but now the Manager is closing the store for the night. The Manager enters the ID01 - this action does not open the safe but instead it toggles off (disables) the User Code - ID02.
- Page 14 6.1 Encryption Key Set The ProLogic L01 sends and receives data to the lock in an encrypted form. This is a security measure to ensure that all data is protected. The Encryption Key is set during the manufacturing process with a default encryption key value.
- Page 15 The alpha numeric code must be deciphered using SecuRam’s Authorization Code Generator Software. The alpha-numeric code is entered into the software together with the encryption code. Through the software, these codes are deciphered to generate a One Time Use Reset Code.
- Page 16 Step 6: The LCD screen will display a key Code. Record this number and call an authorized SecuRam Recovery Center or SecuRam Tech Support at 1-805-988-8088 for an Authorization Code. (This code remains valid for a period of 20 minutes only).
- Page 17 Code. The default recovery Code is 999999. Step 4: The LCD screen will display an alpha-numeric number random key. Record this number and call an authorized SecuRam Recovery Center or SecuRam Tech Support at 1-805-988-8088. This code remains valid for a period of 20 minutes only.
- Page 18 Note: The pairing of the StrikeBolt and the ProLogic L01 EntryPad is not UL listed. If the lock body that you are pairing the ProLogic L01 with has been paired previously with an analog system, for example the SafeLogic Basic (or any other SafeLogic Series EntryPad)or was set at the factory...
- Page 19 The ProLogic L01 has an onboard system test called “Cycle Testing” This is a very unique feature to SecuRam safe lock systems. As the access system on a fortified steel box – the safe -- it is imperative that safe locks can provide solid performance. SecuRam offers this unique menu selection that allows you to test the lock system performance through actual Cycle Testing.
- Page 20 9.0 Menus There are two menus on the ProLogic L01, the root menu and a sub-menu. The sub-menu is accessible by entering a valid code. The menu selections in the sub-menu change depending upon the level of the code entered. Super Code (ID00), and Manager Codes (ID01 and 02) have access to the all programming menus.
- Page 21 ProLogic L01 Operation Instructions Root Menu • Select Menu • System Menu • System Info • Recovery Code Set Recover System • Encryption Key Set Sub Menu – Super/Manager Codes • • Select Menu Encryption Key Set • • Cycle Testing Change Code System Info.
