SECURAM Touch
Model: SH-TB01
Doc.No.: SH-TB01-191011
Version No.: V1.00
Date：2019-10-11

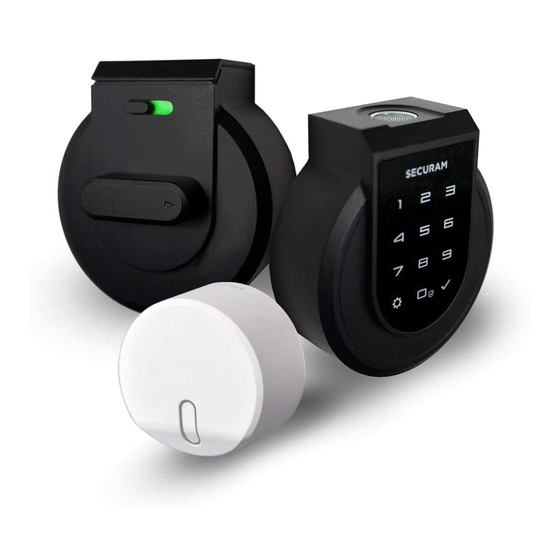

Congratulations on your purchase of the SECURAM Touch, the smart fingerprint deadbolt lock.
Quick Tour of the Touch
•
The Touch has 30 user capacity
o Each user can register 2 fingerprints
•
Users can be set as Owners or Visitors
o Owners can unlock using fingerprint or code
o Visitors can unlock using fingerprint or code, provided the visitor switch is set to green
•
The first user added is the Administrator
o Administrator can:
▪
▪
▪
Installation:
Download the app from the App Store or Google Play Store. Follow the instructions in the app to install
the SECURAM Touch.
To open the lock with the default Administrator code:
The default Administrator code is 123456.
Enter 123456 then button, to open the lock using the default Administrators code.
unlock using fingerprint or code
manage all users
access all programming menus
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Securam SH-TB01
Summary of Contents for Securam SH-TB01

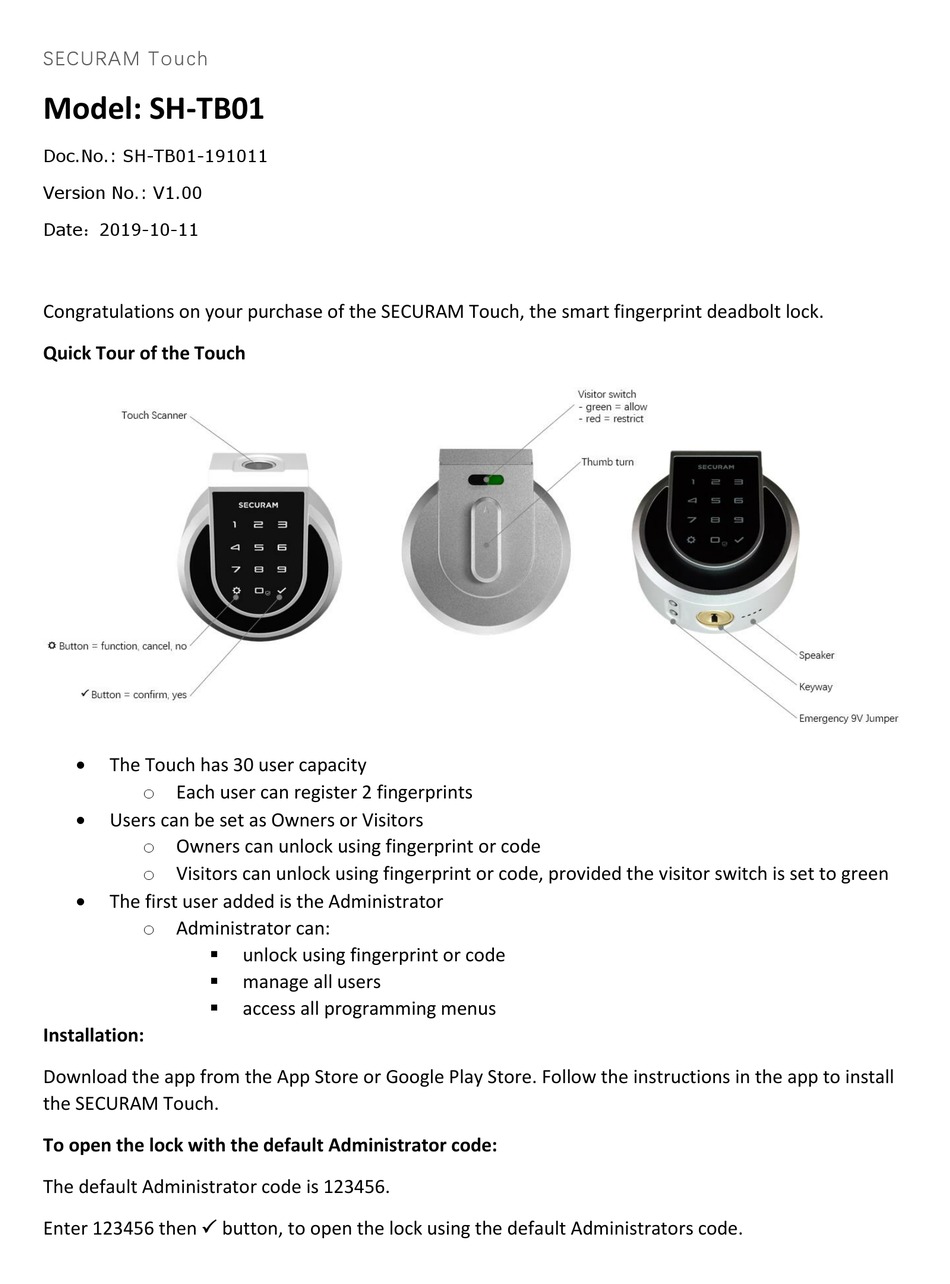

- Page 1 Model: SH-TB01 Doc.No.: SH-TB01-191011 Version No.: V1.00 Date：2019-10-11 Congratulations on your purchase of the SECURAM Touch, the smart fingerprint deadbolt lock. Quick Tour of the Touch • The Touch has 30 user capacity o Each user can register 2 fingerprints •...
- Page 2 Set Up: The easiest way to set up your SECURAM Touch is to follow the voice guidance. Press the Function button to begin: • Add User Press 2 - To add the first user – Administrator o Add User o Enter code –...
- Page 3 • Press • Press – cancel operation • Visitor(s) deleted successfully Note: Individual Owners/Visitors can be deleted in the SECURAM app. • Set Volume press 6 o Press 6 to adjust volume ▪ Press 6 - Volume High •...
- Page 4 Voice: Visitor access restricted Integrated door sensor The SECURAM Touch is equipped with an optional integrated door sensor to detect door open/closed position. To set up the door sensor, rotate the sensor arm from the back of interior assembly. You may need to remove the interior assembly from the door to rotate the sensor arm.
- Page 5 Low battery voltage: 4.6 to 5.0 volts Under a low battery condition, the SECURAM Touch will provide a low battery warning upon code or fingerprint entry. The lock will unlock with the voice warning “Low Battery”, and the low battery indicator flashes red.
- Page 6 (polarity does not matter) and enter code or verify fingerprint to unlock. High Security Key The SECURAM Touch is equipped with a mechanical override key to open the lock. Insert the key and turn to unlock. Strike Plate & Security Box (Optional) Inside the package you will find the Strike Plate and Security box.
- Page 7 Specifications Rated Voltage: DC 6V Working Temperature: -10 °C- 60°C 14 °F - 140 °F Working Humidity (max): <95% RH Password Length: 4-8 Digits 14. Safety Information Safety instructions for batteries with battery products: • Use Two CR2 type batteries; •...
- Page 8 Clean the device with a dry towel. 15. Warranty SECURAM Touch is protected by a 12-month warranty against Manufacturer’s defects. This warranty is applicable for 12 months from the Date of Manufacture or 12 months from the Date of Consumer Purchase, if the product has been registered for the Consumer Purchase Warranty.
- Page 9 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement.
