4. Install the speed dome to the mount. Please refer to Section 2.2.1 Wall Mount for installation details.
NOTE: Follow the same instructions described above for the short-arm wall mounting. For outdoor applications,
please adopt the water-proof measures. The short-arm wall mount is not recommended for outdoor applications.
2.5 In-Ceiling Mounting
2.5.1 IN-CEILING MOUNT APPLICATION
Before you start:
The in-ceiling mounting option is intended for indoor ceilings. The following are the mandatory preconditions for
mounting:
The height of the space above the ceiling must be more than 250mm.
n
The thickness of the ceiling must range from 5 to 40mm.
n
The ceiling must be strong enough to withstand more than 4 times the weight of the dome and its
n
accessories.
2.5.2 IN-CEILING MOUNT INSTALLATION
Before you start:
n The height of the space above the ceiling must be more than 250 mm.
The thickness of the ceiling must range from 5 mm to 40 mm.
n
The ceiling must be strong enough to withstand more than four times the weight of the speed dome and the
n
accessories.
Steps:
1. Rotate the bubble counterclockwise to separate it from the back box.
2. Remove the protective lens cover, foam, and sticker from the dome drive.
3. Install the memory card (optional).
4. Attach the bubble to the back box, and rotate clockwise to secure it.
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.12
Install the Wall Mount

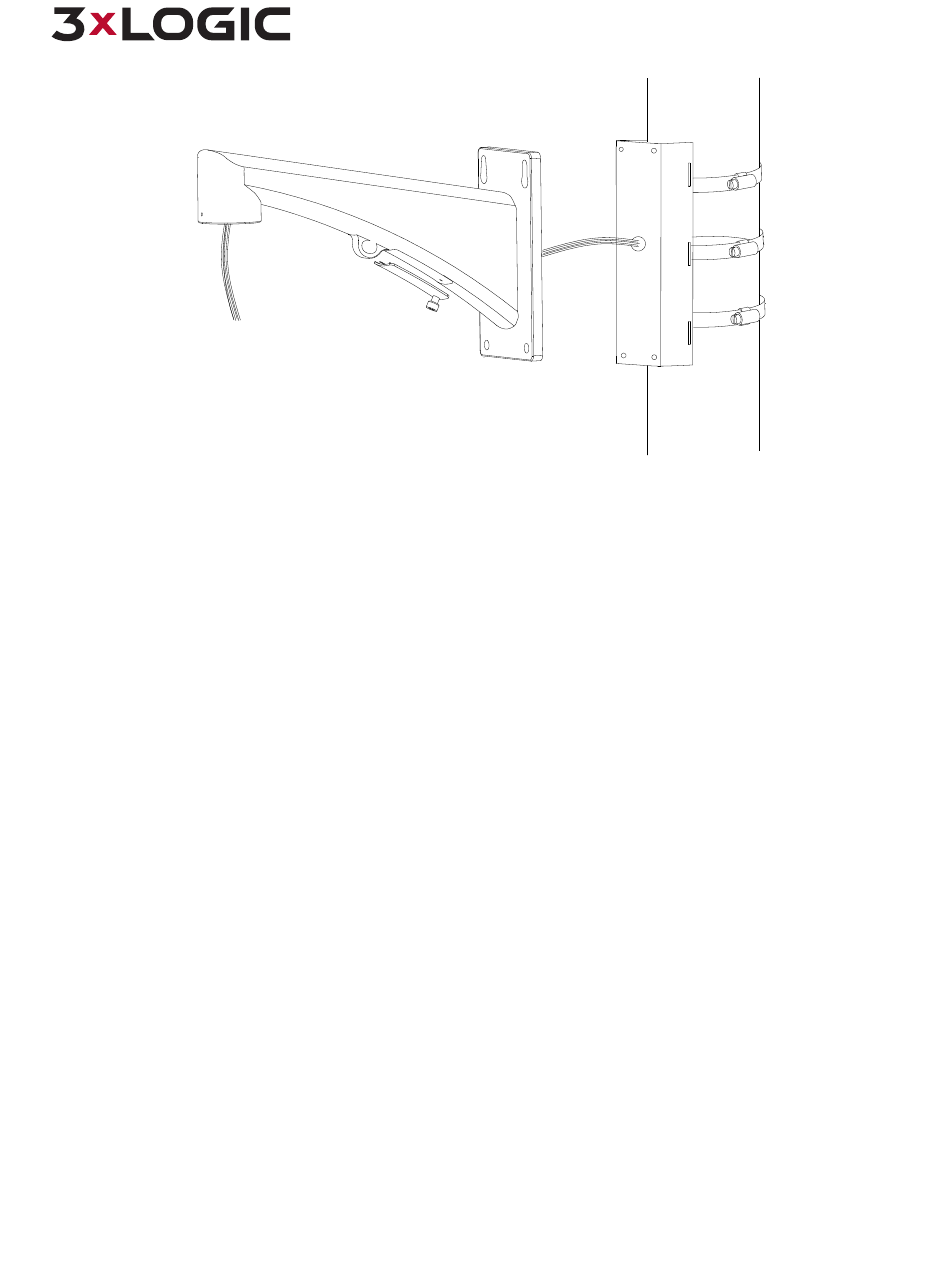

Figure 2-22
