Cable Hole
Route the cables for the speed dome. Align the bottom of the speed dome with the mounting base.
7).
Line up the direction of the arrow with the spring end of the mounting base.
8).
Push the speed dome upwards and then forwards in the direction of the arrow. When the speed dome is
9).
placed in position, the spring will automatically snap into the lock clip firmly as shown in Figure 2-37.
4. Remove the protective film on the bubble after the installation is finished.
Screw Holes

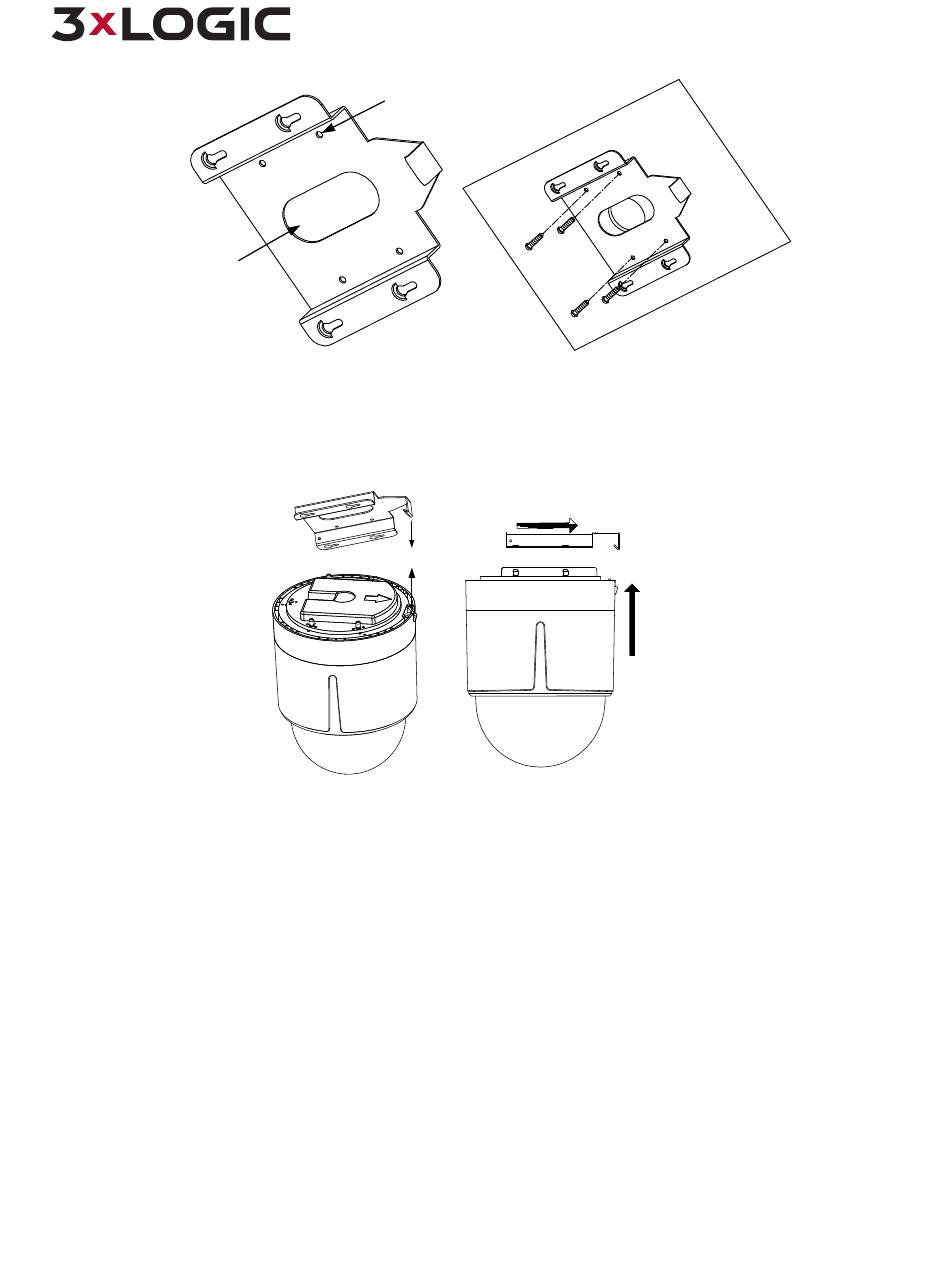

Secure the Mounting Base
Figure 2-36
Line up
Attach the Back Box to the Mounting Base
Figure 2-37
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.18
Push Forwards
Push Upwards
